Fl_Table Class Reference

A table of widgets or other content. More...

#include <Fl_Table.H>

Inheritance diagram for Fl_Table:
Fl_Group Fl_Widget Fl_Table_Row

Public Types

enum  TableContext {
  CONTEXT_NONE = 0 , CONTEXT_STARTPAGE = 0x01 , CONTEXT_ENDPAGE = 0x02 , CONTEXT_ROW_HEADER = 0x04 ,
  CONTEXT_COL_HEADER = 0x08 , CONTEXT_CELL = 0x10 , CONTEXT_TABLE = 0x20 , CONTEXT_RC_RESIZE = 0x40
}
 The context bit flags for Fl_Table related callbacks. More...


Public Member Functions

void add (Fl_Widget &wgt)

void add (Fl_Widget *wgt)

Fl_Widget *const * array ()

void begin ()

void callback (Fl_Widget *, void *)
 Callbacks will be called depending on the setting of Fl_Widget::when().

int callback_col ()
 Returns the current column the event occurred on.

TableContext callback_context ()
 Returns the current 'table context'.

int callback_row ()
 Returns the current row the event occurred on.

Fl_Widgetchild (int n) const
 Returns the child widget by an index.

int children () const
 Returns the number of children in the table.

virtual void clear ()
 Clears the table to zero rows (rows(0)), zero columns (cols(0)), and clears any widgets (table->clear()) that were added with begin()/end() or add()/insert()/etc.

int col_header ()
 Returns if column headers are enabled or not.

void col_header (int flag)
 Enable or disable column headers.

Fl_Color col_header_color ()
 Gets the color for column headers.

void col_header_color (Fl_Color val)
 Sets the color for column headers and redraws the table.

int col_header_height ()
 Gets the column header height.

void col_header_height (int height)
 Sets the height in pixels for column headers and redraws the table.

int col_position ()
 Returns the current column scroll position as a column number.

void col_position (int col)
 Sets the column scroll position to column 'col', and causes the screen to redraw.

int col_resize ()
 Returns if column resizing by the user is allowed.

void col_resize (int flag)
 Allows/disallows column resizing by the user.

int col_resize_min ()
 Returns the current column minimum resize value.

void col_resize_min (int val)
 Sets the current column minimum resize value.

int col_width (int col)
 Returns the current width of the specified column in pixels.

void col_width (int col, int width)
 Sets the width of the specified column in pixels, and the table is redrawn.

void col_width_all (int width)
 Convenience method to set the width of all columns to the same value, in pixels.

int cols ()
 Get the number of columns in the table.

virtual void cols (int val)
 Set the number of columns in the table and redraw.

void do_callback (TableContext context, int row, int col)

void draw (void)
 Draws the widget.

void end ()

int find (const Fl_Widget &wgt) const

int find (const Fl_Widget *wgt) const

 Fl_Table (int X, int Y, int W, int H, const char *l=0)
 The constructor for the Fl_Table.

void get_selection (int &row_top, int &col_left, int &row_bot, int &col_right)
 Gets the region of cells selected (highlighted).

void init_sizes ()

void insert (Fl_Widget &wgt, Fl_Widget *w2)

void insert (Fl_Widget &wgt, int n)

int is_interactive_resize ()
 Returns 1 if someone is interactively resizing a row or column.

int is_selected (int r, int c)
 See if the cell at row r and column c is selected.

int move_cursor (int R, int C)

int move_cursor (int R, int C, int shiftselect)

void remove (Fl_Widget &wgt)

void resize (int X, int Y, int W, int H)
 Changes the size of the Fl_Table, causing it to redraw.

int row_header ()
 Returns if row headers are enabled or not.

void row_header (int flag)
 Enables/disables showing the row headers.

Fl_Color row_header_color ()
 Returns the current row header color.

void row_header_color (Fl_Color val)
 Sets the row header color and causes the screen to redraw.

int row_header_width ()
 Returns the current row header width (in pixels).

void row_header_width (int width)
 Sets the row header width to n and causes the screen to redraw.

int row_height (int row)
 Returns the current height of the specified row as a value in pixels.

void row_height (int row, int height)
 Sets the height of the specified row in pixels, and the table is redrawn.

void row_height_all (int height)
 Convenience method to set the height of all rows to the same value, in pixels.

int row_position ()
 Returns the current row scroll position as a row number.

void row_position (int row)
 Sets the row scroll position to 'row', and causes the screen to redraw.

int row_resize ()
 Returns if row resizing by the user is allowed.

void row_resize (int flag)
 Allows/disallows row resizing by the user.

int row_resize_min ()
 Returns the current row minimum resize value.

void row_resize_min (int val)
 Sets the current row minimum resize value.

int rows ()
 Returns the number of rows in the table.

virtual void rows (int val)
 Sets the number of rows in the table, and the table is redrawn.

int scrollbar_size () const
 Gets the current size of the scrollbars' troughs, in pixels.

void scrollbar_size (int newSize)
 Sets the pixel size of the scrollbars' troughs to newSize, in pixels.

void set_selection (int row_top, int col_left, int row_bot, int col_right)
 Sets the region of cells to be selected (highlighted).

int tab_cell_nav () const
 Get state of table's 'Tab' key cell navigation flag.

void tab_cell_nav (int val)
 Flag to control if Tab navigates table cells or not.

void table_box (Fl_Boxtype val)
 Sets the kind of box drawn around the data table, the default being FL_NO_BOX.

Fl_Boxtype table_box (void)
 Returns the current box type used for the data table.

int top_row ()
 Returns the current top row shown in the table.

void top_row (int row)
 Sets which row should be at the top of the table, scrolling as necessary, and the table is redrawn.

void visible_cells (int &r1, int &r2, int &c1, int &c2)
 Returns the range of row and column numbers for all visible and partially visible cells in the table.

void when (Fl_When flags)
 The Fl_Widget::when() function is used to set a group of flags, determining when the widget callback is called:

 ~Fl_Table ()
 The destructor for the Fl_Table.

- Public Member Functions inherited from Fl_Group
Fl_Widget *& _ddfdesign_kludge ()
 This is for forms compatibility only.

void add (Fl_Widget &)
 The widget is removed from its current group (if any) and then added to the end of this group.

void add (Fl_Widget *o)
 See void Fl_Group::add(Fl_Widget &w)

void add_resizable (Fl_Widget &o)
 Adds a widget to the group and makes it the resizable widget.

Fl_Widget *const * array () const
 Returns a pointer to the array of children.

virtual Fl_Groupas_group ()
 Returns an Fl_Group pointer if this widget is an Fl_Group.

void begin ()
 Sets the current group so you can build the widget tree by just constructing the widgets.

Fl_Widgetchild (int n) const
 Returns array()[n].

int children () const
 Returns how many child widgets the group has.

void clear ()
 Deletes all child widgets from memory recursively.

unsigned int clip_children ()
 Returns the current clipping mode.

void clip_children (int c)
 Controls whether the group widget clips the drawing of child widgets to its bounding box.

void end ()
 Exactly the same as current(this->parent()).

int find (const Fl_Widget &o) const
 See int Fl_Group::find(const Fl_Widget *w) const.

int find (const Fl_Widget *) const
 Searches the child array for the widget and returns the index.

 Fl_Group (int, int, int, int, const char *=0)
 Creates a new Fl_Group widget using the given position, size, and label string.

void focus (Fl_Widget *W)

void forms_end ()
 This is for forms compatibility only.

void init_sizes ()
 Resets the internal array of widget sizes and positions.

void insert (Fl_Widget &, int i)
 The widget is removed from its current group (if any) and then inserted into this group.

void insert (Fl_Widget &o, Fl_Widget *before)
 This does insert(w, find(before)).

void remove (Fl_Widget &)
 Removes a widget from the group but does not delete it.

void remove (Fl_Widget *o)
 Removes the widget o from the group.

void remove (int index)
 Removes the widget at index from the group but does not delete it.

Fl_Widgetresizable () const
 See void Fl_Group::resizable(Fl_Widget *box)

void resizable (Fl_Widget &o)
 See void Fl_Group::resizable(Fl_Widget *box)

void resizable (Fl_Widget *o)
 The resizable widget defines the resizing box for the group.

virtual ~Fl_Group ()
 The destructor also deletes all the children.

- Public Member Functions inherited from Fl_Widget
void _clear_fullscreen ()

void _set_fullscreen ()

void activate ()
 Activates the widget.

unsigned int active () const
 Returns whether the widget is active.

int active_r () const
 Returns whether the widget and all of its parents are active.

Fl_Align align () const
 Gets the label alignment.

void align (Fl_Align alignment)
 Sets the label alignment.

long argument () const
 Gets the current user data (long) argument that is passed to the callback function.

void argument (long v)
 Sets the current user data (long) argument that is passed to the callback function.

virtual class Fl_Gl_Windowas_gl_window ()
 Returns an Fl_Gl_Window pointer if this widget is an Fl_Gl_Window.

virtual Fl_Windowas_window ()
 Returns an Fl_Window pointer if this widget is an Fl_Window.

Fl_Boxtype box () const
 Gets the box type of the widget.

void box (Fl_Boxtype new_box)
 Sets the box type for the widget.

Fl_Callback_p callback () const
 Gets the current callback function for the widget.

void callback (Fl_Callback *cb)
 Sets the current callback function for the widget.

void callback (Fl_Callback *cb, void *p)
 Sets the current callback function for the widget.

void callback (Fl_Callback0 *cb)
 Sets the current callback function for the widget.

void callback (Fl_Callback1 *cb, long p=0)
 Sets the current callback function for the widget.

unsigned int changed () const
 Checks if the widget value changed since the last callback.

void clear_active ()
 Marks the widget as inactive without sending events or changing focus.

void clear_changed ()
 Marks the value of the widget as unchanged.

void clear_damage (uchar c=0)
 Clears or sets the damage flags.

void clear_output ()
 Sets a widget to accept input.

void clear_visible ()
 Hides the widget.

void clear_visible_focus ()
 Disables keyboard focus navigation with this widget.

Fl_Color color () const
 Gets the background color of the widget.

void color (Fl_Color bg)
 Sets the background color of the widget.

void color (Fl_Color bg, Fl_Color sel)
 Sets the background and selection color of the widget.

Fl_Color color2 () const
 For back compatibility only.

void color2 (unsigned a)
 For back compatibility only.

int contains (const Fl_Widget *w) const
 Checks if w is a child of this widget.

void copy_label (const char *new_label)
 Sets the current label.

void copy_tooltip (const char *text)
 Sets the current tooltip text.

uchar damage () const
 Returns non-zero if draw() needs to be called.

void damage (uchar c)
 Sets the damage bits for the widget.

void damage (uchar c, int x, int y, int w, int h)
 Sets the damage bits for an area inside the widget.

int damage_resize (int, int, int, int)
 Internal use only.

void deactivate ()
 Deactivates the widget.

Fl_Imagedeimage ()
 Gets the image that is used as part of the widget label.

const Fl_Imagedeimage () const

void deimage (Fl_Image &img)
 Sets the image to use as part of the widget label.

void deimage (Fl_Image *img)
 Sets the image to use as part of the widget label.

void do_callback ()
 Calls the widget callback.

void do_callback (Fl_Widget *o, long arg)
 Calls the widget callback.

void do_callback (Fl_Widget *o, void *arg=0)
 Calls the widget callback.

void draw_label (int, int, int, int, Fl_Align) const
 Draws the label in an arbitrary bounding box with an arbitrary alignment.

int h () const
 Gets the widget height.

virtual void hide ()
 Makes a widget invisible.

Fl_Imageimage ()
 Gets the image that is used as part of the widget label.

const Fl_Imageimage () const

void image (Fl_Image &img)
 Sets the image to use as part of the widget label.

void image (Fl_Image *img)
 Sets the image to use as part of the widget label.

int inside (const Fl_Widget *wgt) const
 Checks if this widget is a child of wgt.

int is_label_copied () const
 Returns whether the current label was assigned with copy_label().

const char * label () const
 Gets the current label text.

void label (const char *text)
 Sets the current label pointer.

void label (Fl_Labeltype a, const char *b)
 Shortcut to set the label text and type in one call.

Fl_Color labelcolor () const
 Gets the label color.

void labelcolor (Fl_Color c)
 Sets the label color.

Fl_Font labelfont () const
 Gets the font to use.

void labelfont (Fl_Font f)
 Sets the font to use.

Fl_Fontsize labelsize () const
 Gets the font size in pixels.

void labelsize (Fl_Fontsize pix)
 Sets the font size in pixels.

Fl_Labeltype labeltype () const
 Gets the label type.

void labeltype (Fl_Labeltype a)
 Sets the label type.

void measure_label (int &ww, int &hh) const
 Sets width ww and height hh accordingly with the label size.

unsigned int output () const
 Returns if a widget is used for output only.

Fl_Groupparent () const
 Returns a pointer to the parent widget.

void parent (Fl_Group *p)
 Internal use only - "for hacks only".

void position (int X, int Y)
 Repositions the window or widget.

void redraw ()
 Schedules the drawing of the widget.

void redraw_label ()
 Schedules the drawing of the label.

Fl_Color selection_color () const
 Gets the selection color.

void selection_color (Fl_Color a)
 Sets the selection color.

void set_active ()
 Marks the widget as active without sending events or changing focus.

void set_changed ()
 Marks the value of the widget as changed.

void set_output ()
 Sets a widget to output only.

void set_visible ()
 Makes the widget visible.

void set_visible_focus ()
 Enables keyboard focus navigation with this widget.

virtual void show ()
 Makes a widget visible.

void size (int W, int H)
 Changes the size of the widget.

int take_focus ()
 Gives the widget the keyboard focus.

unsigned int takesevents () const
 Returns if the widget is able to take events.

int test_shortcut ()
 Returns true if the widget's label contains the entered '&x' shortcut.

const char * tooltip () const
 Gets the current tooltip text.

void tooltip (const char *text)
 Sets the current tooltip text.

Fl_Windowtop_window () const
 Returns a pointer to the top-level window for the widget.

Fl_Windowtop_window_offset (int &xoff, int &yoff) const
 Finds the x/y offset of the current widget relative to the top-level window.

uchar type () const
 Gets the widget type.

void type (uchar t)
 Sets the widget type.

int use_accents_menu ()
 Returns non zero if MAC_USE_ACCENTS_MENU flag is set, 0 otherwise.

void * user_data () const
 Gets the user data for this widget.

void user_data (void *v)
 Sets the user data for this widget.

unsigned int visible () const
 Returns whether a widget is visible.

unsigned int visible_focus ()
 Checks whether this widget has a visible focus.

void visible_focus (int v)
 Modifies keyboard focus navigation.

int visible_r () const
 Returns whether a widget and all its parents are visible.

int w () const
 Gets the widget width.

Fl_When when () const
 Returns the conditions under which the callback is called.

void when (uchar i)
 Sets the flags used to decide when a callback is called.

Fl_Windowwindow () const
 Returns a pointer to the nearest parent window up the widget hierarchy.

int x () const
 Gets the widget position in its window.

int y () const
 Gets the widget position in its window.

virtual ~Fl_Widget ()
 Destroys the widget.


Protected Types

enum  ResizeFlag {
  RESIZE_NONE = 0 , RESIZE_COL_LEFT = 1 , RESIZE_COL_RIGHT = 2 , RESIZE_ROW_ABOVE = 3 ,
  RESIZE_ROW_BELOW = 4
}

- Protected Types inherited from Fl_Widget
enum  {
  INACTIVE = 1<<0 , INVISIBLE = 1<<1 , OUTPUT = 1<<2 , NOBORDER = 1<<3 ,
  FORCE_POSITION = 1<<4 , NON_MODAL = 1<<5 , SHORTCUT_LABEL = 1<<6 , CHANGED = 1<<7 ,
  OVERRIDE = 1<<8 , VISIBLE_FOCUS = 1<<9 , COPIED_LABEL = 1<<10 , CLIP_CHILDREN = 1<<11 ,
  MENU_WINDOW = 1<<12 , TOOLTIP_WINDOW = 1<<13 , MODAL = 1<<14 , NO_OVERLAY = 1<<15 ,
  GROUP_RELATIVE = 1<<16 , COPIED_TOOLTIP = 1<<17 , FULLSCREEN = 1<<18 , MAC_USE_ACCENTS_MENU = 1<<19 ,
  USERFLAG3 = 1<<29 , USERFLAG2 = 1<<30 , USERFLAG1 = 1<<31
}
 flags possible values enumeration. More...


Protected Member Functions

void change_cursor (Fl_Cursor newcursor)

long col_scroll_position (int col)

TableContext cursor2rowcol (int &R, int &C, ResizeFlag &resizeflag)

void damage_zone (int r1, int c1, int r2, int c2, int r3=0, int c3=0)

virtual void draw_cell (TableContext context, int R=0, int C=0, int X=0, int Y=0, int W=0, int H=0)
 Subclass should override this method to handle drawing the cells.

int find_cell (TableContext context, int R, int C, int &X, int &Y, int &W, int &H)

void get_bounds (TableContext context, int &X, int &Y, int &W, int &H)

int handle (int e)
 Handles the specified event.

int is_fltk_container ()

void recalc_dimensions ()

void redraw_range (int topRow, int botRow, int leftCol, int rightCol)

int row_col_clamp (TableContext context, int &R, int &C)

long row_scroll_position (int row)

void table_resized ()

void table_scrolled ()

- Protected Member Functions inherited from Fl_Group
void draw_child (Fl_Widget &widget) const
 Forces a child to redraw.

void draw_children ()
 Draws all children of the group.

void draw_outside_label (const Fl_Widget &widget) const
 Parents normally call this to draw outside labels of child widgets.

int * sizes ()
 Returns the internal array of widget sizes and positions.

void update_child (Fl_Widget &widget) const
 Draws a child only if it needs it.

- Protected Member Functions inherited from Fl_Widget
void clear_flag (unsigned int c)
 Clears a flag in the flags mask.

void draw_backdrop () const
 If FL_ALIGN_IMAGE_BACKDROP is set, the image or deimage will be drawn.

void draw_box () const
 Draws the widget box according its box style.

void draw_box (Fl_Boxtype t, Fl_Color c) const
 Draws a box of type t, of color c at the widget's position and size.

void draw_box (Fl_Boxtype t, int x, int y, int w, int h, Fl_Color c) const
 Draws a box of type t, of color c at the position X,Y and size W,H.

void draw_focus ()
 draws a focus rectangle around the widget

void draw_focus (Fl_Boxtype t, int x, int y, int w, int h) const
 Draws a focus box for the widget at the given position and size.

void draw_label () const
 Draws the widget's label at the defined label position.

void draw_label (int, int, int, int) const
 Draws the label in an arbitrary bounding box.

 Fl_Widget (int x, int y, int w, int h, const char *label=0L)
 Creates a widget at the given position and size.

unsigned int flags () const
 Gets the widget flags mask.

void h (int v)
 Internal use only.

void set_flag (unsigned int c)
 Sets a flag in the flags mask.

void w (int v)
 Internal use only.

void x (int v)
 Internal use only.

void y (int v)
 Internal use only.


Static Protected Member Functions

static void scroll_cb (Fl_Widget *, void *)


Protected Attributes

int botrow

int current_col

int current_row

Fl_Scrollbarhscrollbar

int leftcol

int leftcol_scrollpos

int rightcol

int select_col

int select_row

Fl_Scrolltable

int table_h

int table_w

int tih

int tiw

int tix

int tiy

int toh

int toprow

int toprow_scrollpos

int tow

int tox

int toy

Fl_Scrollbarvscrollbar

int wih

int wiw

int wix

int wiy


Additional Inherited Members

- Static Public Member Functions inherited from Fl_Group
static Fl_Groupcurrent ()
 Returns the currently active group.

static void current (Fl_Group *g)
 Sets the current group.

- Static Public Member Functions inherited from Fl_Widget
static void default_callback (Fl_Widget *cb, void *d)
 The default callback for all widgets that don't set a callback.

static unsigned int label_shortcut (const char *t)
 Returns the Unicode value of the '&x' shortcut in a given text.

static int test_shortcut (const char *, const bool require_alt=false)
 Returns true if the given text t contains the entered '&x' shortcut.


Detailed Description

A table of widgets or other content.

This is the base class for table widgets.

To be useful it must be subclassed and several virtual functions defined. Normally applications use widgets derived from this widget, and do not use this widget directly; this widget is usually too low level to be used directly by applications.

This widget does not handle the data in the table. The draw_cell() method must be overridden by a subclass to manage drawing the contents of the cells.

This widget can be used in several ways:

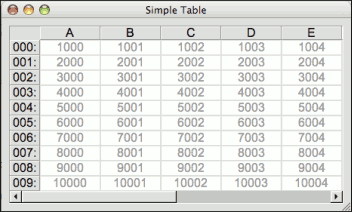

  • As a custom widget; see examples/table-simple.cxx and test/table.cxx. Very optimal for even extremely large tables.
  • As a table made up of a single FLTK widget instanced all over the table, simulating a numeric spreadsheet. See examples/table-spreadsheet.cxx and examples/table-spreadsheet-with-keyboard-nav.cxx. Optimal for large tables.

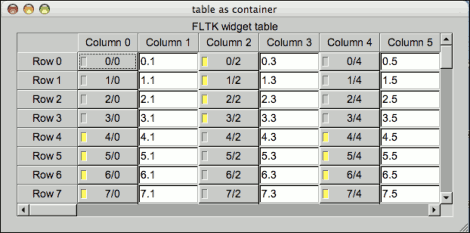

  • As a regular container of FLTK widgets, one widget per cell. See examples/table-as-container.cxx. Not recommended for large tables.

When acting as part of a custom widget, events on the cells and/or headings generate callbacks when they are clicked by the user. You control when events are generated based on the setting for Fl_Table::when().

When acting as a container for FLTK widgets, the FLTK widgets maintain themselves. Although the draw_cell() method must be overridden, its contents can be very simple. See the draw_cell() code in examples/table-simple.cxx.

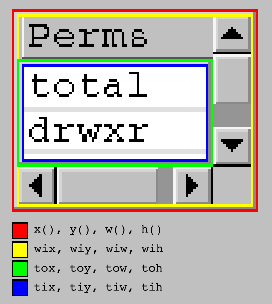

The following variables are available to classes deriving from Fl_Table:

x()/y()/w()/h()

Fl_Table widget's outer dimension. The outer edge of the border of the Fl_Table. (Red in the diagram above)

wix/wiy/wiw/wih

Fl_Table widget's inner dimension. The inner edge of the border of the Fl_Table. eg. if the Fl_Table's box() is FL_NO_BOX, these values are the same as x()/y()/w()/h(). (Yellow in the diagram above)

tox/toy/tow/toh

The table's outer dimension. The outer edge of the border around the cells, but inside the row/col headings and scrollbars. (Green in the diagram above)

tix/tiy/tiw/tih The table's inner dimension. The inner edge of the border around the cells, but inside the row/col headings and scrollbars. AKA the table's clip region. eg. if the table_box() is FL_NO_BOX, these values are the same as tox/toy/tow/toh. (Blue in the diagram above)

CORE DEVELOPERS

  • Greg Ercolano : 12/16/2002 - initial implementation 12/16/02. Fl_Table, Fl_Table_Row, docs.
  • Jean-Marc Lienher : 02/22/2004 - added keyboard nav + mouse selection, and ported Fl_Table into fltk-utf8-1.1.4

OTHER CONTRIBUTORS

  • Inspired by the Feb 2000 version of FLVW's Flvw_Table widget. Mucho thanks to those folks.
  • Mister Satan : 04/07/2003 - MinGW porting mods, and singleinput.cxx; a cool Fl_Input oriented spreadsheet example
  • Marek Paliwoda : 01/08/2003 - Porting mods for Borland
  • Ori Berger : 03/16/2006 - Optimizations for >500k rows/cols

LICENSE

Greg added the following license to the original distribution of Fl_Table. He kindly gave his permission to integrate Fl_Table and Fl_Table_Row into FLTK, allowing FLTK license to apply while his widgets are part of the library.

If used on its own, this is the license that applies:

Fl_Table License
December 16, 2002

The Fl_Table library and included programs are provided under the terms
of the GNU Library General Public License (LGPL) with the following
exceptions:

1. Modifications to the Fl_Table configure script, config
header file, and makefiles by themselves to support
a specific platform do not constitute a modified or
derivative work.

The authors do request that such modifications be
contributed to the Fl_Table project - send all
contributions to "erco at seriss dot com".

2. Widgets that are subclassed from Fl_Table widgets do not
constitute a derivative work.

3. Static linking of applications and widgets to the
Fl_Table library does not constitute a derivative work
and does not require the author to provide source
code for the application or widget, use the shared
Fl_Table libraries, or link their applications or
widgets against a user-supplied version of Fl_Table.

If you link the application or widget to a modified
version of Fl_Table, then the changes to Fl_Table must be
provided under the terms of the LGPL in sections
1, 2, and 4.

4. You do not have to provide a copy of the Fl_Table license
with programs that are linked to the Fl_Table library, nor
do you have to identify the Fl_Table license in your
program or documentation as required by section 6
of the LGPL.

However, programs must still identify their use of Fl_Table.
The following example statement can be included in user
documentation to satisfy this requirement:

[program/widget] is based in part on the work of
the Fl_Table project http://seriss.com/people/erco/fltk/Fl_Table/

Member Enumeration Documentation

◆ TableContext

The context bit flags for Fl_Table related callbacks.

Used in draw_cell(), callback(), etc.

Enumerator
CONTEXT_NONE

no known context

CONTEXT_STARTPAGE

before a page is redrawn

CONTEXT_ENDPAGE

after a page is redrawn

CONTEXT_ROW_HEADER

in the row header

CONTEXT_COL_HEADER

in the col header

CONTEXT_CELL

in one of the cells

CONTEXT_TABLE

in a dead zone of table

CONTEXT_RC_RESIZE

column or row being resized

Constructor & Destructor Documentation

◆ Fl_Table()

Fl_Table::Fl_Table ( int  X,
int  Y,
int  W,
int  H,
const char *  l = 0
)

The constructor for the Fl_Table.

This creates an empty table with no rows or columns, with headers and row/column resize behavior disabled.

◆ ~Fl_Table()

Fl_Table::~Fl_Table ( )

The destructor for the Fl_Table.

Destroys the table and its associated widgets.

Member Function Documentation

◆ callback()

void Fl_Table::callback ( Fl_Widget ,
void *
)

Callbacks will be called depending on the setting of Fl_Widget::when().

Callback functions should use the following functions to determine the context/row/column:

callback_row() and callback_col() will be set to the row and column number the event occurred on. If someone clicked on a row header, col will be 0.
If someone clicked on a column header, row will be 0.

callback_context() will return one of the following:

Fl_Table::CONTEXT_ROW_HEADER Someone clicked on a row header. Excludes resizing.
Fl_Table::CONTEXT_COL_HEADER Someone clicked on a column header. Excludes resizing.
Fl_Table::CONTEXT_CELL

Someone clicked on a cell.

To receive callbacks for FL_RELEASE events, you must set when(FL_WHEN_RELEASE).

Fl_Table::CONTEXT_RC_RESIZE

Someone is resizing rows/columns either interactively, or via the col_width() or row_height() API.

Use is_interactive_resize() to determine interactive resizing.

If resizing a column, R=0 and C=column being resized.

If resizing a row, C=0 and R=row being resized.

NOTE: To receive resize events, you must set when(FL_WHEN_CHANGED).

class MyTable : public Fl_Table {
[..]
private:
// Handle events that happen on the table
void event_callback2() {
int R = callback_row(), // row where event occurred
C = callback_col(); // column where event occurred
TableContext context = callback_context(); // which part of table
fprintf(stderr, "callback: Row=%d Col=%d Context=%d Event=%d\n",
R, C, (int)context, (int)Fl::event());
}
// Actual static callback
static void event_callback(Fl_Widget*, void* data) {
MyTable *o = (MyTable*)data;
o->event_callback2();
}
public:
// Constructor
MyTable() {
[..]
table.callback(&event_callback, (void*)this); // setup callback
table.when(FL_WHEN_CHANGED|FL_WHEN_RELEASE); // when to call it
}
};
@ FL_WHEN_CHANGED
Do the callback only when the widget value changes.
Definition Enumerations.H:439
@ FL_WHEN_RELEASE
Do the callback when the button or key is released and the value changes.
Definition Enumerations.H:441
A table of widgets or other content.
Definition Fl_Table.H:170
TableContext
The context bit flags for Fl_Table related callbacks.
Definition Fl_Table.H:177
Fl_Widget is the base class for all widgets in FLTK.
Definition Fl_Widget.H:101
static int event()
Returns the last event that was processed.
Definition Fl.H:600

◆ callback_col()

int Fl_Table::callback_col ( )
inline

Returns the current column the event occurred on.

This function should only be used from within the user's callback function.

◆ callback_context()

TableContext Fl_Table::callback_context ( )
inline

Returns the current 'table context'.

This function should only be used from within the user's callback function.

◆ callback_row()

int Fl_Table::callback_row ( )
inline

Returns the current row the event occurred on.

This function should only be used from within the user's callback function.

◆ child()

Fl_Widget * Fl_Table::child ( int  n) const
inline

Returns the child widget by an index.

When using the Fl_Table as a container for FLTK widgets, this method returns the widget pointer from the internal array of widgets in the container.

Typically used in loops, eg:

for ( int i=0; i<children(); i++ ) {
Fl_Widget *w = child(i);
[..]
}
int children() const
Returns the number of children in the table.
Definition Fl_Table.H:924
Fl_Widget * child(int n) const
Returns the child widget by an index.
Definition Fl_Table.H:912
int w() const
Gets the widget width.
Definition Fl_Widget.H:294

◆ children()

int Fl_Table::children ( ) const
inline

Returns the number of children in the table.

When using the Fl_Table as a container for FLTK widgets, this method returns how many child widgets the table has.

See also
child(int)

◆ clear()

virtual void Fl_Table::clear ( )
inlinevirtual

Clears the table to zero rows (rows(0)), zero columns (cols(0)), and clears any widgets (table->clear()) that were added with begin()/end() or add()/insert()/etc.

See also
rows(int), cols(int)

Reimplemented in Fl_Table_Row.

◆ col_header()

void Fl_Table::col_header ( int  flag)
inline

Enable or disable column headers.

If changed, the table is redrawn.

◆ col_resize()

void Fl_Table::col_resize ( int  flag)
inline

Allows/disallows column resizing by the user.

1=allow interactive resizing, 0=disallow interactive resizing. Since interactive resizing is done via the column headers, col_header() must also be enabled to allow resizing.

◆ col_resize_min()

void Fl_Table::col_resize_min ( int  val)
inline

Sets the current column minimum resize value.

This is used to prevent the user from interactively resizing any column to be smaller than 'pixels'. Must be a value >=1.

◆ col_width()

void Fl_Table::col_width ( int  col,
int  width
)

Sets the width of the specified column in pixels, and the table is redrawn.

callback() will be invoked with CONTEXT_RC_RESIZE if the column's width was actually changed, and when() is FL_WHEN_CHANGED.

◆ col_width_all()

void Fl_Table::col_width_all ( int  width)
inline

Convenience method to set the width of all columns to the same value, in pixels.

The screen is redrawn.

◆ draw()

void Fl_Table::draw ( void  )
virtual

Draws the widget.

Never call this function directly. FLTK will schedule redrawing whenever needed. If your widget must be redrawn as soon as possible, call redraw() instead.

Override this function to draw your own widgets.

If you ever need to call another widget's draw method from within your own draw() method, e.g. for an embedded scrollbar, you can do it (because draw() is virtual) like this:

Fl_Widget *s = &scroll; // scroll is an embedded Fl_Scrollbar
s->draw(); // calls Fl_Scrollbar::draw()

Reimplemented from Fl_Group.

◆ draw_cell()

virtual void Fl_Table::draw_cell ( TableContext  context,
int  R = 0,
int  C = 0,
int  X = 0,
int  Y = 0,
int  W = 0,
int  H = 0
)
inlineprotectedvirtual

Subclass should override this method to handle drawing the cells.

This method will be called whenever the table is redrawn, once per cell.

Only cells that are completely (or partially) visible will be told to draw.

context will be one of the following:

Fl_Table::CONTEXT_STARTPAGE

When table, or parts of the table, are about to be redrawn.
Use to initialize static data, such as font selections.

R/C will be zero,
X/Y/W/H will be the dimensions of the table's entire data area.
(Useful for locking a database before accessing; see also visible_cells())

Fl_Table::CONTEXT_ENDPAGE When table has completed being redrawn.
R/C will be zero, X/Y/W/H dimensions of table's data area.
(Useful for unlocking a database after accessing)
Fl_Table::CONTEXT_ROW_HEADER Whenever a row header cell needs to be drawn.
R will be the row number of the header being redrawn,
C will be zero,
X/Y/W/H will be the fltk drawing area of the row header in the window
Fl_Table::CONTEXT_COL_HEADER Whenever a column header cell needs to be drawn.
R will be zero,
C will be the column number of the header being redrawn,
X/Y/W/H will be the fltk drawing area of the column header in the window
Fl_Table::CONTEXT_CELL Whenever a data cell in the table needs to be drawn.
R/C will be the row/column of the cell to be drawn,
X/Y/W/H will be the fltk drawing area of the cell in the window
Fl_Table::CONTEXT_RC_RESIZE

Whenever table or row/column is resized or scrolled, either interactively or via col_width() or row_height().
R/C/X/Y/W/H will all be zero.

Useful for fltk containers that need to resize or move the child fltk widgets.

row and col will be set to the row and column number of the cell being drawn. In the case of row headers, col will be 0. In the case of column headers, row will be 0.

x/y/w/h will be the position and dimensions of where the cell should be drawn.

In the case of custom widgets, a minimal draw_cell() override might look like the following. With custom widgets it is up to the caller to handle drawing everything within the dimensions of the cell, including handling the selection color. Note all clipping must be handled as well; this allows drawing outside the dimensions of the cell if so desired for 'custom effects'.

// This is called whenever Fl_Table wants you to draw a cell
void MyTable::draw_cell(TableContext context, int R=0, int C=0, int X=0, int Y=0, int W=0, int H=0) {
static char s[40];
sprintf(s, "%d/%d", R, C); // text for each cell
switch ( context ) {
case CONTEXT_STARTPAGE: // Fl_Table telling us it's starting to draw page
return;
case CONTEXT_ROW_HEADER: // Fl_Table telling us to draw row/col headers
fl_push_clip(X, Y, W, H);
{
fl_draw_box(FL_THIN_UP_BOX, X, Y, W, H, color());
fl_color(FL_BLACK);
fl_draw(s, X, Y, W, H, FL_ALIGN_CENTER);
}
return;
case CONTEXT_CELL: // Fl_Table telling us to draw cells
fl_push_clip(X, Y, W, H);
{
// BG COLOR
fl_color( row_selected(R) ? selection_color() : FL_WHITE);
fl_rectf(X, Y, W, H);
// TEXT
fl_color(FL_BLACK);
fl_draw(s, X, Y, W, H, FL_ALIGN_CENTER);
// BORDER
fl_color(FL_LIGHT2);
fl_rect(X, Y, W, H);
}
return;
default:
return;
}
//NOTREACHED
}
const Fl_Align FL_ALIGN_CENTER
Align the label horizontally in the middle.
Definition Enumerations.H:828
const Fl_Font FL_HELVETICA
Helvetica (or Arial) normal (0)
Definition Enumerations.H:877
@ FL_THIN_UP_BOX
see figure 1
Definition Enumerations.H:609
@ CONTEXT_COL_HEADER
in the col header
Definition Fl_Table.H:182
@ CONTEXT_STARTPAGE
before a page is redrawn
Definition Fl_Table.H:179
@ CONTEXT_ROW_HEADER
in the row header
Definition Fl_Table.H:181
@ CONTEXT_CELL
in one of the cells
Definition Fl_Table.H:183
Fl_Color color() const
Gets the background color of the widget.
Definition Fl_Widget.H:378
Fl_Color selection_color() const
Gets the selection color.
Definition Fl_Widget.H:396
Fl_Font fl_font()
Returns the face set by the most recent call to fl_font().
Definition fl_draw.H:515
Fl_Color fl_color()
Returns the last fl_color() that was set.
Definition fl_draw.H:70
void fl_rectf(int x, int y, int w, int h)
Colors with current color a rectangle that exactly fills the given bounding box.
Definition fl_draw.H:206
FL_EXPORT void fl_draw_box(Fl_Boxtype, int x, int y, int w, int h, Fl_Color)
Draws a box using given type, position, size and color.
Definition fl_boxtype.cxx:436
void fl_rect(int x, int y, int w, int h)
Draws a 1-pixel border inside the given bounding box.
Definition fl_draw.H:201
void fl_pop_clip()
Restores the previous clip region.
Definition fl_draw.H:103
void fl_push_clip(int x, int y, int w, int h)
Intersects the current clip region with a rectangle and pushes this new region onto the stack.
Definition fl_draw.H:82
FL_EXPORT void fl_draw(const char *str, int x, int y)
Draws a nul-terminated UTF-8 string starting at the given x, y location.
Definition fl_font.cxx:70

◆ get_selection()

void Fl_Table::get_selection ( int &  row_top,
int &  col_left,
int &  row_bot,
int &  col_right
)

Gets the region of cells selected (highlighted).

Parameters
[in]row_topReturns the top row of selection area
[in]col_leftReturns the left column of selection area
[in]row_botReturns the bottom row of selection area
[in]col_rightReturns the right column of selection area

◆ handle()

int Fl_Table::handle ( int  event)
protectedvirtual

Handles the specified event.

You normally don't call this method directly, but instead let FLTK do it when the user interacts with the widget.

When implemented in a widget, this function must return 0 if the widget does not use the event or 1 otherwise.

Most of the time, you want to call the inherited handle() method in your overridden method so that you don't short-circuit events that you don't handle. In this last case you should return the callee retval.

Parameters
[in]eventthe kind of event received
Return values
0if the event was not used or understood
1if the event was used and can be deleted
See also
Fl_Event

Reimplemented from Fl_Group.

Reimplemented in Fl_Table_Row.

◆ is_interactive_resize()

int Fl_Table::is_interactive_resize ( )
inline

Returns 1 if someone is interactively resizing a row or column.

You can currently call this only from within your callback().

◆ is_selected()

int Fl_Table::is_selected ( int  r,
int  c
)

See if the cell at row r and column c is selected.

Returns
1 if the cell is selected, 0 if not.

◆ resize()

void Fl_Table::resize ( int  X,
int  Y,
int  W,
int  H
)
virtual

Changes the size of the Fl_Table, causing it to redraw.

Reimplemented from Fl_Group.

◆ row_header()

void Fl_Table::row_header ( int  flag)
inline

Enables/disables showing the row headers.

1=enabled, 0=disabled. If changed, the table is redrawn.

◆ row_height()

void Fl_Table::row_height ( int  row,
int  height
)

Sets the height of the specified row in pixels, and the table is redrawn.

callback() will be invoked with CONTEXT_RC_RESIZE if the row's height was actually changed, and when() is FL_WHEN_CHANGED.

◆ row_height_all()

void Fl_Table::row_height_all ( int  height)
inline

Convenience method to set the height of all rows to the same value, in pixels.

The screen is redrawn.

◆ row_resize()

void Fl_Table::row_resize ( int  flag)
inline

Allows/disallows row resizing by the user.

1=allow interactive resizing, 0=disallow interactive resizing. Since interactive resizing is done via the row headers, row_header() must also be enabled to allow resizing.

◆ row_resize_min()

void Fl_Table::row_resize_min ( int  val)
inline

Sets the current row minimum resize value.

This is used to prevent the user from interactively resizing any row to be smaller than 'pixels'. Must be a value >=1.

◆ rows()

void Fl_Table::rows ( int  val)
virtual

Sets the number of rows in the table, and the table is redrawn.

Reimplemented in Fl_Table_Row.

◆ scrollbar_size() [1/2]

int Fl_Table::scrollbar_size ( ) const
inline

Gets the current size of the scrollbars' troughs, in pixels.

If this value is zero (default), this widget will use the Fl::scrollbar_size() value as the scrollbar's width.

Returns
Scrollbar size in pixels, or 0 if the global Fl::scrollbar_size() is being used.
See also
Fl::scrollbar_size(int)

◆ scrollbar_size() [2/2]

void Fl_Table::scrollbar_size ( int  newSize)
inline

Sets the pixel size of the scrollbars' troughs to newSize, in pixels.

Normally you should not need this method, and should use Fl::scrollbar_size(int) instead to manage the size of ALL your widgets' scrollbars. This ensures your application has a consistent UI, is the default behavior, and is normally what you want.

Only use THIS method if you really need to override the global scrollbar size. The need for this should be rare.

Setting newSize to the special value of 0 causes the widget to track the global Fl::scrollbar_size(), which is the default.

Parameters
[in]newSizeSets the scrollbar size in pixels.
If 0 (default), scrollbar size tracks the global Fl::scrollbar_size()
See also
Fl::scrollbar_size()

◆ set_selection()

void Fl_Table::set_selection ( int  row_top,
int  col_left,
int  row_bot,
int  col_right
)

Sets the region of cells to be selected (highlighted).

So for instance, set_selection(0,0,0,0) selects the top/left cell in the table. And set_selection(0,0,1,1) selects the four cells in rows 0 and 1, column 0 and 1.

Parameters
[in]row_topTop row of selection area
[in]col_leftLeft column of selection area
[in]row_botBottom row of selection area
[in]col_rightRight column of selection area

◆ tab_cell_nav() [1/2]

int Fl_Table::tab_cell_nav ( ) const
inline

Get state of table's 'Tab' key cell navigation flag.

Returns
1 if Tab configured to navigate cells in table
0 to navigate widget focus (default)
See also
tab_cell_nav(int)

◆ tab_cell_nav() [2/2]

void Fl_Table::tab_cell_nav ( int  val)
inline

Flag to control if Tab navigates table cells or not.

If on, Tab key navigates table cells. If off, Tab key navigates fltk widget focus. (default)

As of fltk 1.3, the default behavior of the Tab key is to navigate focus off of the current widget, and on to the next one. But in some applications, it's useful for Tab to be used to navigate cells in the Fl_Table.

Parameters
[in]valIf val is 1, Tab key navigates cells in table, not fltk widgets.
If val is 0, Tab key will advance focus to the next fltk widget (default), and does not navigate cells in table.

◆ table_box()

void Fl_Table::table_box ( Fl_Boxtype  val)
inline

Sets the kind of box drawn around the data table, the default being FL_NO_BOX.

Changing this value will cause the table to redraw.

◆ top_row() [1/2]

int Fl_Table::top_row ( )
inline

Returns the current top row shown in the table.

This row may be partially obscured.

◆ top_row() [2/2]

void Fl_Table::top_row ( int  row)
inline

Sets which row should be at the top of the table, scrolling as necessary, and the table is redrawn.

If the table cannot be scrolled that far, it is scrolled as far as possible.

◆ visible_cells()

void Fl_Table::visible_cells ( int &  r1,
int &  r2,
int &  c1,
int &  c2
)
inline

Returns the range of row and column numbers for all visible and partially visible cells in the table.

These values can be used e.g. by your draw_cell() routine during CONTEXT_STARTPAGE to figure out what cells are about to be redrawn for the purposes of locking the data from a database before it's drawn.

leftcol rightcol
: :
toprow .. .-------------------.
| |
| V I S I B L E |
| |
| T A B L E |
| |
botrow .. '-------------------`

e.g. in a table where the visible rows are 5-20, and the visible columns are 100-120, then those variables would be:

  • toprow = 5
  • botrow = 20
  • leftcol = 100
  • rightcol = 120

◆ when()

void Fl_Table::when ( Fl_When  flags)

The Fl_Widget::when() function is used to set a group of flags, determining when the widget callback is called:

FL_WHEN_CHANGED callback() will be called when rows or columns are resized (interactively or via col_width() or row_height()), passing CONTEXT_RC_RESIZE via callback_context().
FL_WHEN_RELEASE callback() will be called during FL_RELEASE events, such as when someone releases a mouse button somewhere on the table.

The callback() routine is sent a TableContext that indicates the context the event occurred in, such as in a cell, in a header, or elsewhere on the table. When an event occurs in a cell or header, callback_row() and callback_col() can be used to determine the row and column. The callback can also look at the regular fltk event values (ie. Fl::event() and Fl::event_button()) to determine what kind of event is occurring.


The documentation for this class was generated from the following files:
