Fl_Input Class Reference

This is the FLTK text input widget. More...

#include <Fl_Input.H>

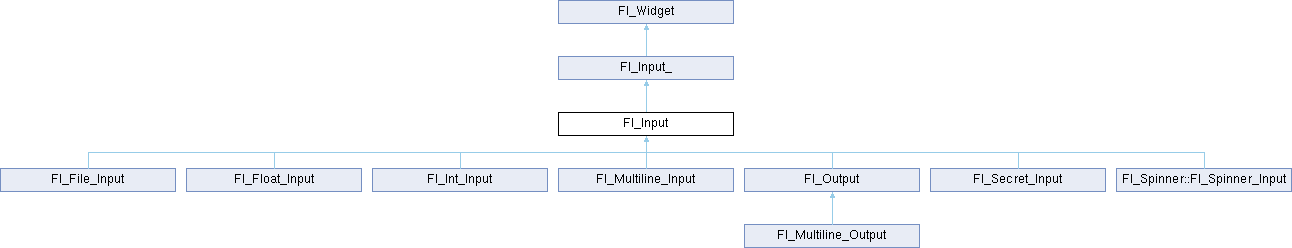

Inheritance diagram for Fl_Input:
Fl_Input_ Fl_Widget Fl_File_Input Fl_Float_Input Fl_Int_Input Fl_Multiline_Input Fl_Output Fl_Secret_Input Fl_Spinner::Fl_Spinner_Input Fl_Multiline_Output

Public Member Functions

 Fl_Input (int, int, int, int, const char *=0)
 Creates a new Fl_Input widget using the given position, size, and label string.

int handle (int) FL_OVERRIDE
 Handles the specified event.

- Public Member Functions inherited from Fl_Input_
int append (const char *t, int l=0, char keep_selection=0)
 Append text at the end.

bool can_redo () const
 Check if there is a redo action available.

bool can_undo () const
 Check if the last operation can be undone.

int copy (int clipboard)
 Put the current selection into the clipboard.

int copy_cuts ()
 Copies the yank buffer to the clipboard.

Fl_Color cursor_color () const
 Gets the color of the cursor.

void cursor_color (Fl_Color n)
 Sets the color of the cursor.

int cut ()
 Deletes the current selection.

int cut (int a, int b)
 Deletes all characters between index a and b.

int cut (int n)
 Deletes the next n bytes rounded to characters before or after the cursor.

double dvalue () const
 Returns the widget text interpreted as a floating point number.

 Fl_Input_ (int, int, int, int, const char *=0)
 Creates a new Fl_Input_ widget.

unsigned int index (int i) const
 Returns the character at index i.

int input_type () const
 Gets the input field type.

void input_type (int t)
 Sets the input field type.

int insert (const char *t, int l=0)
 Inserts text at the cursor position.

int insert_position () const
 Gets the position of the text cursor.

int insert_position (int p)
 Sets the cursor position and mark.

int insert_position (int p, int m)
 Sets the index for the cursor and mark.

int ivalue () const
 Returns the widget text interpreted as a signed integer.

int mark () const
 Gets the current selection mark.

int mark (int m)
 Sets the current selection mark.

int maximum_size () const
 Gets the maximum length of the input field in characters.

void maximum_size (int m)
 Sets the maximum length of the input field in characters.

int position () const

int position (int p)

int position (int p, int m)

int readonly () const
 Gets the read-only state of the input field.

void readonly (int b)
 Sets the read-only state of the input field.

int redo ()
 Redo previous undo operation.

int replace (int b, int e, const char *text, int ilen=0)
 Deletes text from b to e and inserts the new string text.

void resize (int, int, int, int) FL_OVERRIDE
 Changes the size of the widget.

int shortcut () const
 Return the shortcut key associated with this widget.

void shortcut (int s)
 Sets the shortcut key associated with this widget.

int size () const
 Returns the number of bytes in value().

void size (int W, int H)
 Sets the width and height of this widget.

int static_value (const char *)
 Changes the widget text.

int static_value (const char *, int)
 Changes the widget text.

int tab_nav () const
 Gets whether the Tab key causes focus navigation in multiline input fields or not.

void tab_nav (int val)
 Sets whether the Tab key does focus navigation, or inserts tab characters into Fl_Multiline_Input.

Fl_Color textcolor () const
 Gets the color of the text in the input field.

void textcolor (Fl_Color n)
 Sets the color of the text in the input field.

Fl_Font textfont () const
 Gets the font of the text in the input field.

void textfont (Fl_Font s)
 Sets the font of the text in the input field.

Fl_Fontsize textsize () const
 Gets the size of the text in the input field.

void textsize (Fl_Fontsize s)
 Sets the size of the text in the input field.

int undo ()
 Undoes previous changes to the text buffer.

const char * value () const
 Returns the text displayed in the widget.

int value (const char *)
 Changes the widget text.

int value (const char *, int)
 Changes the widget text.

int value (double value)
 Changes the widget text to a floating point number ("%g").

int value (int value)
 Changes the widget text to a signed integer number.

int wrap () const
 Gets the word wrapping state of the input field.

void wrap (int b)
 Sets the word wrapping state of the input field.

 ~Fl_Input_ ()
 Destroys the widget.

- Public Member Functions inherited from Fl_Widget
void _clear_fullscreen ()

void _set_fullscreen ()

void activate ()
 Activates the widget.

unsigned int active () const
 Returns whether the widget is active.

int active_r () const
 Returns whether the widget and all of its parents are active.

Fl_Align align () const
 Gets the label alignment.

void align (Fl_Align alignment)
 Sets the label alignment.

long argument () const
 Gets the current user data (long) argument that is passed to the callback function.

void argument (long v)
 Sets the current user data (long) argument that is passed to the callback function.

virtual class Fl_Gl_Windowas_gl_window ()
 Returns an Fl_Gl_Window pointer if this widget is an Fl_Gl_Window.

virtual class Fl_Gl_Window const * as_gl_window () const

virtual Fl_Groupas_group ()
 Returns an Fl_Group pointer if this widget is an Fl_Group.

virtual Fl_Group const * as_group () const

virtual Fl_Windowas_window ()
 Returns an Fl_Window pointer if this widget is an Fl_Window.

virtual Fl_Window const * as_window () const

void bind_deimage (Fl_Image *img)
 Sets the image to use as part of the widget label when in the inactive state.

void bind_deimage (int f)
 Bind the inactive image to the widget, so the widget will delete the image when it is no longer needed.

void bind_image (Fl_Image *img)
 Sets the image to use as part of the widget label when in the active state.

void bind_image (int f)
 Bind the image to the widget, so the widget will delete the image when it is no longer needed.

Fl_Boxtype box () const
 Gets the box type of the widget.

void box (Fl_Boxtype new_box)
 Sets the box type for the widget.

Fl_Callback_p callback () const
 Gets the current callback function for the widget.

void callback (Fl_Callback *cb)
 Sets the current callback function for the widget.

void callback (Fl_Callback *cb, Fl_Callback_User_Data *p, bool auto_free)
 Sets the current callback function and managed user data for the widget.

void callback (Fl_Callback *cb, void *p)
 Sets the current callback function and data for the widget.

void callback (Fl_Callback0 *cb)
 Sets the current callback function for the widget.

void callback (Fl_Callback1 *cb, long p=0)
 Sets the current callback function for the widget.

unsigned int changed () const
 Checks if the widget value changed since the last callback.

void clear_active ()
 Marks the widget as inactive without sending events or changing focus.

void clear_changed ()
 Marks the value of the widget as unchanged.

void clear_damage (uchar c=0)
 Clears or sets the damage flags.

void clear_output ()
 Sets a widget to accept input.

void clear_visible ()
 Hides the widget.

void clear_visible_focus ()
 Disables keyboard focus navigation with this widget.

Fl_Color color () const
 Gets the background color of the widget.

void color (Fl_Color bg)
 Sets the background color of the widget.

void color (Fl_Color bg, Fl_Color sel)
 Sets the background and selection color of the widget.

Fl_Color color2 () const
 For back compatibility only.

void color2 (unsigned a)
 For back compatibility only.

int contains (const Fl_Widget *w) const
 Checks if w is a child of this widget.

void copy_label (const char *new_label)
 Sets the current label.

void copy_tooltip (const char *text)
 Sets the current tooltip text.

uchar damage () const
 Returns non-zero if draw() needs to be called.

void damage (uchar c)
 Sets the damage bits for the widget.

void damage (uchar c, int x, int y, int w, int h)
 Sets the damage bits for an area inside the widget.

int damage_resize (int, int, int, int)
 Internal use only.

void deactivate ()
 Deactivates the widget.

Fl_Imagedeimage ()
 Gets the image that is used as part of the widget label when in the inactive state.

const Fl_Imagedeimage () const
 Gets the image that is used as part of the widget label when in the inactive state.

void deimage (Fl_Image &img)
 Sets the image to use as part of the widget label when in the inactive state.

void deimage (Fl_Image *img)
 Sets the image to use as part of the widget label when in the inactive state.

int deimage_bound () const
 Returns whether the inactive image is managed by the widget.

void do_callback (Fl_Callback_Reason reason=FL_REASON_UNKNOWN)
 Calls the widget callback function with default arguments.

void do_callback (Fl_Widget *widget, long arg, Fl_Callback_Reason reason=FL_REASON_UNKNOWN)
 Calls the widget callback function with arbitrary arguments.

void do_callback (Fl_Widget *widget, void *arg=0, Fl_Callback_Reason reason=FL_REASON_UNKNOWN)
 Calls the widget callback function with arbitrary arguments.

void draw_label (int, int, int, int, Fl_Align) const
 Draws the label in an arbitrary bounding box with an arbitrary alignment.

int h () const
 Gets the widget height.

virtual void hide ()
 Makes a widget invisible.

Fl_Imageimage ()
 Gets the image that is used as part of the widget label when in the active state.

const Fl_Imageimage () const
 Gets the image that is used as part of the widget label when in the active state.

void image (Fl_Image &img)
 Sets the image to use as part of the widget label when in the active state.

void image (Fl_Image *img)
 Sets the image to use as part of the widget label when in the active state.

int image_bound () const
 Returns whether the image is managed by the widget.

int inside (const Fl_Widget *wgt) const
 Checks if this widget is a child of wgt.

int is_label_copied () const
 Returns whether the current label was assigned with copy_label().

const char * label () const
 Gets the current label text.

void label (const char *text)
 Sets the current label pointer.

void label (Fl_Labeltype a, const char *b)
 Shortcut to set the label text and type in one call.

Fl_Color labelcolor () const
 Gets the label color.

void labelcolor (Fl_Color c)
 Sets the label color.

Fl_Font labelfont () const
 Gets the font to use.

void labelfont (Fl_Font f)
 Sets the font to use.

Fl_Fontsize labelsize () const
 Gets the font size in pixels.

void labelsize (Fl_Fontsize pix)
 Sets the font size in pixels.

Fl_Labeltype labeltype () const
 Gets the label type.

void labeltype (Fl_Labeltype a)
 Sets the label type.

void measure_label (int &ww, int &hh) const
 Sets width ww and height hh accordingly with the label size.

bool needs_keyboard () const
 Returns whether this widget needs a keyboard.

void needs_keyboard (bool needs)
 Sets whether this widget needs a keyboard.

unsigned int output () const
 Returns if a widget is used for output only.

Fl_Groupparent () const
 Returns a pointer to the parent widget.

void parent (Fl_Group *p)
 Internal use only - "for hacks only".

void position (int X, int Y)
 Repositions the window or widget.

void redraw ()
 Schedules the drawing of the widget.

void redraw_label ()
 Schedules the drawing of the label.

Fl_Color selection_color () const
 Gets the selection color.

void selection_color (Fl_Color a)
 Sets the selection color.

void set_active ()
 Marks the widget as active without sending events or changing focus.

void set_changed ()
 Marks the value of the widget as changed.

void set_output ()
 Sets a widget to output only.

void set_visible ()
 Makes the widget visible.

void set_visible_focus ()
 Enables keyboard focus navigation with this widget.

int shortcut_label () const
 Returns whether the widget's label uses '&' to indicate shortcuts.

void shortcut_label (int value)
 Sets whether the widget's label uses '&' to indicate shortcuts.

virtual void show ()
 Makes a widget visible.

void size (int W, int H)
 Changes the size of the widget.

int take_focus ()
 Gives the widget the keyboard focus.

unsigned int takesevents () const
 Returns if the widget is able to take events.

int test_shortcut ()
 Returns true if the widget's label contains the entered '&x' shortcut.

const char * tooltip () const
 Gets the current tooltip text.

void tooltip (const char *text)
 Sets the current tooltip text.

Fl_Windowtop_window () const
 Returns a pointer to the top-level window for the widget.

Fl_Windowtop_window_offset (int &xoff, int &yoff) const
 Finds the x/y offset of the current widget relative to the top-level window.

uchar type () const
 Gets the widget type.

void type (uchar t)
 Sets the widget type.

int use_accents_menu ()
 Returns non zero if MAC_USE_ACCENTS_MENU flag is set, 0 otherwise.

void * user_data () const
 Gets the user data for this widget.

void user_data (Fl_Callback_User_Data *v, bool auto_free)
 Sets the user data for this widget.

void user_data (void *v)
 Sets the user data for this widget.

unsigned int visible () const
 Returns whether a widget is visible.

unsigned int visible_focus () const
 Checks whether this widget has a visible focus.

void visible_focus (int v)
 Modifies keyboard focus navigation.

int visible_r () const
 Returns whether a widget and all its parents are visible.

int w () const
 Gets the widget width.

Fl_When when () const
 Returns the conditions under which the callback is called.

void when (uchar i)
 Sets the flags used to decide when a callback is called.

Fl_Windowwindow () const
 Returns a pointer to the nearest parent window up the widget hierarchy.

int x () const
 Gets the widget position in its window.

int y () const
 Gets the widget position in its window.

virtual ~Fl_Widget ()
 Destroys the widget.


Static Public Attributes

static const char * copy_menu_text = "Copy"
 [this text may be customized at run-time]

static const char * cut_menu_text = "Cut"
 [this text may be customized at run-time]

static const char * paste_menu_text = "Paste"
 [this text may be customized at run-time]


Protected Member Functions

void draw () FL_OVERRIDE
 Draws the widget.

int handle_key ()
 Handles a keystroke.

int handle_rmb ()
 Handle right mouse button down events.

- Protected Member Functions inherited from Fl_Input_
int apply_undo ()
 Apply the current undo/redo operation.

void drawtext (int, int, int, int)
 Draws the text in the passed bounding box.

void drawtext (int, int, int, int, bool draw_active)
 Draws the text in the passed bounding box.

void handle_mouse (int, int, int, int, int keepmark=0)
 Handles mouse clicks and mouse moves.

int handletext (int e, int, int, int, int)
 Handles all kinds of text field related events.

int line_end (int i) const
 Finds the end of a line.

int line_start (int i) const
 Finds the start of a line.

int linesPerPage ()

void maybe_do_callback (Fl_Callback_Reason reason=FL_REASON_UNKNOWN)

int up_down_position (int, int keepmark=0)
 Moves the cursor to the column given by up_down_pos.

int word_end (int i) const
 Finds the end of a word.

int word_start (int i) const
 Finds the start of a word.

int xscroll () const

int yscroll () const

void yscroll (int yOffset)

- Protected Member Functions inherited from Fl_Widget
void clear_flag (unsigned int c)
 Clears a flag in the flags mask.

void draw_backdrop () const
 If FL_ALIGN_IMAGE_BACKDROP is set, the image or deimage will be drawn.

void draw_box () const
 Draws the widget box according its box style.

void draw_box (Fl_Boxtype t, Fl_Color c) const
 Draws a box of type t, of color c at the widget's position and size.

void draw_box (Fl_Boxtype t, int x, int y, int w, int h, Fl_Color c) const
 Draws a box of type t, of color c at the position X,Y and size W,H.

void draw_focus () const
 Draws a focus rectangle around the widget.

void draw_focus (Fl_Boxtype t, int X, int Y, int W, int H) const
 Draws a focus rectangle around the widget.

void draw_focus (Fl_Boxtype t, int x, int y, int w, int h, Fl_Color bg) const
 Draws a focus box for the widget at the given position and size.

void draw_label () const
 Draws the widget's label at the defined label position.

void draw_label (int, int, int, int) const
 Draws the label in an arbitrary bounding box.

 Fl_Widget (int x, int y, int w, int h, const char *label=0L)
 Creates a widget at the given position and size.

unsigned int flags () const
 Gets the widget flags mask.

void h (int v)
 Internal use only.

void set_flag (unsigned int c)
 Sets a flag in the flags mask.

void w (int v)
 Internal use only.

void x (int v)
 Internal use only.

void y (int v)
 Internal use only.


Friends

class Fl_Cocoa_Screen_Driver

class Fl_Screen_Driver


Additional Inherited Members

- Static Public Member Functions inherited from Fl_Widget
static void default_callback (Fl_Widget *widget, void *data)
 The default callback for all widgets that don't set a callback.

static unsigned int label_shortcut (const char *t)
 Returns the Unicode value of the '&x' shortcut in a given text.

static int test_shortcut (const char *, const bool require_alt=false)
 Returns true if the given text t contains the entered '&x' shortcut.

- Protected Types inherited from Fl_Widget
enum  {
  INACTIVE = 1<<0 , INVISIBLE = 1<<1 , OUTPUT = 1<<2 , NOBORDER = 1<<3 ,
  FORCE_POSITION = 1<<4 , NON_MODAL = 1<<5 , SHORTCUT_LABEL = 1<<6 , CHANGED = 1<<7 ,
  OVERRIDE = 1<<8 , VISIBLE_FOCUS = 1<<9 , COPIED_LABEL = 1<<10 , CLIP_CHILDREN = 1<<11 ,
  MENU_WINDOW = 1<<12 , TOOLTIP_WINDOW = 1<<13 , MODAL = 1<<14 , NO_OVERLAY = 1<<15 ,
  GROUP_RELATIVE = 1<<16 , COPIED_TOOLTIP = 1<<17 , FULLSCREEN = 1<<18 , MAC_USE_ACCENTS_MENU = 1<<19 ,
  NEEDS_KEYBOARD = 1<<20 , IMAGE_BOUND = 1<<21 , DEIMAGE_BOUND = 1<<22 , AUTO_DELETE_USER_DATA = 1<<23 ,
  MAXIMIZED = 1<<24 , POPUP = 1<<25 , USERFLAG3 = 1<<29 , USERFLAG2 = 1<<30 ,
  USERFLAG1 = 1<<31
}
 flags possible values enumeration. More...


Detailed Description

This is the FLTK text input widget.

It displays a single line of text and lets the user edit it. Normally it is drawn with an inset box and a white background. The text may contain any characters, and will correctly display any UTF text, using ^X notation for unprintable control characters. It assumes the font can draw any characters of the used scripts, which is true for standard fonts under Windows and Mac OS X. Characters can be input using the keyboard or the character palette/map. Character composition is done using dead keys and/or a compose key as defined by the operating system.

Keyboard and mouse bindings.
Mouse button 1 Moves the cursor to this point. Drag selects characters. Double click selects words. Triple click selects all line. Shift+click extends the selection. When you select text it is automatically copied to the selection buffer.
Mouse button 2 Insert the selection buffer at the point clicked. You can also select a region and replace it with the selection buffer by selecting the region with mouse button 2.
Mouse button 3 Currently acts like button 1.
Backspace Deletes one character to the left, or deletes the selected region.
Delete Deletes one character to the right, or deletes the selected region. Combine with Shift for equivalent of ^X (copy+cut).
Enter May cause the callback, see when().
Platform specific keyboard bindings.
Windows/Linux Mac

Function

^A Command-A

Selects all text in the widget.

^C Command-C

Copy the current selection to the clipboard.

^I ^I

Insert a tab.

^J ^J

Insert a Line Feed.
(Similar to literal 'Enter' character)

^L ^L

Insert a Form Feed.

^M ^M

Insert a Carriage Return.

^V,
Shift-Insert
Command-V

Paste the clipboard.
(Macs keyboards don't have "Insert" keys, but if they did, Shift-Insert would work)

^X,
Shift-Delete
Command-X,
Shift-Delete

Cut.
Copy the selection to the clipboard and delete it. (If there's no selection, Shift-Delete acts like Delete)

^Z Command-Z

Undo.
This is a single-level undo mechanism, but all adjacent deletions and insertions are concatenated into a single "undo". Often this will undo a lot more than you expected.

Shift-^Z Shift-Command-Z

Redo.
Currently same behavior as ^Z. Reserved for future multilevel undo/redo.

Arrow Keys Arrow Keys

Standard cursor movement.
Can be combined with Shift to extend selection.

Home Command-Up,
Command-Left

Move to start of line.
Can be combined with Shift to extend selection.

End Command-Down,
Command-Right

Move to end of line.
Can be combined with Shift to extend selection.

Ctrl-Home Command-Up,
Command-PgUp,
Ctrl-Left

Move to top of document/field.
In single line input, moves to start of line. In multiline input, moves to start of top line. Can be combined with Shift to extend selection.

Ctrl-End Command-End,
Command-PgDn,
Ctrl-Right

Move to bottom of document/field.
In single line input, moves to end of line. In multiline input, moves to end of last line. Can be combined with Shift to extend selection.

Ctrl-Left Alt-Left

Word left.
Can be combined with Shift to extend selection.

Ctrl-Right Alt-Right

Word right.
Can be combined with Shift to extend selection.

Ctrl-Backspace Alt-Backspace

Delete word left.

Ctrl-Delete Alt-Delete

Delete word right.

Constructor & Destructor Documentation

◆ Fl_Input()

Fl_Input::Fl_Input ( int  X,
int  Y,
int  W,
int  H,
const char *  l = 0
)

Creates a new Fl_Input widget using the given position, size, and label string.

The default boxtype is FL_DOWN_BOX.

Member Function Documentation

◆ draw()

void Fl_Input::draw ( )
protectedvirtual

Draws the widget.

Never call this function directly. FLTK will schedule redrawing whenever needed. If your widget must be redrawn as soon as possible, call redraw() instead.

Override this function to draw your own widgets.

If you ever need to call another widget's draw method from within your own draw() method, e.g. for an embedded scrollbar, you can do it (because draw() is virtual) like this:

Fl_Widget *s = &scrollbar; // scrollbar is an embedded Fl_Scrollbar
s->draw(); // calls Fl_Scrollbar::draw()
Fl_Widget is the base class for all widgets in FLTK.
Definition Fl_Widget.H:104

Implements Fl_Widget.

◆ handle()

int Fl_Input::handle ( int  event)
virtual

Handles the specified event.

You normally don't call this method directly, but instead let FLTK do it when the user interacts with the widget.

When implemented in a widget, this function must return 0 if the widget does not use the event or 1 otherwise.

Most of the time, you want to call the inherited handle() method in your overridden method so that you don't short-circuit events that you don't handle. In this last case you should return the callee retval.

One exception to the rule in the previous paragraph is if you really want to override the behavior of the base class. This requires knowledge of the details of the inherited class.

In rare cases you may want to return 1 from your handle() method although you don't really handle the event. The effect would be to filter event processing, for instance if you want to dismiss non-numeric characters (keypresses) in a numeric input widget. You may "ring the bell" or show another visual indication or drop the event silently. In such a case you must not call the handle() method of the base class and tell FLTK that you consumed the event by returning 1 even if you didn't do anything with it.

Parameters
[in]eventthe kind of event received
Return values
0if the event was not used or understood
1if the event was used and can be deleted
See also
Fl_Event

Reimplemented from Fl_Widget.

Reimplemented in Fl_Spinner::Fl_Spinner_Input, and Fl_Secret_Input.

◆ handle_key()

int Fl_Input::handle_key ( )
protected

Handles a keystroke.

This protected method handles a keystroke in an Fl_Input or derived class. It handles compose key sequences and can also be used e.g. in Fl_Multiline_Input, Fl_Float_Input and several more derived classes.

The details are way too complicated to be documented here and can be changed as required. If in doubt, please consult the source code.

Returns
1 if the keystroke is handled by us, 0 if not.

◆ handle_rmb()

int Fl_Input::handle_rmb ( )
protected

Handle right mouse button down events.

Returns
1

The documentation for this class was generated from the following files:
