This is the base class for browsers. More...

#include <Fl_Browser_.H>

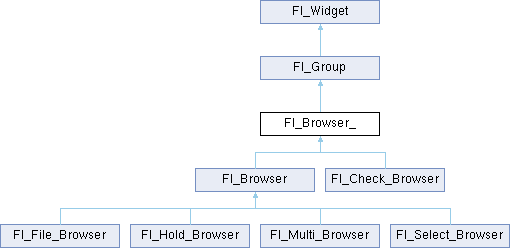

Inheritance diagram for Fl_Browser_:

Public Types
enum	{ HORIZONTAL = 1 , VERTICAL = 2 , BOTH = 3 , ALWAYS_ON = 4 , HORIZONTAL_ALWAYS = 5 , VERTICAL_ALWAYS = 6 , BOTH_ALWAYS = 7 }
	Values for has_scrollbar(). More...

Public Member Functions
int	deselect (int docallbacks=0)
	Deselects all items in the list and returns 1 if the state changed or 0 if it did not.

void	display (void *item)
	Displays the `item`, scrolling the list as necessary.

int	handle (int event)
	Handles the `event` within the normal widget bounding box.

uchar	has_scrollbar () const
	Returns the current scrollbar mode, see Fl_Browser_::has_scrollbar(uchar)

void	has_scrollbar (uchar mode)
	Sets whether the widget should have scrollbars or not (default Fl_Browser_::BOTH).

int	hposition () const
	Gets the horizontal scroll position of the list as a pixel position `pos`.

void	hposition (int)
	Sets the horizontal scroll position of the list to pixel position `pos`.

int	position () const
	Gets the vertical scroll position of the list as a pixel position `pos`.

void	position (int pos)
	Sets the vertical scroll position of the list to pixel position `pos`.

void	resize (int X, int Y, int W, int H)
	Repositions and/or resizes the browser.

void	scrollbar_left ()
	Moves the vertical scrollbar to the lefthand side of the list.

void	scrollbar_right ()
	Moves the vertical scrollbar to the righthand side of the list.

int	scrollbar_size () const
	Gets the current size of the scrollbars' troughs, in pixels.

void	scrollbar_size (int newSize)
	Sets the pixel size of the scrollbars' troughs to `newSize`, in pixels.

int	scrollbar_width () const
	This method has been deprecated, existing for backwards compatibility only.

void	scrollbar_width (int width)
	This method has been deprecated, existing for backwards compatibility only.

int	select (void *item, int val=1, int docallbacks=0)
	Sets the selection state of `item` to `val`, and returns 1 if the state changed or 0 if it did not.

int	select_only (void *item, int docallbacks=0)
	Selects `item` and returns 1 if the state changed or 0 if it did not.

void	sort (int flags=0)
	Sort the items in the browser based on `flags`.

Fl_Color	textcolor () const
	Gets the default text color for the lines in the browser.

void	textcolor (Fl_Color col)
	Sets the default text color for the lines in the browser to color `col`.

Fl_Font	textfont () const
	Gets the default text font for the lines in the browser.

void	textfont (Fl_Font font)
	Sets the default text font for the lines in the browser to `font`.

Fl_Fontsize	textsize () const
	Gets the default text size (in pixels) for the lines in the browser.

void	textsize (Fl_Fontsize newSize)
	Sets the default text size (in pixels) for the lines in the browser to `size`.

Public Member Functions inherited from Fl_Group
Fl_Widget *&	_ddfdesign_kludge ()
	This is for forms compatibility only.

void	add (Fl_Widget &)
	The widget is removed from its current group (if any) and then added to the end of this group.

void	add (Fl_Widget *o)
	See void Fl_Group::add(Fl_Widget &w)

void	add_resizable (Fl_Widget &o)
	Adds a widget to the group and makes it the resizable widget.

Fl_Widget const	array () const
	Returns a pointer to the array of children.

virtual Fl_Group *	as_group ()
	Returns an Fl_Group pointer if this widget is an Fl_Group.

void	begin ()
	Sets the current group so you can build the widget tree by just constructing the widgets.

Fl_Widget *	child (int n) const
	Returns array()[n].

int	children () const
	Returns how many child widgets the group has.

void	clear ()
	Deletes all child widgets from memory recursively.

unsigned int	clip_children ()
	Returns the current clipping mode.

void	clip_children (int c)
	Controls whether the group widget clips the drawing of child widgets to its bounding box.

void	end ()
	Exactly the same as current(this->parent()).

int	find (const Fl_Widget &o) const
	See int Fl_Group::find(const Fl_Widget *w) const.

int	find (const Fl_Widget *) const
	Searches the child array for the widget and returns the index.

	Fl_Group (int, int, int, int, const char *=0)
	Creates a new Fl_Group widget using the given position, size, and label string.

void	focus (Fl_Widget *W)

void	forms_end ()
	This is for forms compatibility only.

int	handle (int)
	Handles the specified event.

void	init_sizes ()
	Resets the internal array of widget sizes and positions.

void	insert (Fl_Widget &, int i)
	The widget is removed from its current group (if any) and then inserted into this group.

void	insert (Fl_Widget &o, Fl_Widget *before)
	This does insert(w, find(before)).

void	remove (Fl_Widget &)
	Removes a widget from the group but does not delete it.

void	remove (Fl_Widget *o)
	Removes the widget `o` from the group.

void	remove (int index)
	Removes the widget at `index` from the group but does not delete it.

Fl_Widget *	resizable () const
	See void Fl_Group::resizable(Fl_Widget *box)

void	resizable (Fl_Widget &o)
	See void Fl_Group::resizable(Fl_Widget *box)

void	resizable (Fl_Widget *o)
	The resizable widget defines the resizing box for the group.

void	resize (int, int, int, int)
	Resizes the Fl_Group widget and all of its children.

virtual	~Fl_Group ()
	The destructor also deletes all the children.

Public Member Functions inherited from Fl_Widget
void	_clear_fullscreen ()

void	_set_fullscreen ()

void	activate ()
	Activates the widget.

unsigned int	active () const
	Returns whether the widget is active.

int	active_r () const
	Returns whether the widget and all of its parents are active.

Fl_Align	align () const
	Gets the label alignment.

void	align (Fl_Align alignment)
	Sets the label alignment.

long	argument () const
	Gets the current user data (long) argument that is passed to the callback function.

void	argument (long v)
	Sets the current user data (long) argument that is passed to the callback function.

virtual class Fl_Gl_Window *	as_gl_window ()
	Returns an Fl_Gl_Window pointer if this widget is an Fl_Gl_Window.

virtual Fl_Window *	as_window ()
	Returns an Fl_Window pointer if this widget is an Fl_Window.

Fl_Boxtype	box () const
	Gets the box type of the widget.

void	box (Fl_Boxtype new_box)
	Sets the box type for the widget.

Fl_Callback_p	callback () const
	Gets the current callback function for the widget.

void	callback (Fl_Callback *cb)
	Sets the current callback function for the widget.

void	callback (Fl_Callback cb, void p)
	Sets the current callback function for the widget.

void	callback (Fl_Callback0 *cb)
	Sets the current callback function for the widget.

void	callback (Fl_Callback1 *cb, long p=0)
	Sets the current callback function for the widget.

unsigned int	changed () const
	Checks if the widget value changed since the last callback.

void	clear_active ()
	Marks the widget as inactive without sending events or changing focus.

void	clear_changed ()
	Marks the value of the widget as unchanged.

void	clear_damage (uchar c=0)
	Clears or sets the damage flags.

void	clear_output ()
	Sets a widget to accept input.

void	clear_visible ()
	Hides the widget.

void	clear_visible_focus ()
	Disables keyboard focus navigation with this widget.

Fl_Color	color () const
	Gets the background color of the widget.

void	color (Fl_Color bg)
	Sets the background color of the widget.

void	color (Fl_Color bg, Fl_Color sel)
	Sets the background and selection color of the widget.

Fl_Color	color2 () const
	For back compatibility only.

void	color2 (unsigned a)
	For back compatibility only.

int	contains (const Fl_Widget *w) const
	Checks if w is a child of this widget.

void	copy_label (const char *new_label)
	Sets the current label.

void	copy_tooltip (const char *text)
	Sets the current tooltip text.

uchar	damage () const
	Returns non-zero if draw() needs to be called.

void	damage (uchar c)
	Sets the damage bits for the widget.

void	damage (uchar c, int x, int y, int w, int h)
	Sets the damage bits for an area inside the widget.

int	damage_resize (int, int, int, int)
	Internal use only.

void	deactivate ()
	Deactivates the widget.

Fl_Image *	deimage ()
	Gets the image that is used as part of the widget label.

const Fl_Image *	deimage () const

void	deimage (Fl_Image &img)
	Sets the image to use as part of the widget label.

void	deimage (Fl_Image *img)
	Sets the image to use as part of the widget label.

void	do_callback ()
	Calls the widget callback.

void	do_callback (Fl_Widget *o, long arg)
	Calls the widget callback.

void	do_callback (Fl_Widget o, void arg=0)
	Calls the widget callback.

void	draw_label (int, int, int, int, Fl_Align) const
	Draws the label in an arbitrary bounding box with an arbitrary alignment.

int	h () const
	Gets the widget height.

virtual void	hide ()
	Makes a widget invisible.

Fl_Image *	image ()
	Gets the image that is used as part of the widget label.

const Fl_Image *	image () const

void	image (Fl_Image &img)
	Sets the image to use as part of the widget label.

void	image (Fl_Image *img)
	Sets the image to use as part of the widget label.

int	inside (const Fl_Widget *wgt) const
	Checks if this widget is a child of `wgt`.

int	is_label_copied () const
	Returns whether the current label was assigned with copy_label().

const char *	label () const
	Gets the current label text.

void	label (const char *text)
	Sets the current label pointer.

void	label (Fl_Labeltype a, const char *b)
	Shortcut to set the label text and type in one call.

Fl_Color	labelcolor () const
	Gets the label color.

void	labelcolor (Fl_Color c)
	Sets the label color.

Fl_Font	labelfont () const
	Gets the font to use.

void	labelfont (Fl_Font f)
	Sets the font to use.

Fl_Fontsize	labelsize () const
	Gets the font size in pixels.

void	labelsize (Fl_Fontsize pix)
	Sets the font size in pixels.

Fl_Labeltype	labeltype () const
	Gets the label type.

void	labeltype (Fl_Labeltype a)
	Sets the label type.

void	measure_label (int &ww, int &hh) const
	Sets width ww and height hh accordingly with the label size.

unsigned int	output () const
	Returns if a widget is used for output only.

Fl_Group *	parent () const
	Returns a pointer to the parent widget.

void	parent (Fl_Group *p)
	Internal use only - "for hacks only".

void	position (int X, int Y)
	Repositions the window or widget.

void	redraw ()
	Schedules the drawing of the widget.

void	redraw_label ()
	Schedules the drawing of the label.

Fl_Color	selection_color () const
	Gets the selection color.

void	selection_color (Fl_Color a)
	Sets the selection color.

void	set_active ()
	Marks the widget as active without sending events or changing focus.

void	set_changed ()
	Marks the value of the widget as changed.

void	set_output ()
	Sets a widget to output only.

void	set_visible ()
	Makes the widget visible.

void	set_visible_focus ()
	Enables keyboard focus navigation with this widget.

virtual void	show ()
	Makes a widget visible.

void	size (int W, int H)
	Changes the size of the widget.

int	take_focus ()
	Gives the widget the keyboard focus.

unsigned int	takesevents () const
	Returns if the widget is able to take events.

int	test_shortcut ()
	Returns true if the widget's label contains the entered '&x' shortcut.

const char *	tooltip () const
	Gets the current tooltip text.

void	tooltip (const char *text)
	Sets the current tooltip text.

Fl_Window *	top_window () const
	Returns a pointer to the top-level window for the widget.

Fl_Window *	top_window_offset (int &xoff, int &yoff) const
	Finds the x/y offset of the current widget relative to the top-level window.

uchar	type () const
	Gets the widget type.

void	type (uchar t)
	Sets the widget type.

int	use_accents_menu ()
	Returns non zero if MAC_USE_ACCENTS_MENU flag is set, 0 otherwise.

void *	user_data () const
	Gets the user data for this widget.

void	user_data (void *v)
	Sets the user data for this widget.

unsigned int	visible () const
	Returns whether a widget is visible.

unsigned int	visible_focus ()
	Checks whether this widget has a visible focus.

void	visible_focus (int v)
	Modifies keyboard focus navigation.

int	visible_r () const
	Returns whether a widget and all its parents are visible.

int	w () const
	Gets the widget width.

Fl_When	when () const
	Returns the conditions under which the callback is called.

void	when (uchar i)
	Sets the flags used to decide when a callback is called.

Fl_Window *	window () const
	Returns a pointer to the nearest parent window up the widget hierarchy.

int	x () const
	Gets the widget position in its window.

int	y () const
	Gets the widget position in its window.

virtual	~Fl_Widget ()
	Destroys the widget.

Public Attributes
Fl_Scrollbar	hscrollbar
	Horizontal scrollbar.

Fl_Scrollbar	scrollbar
	Vertical scrollbar.

Protected Member Functions
void	bbox (int &X, int &Y, int &W, int &H) const
	Returns the bounding box for the interior of the list's display window, inside the scrollbars.

void	deleting (void *item)
	This method should be used when `item` is being deleted from the list.

int	displayed (void *item) const
	Returns non-zero if `item` has been scrolled to a position where it is being displayed.

void	draw ()
	Draws the list within the normal widget bounding box.

void *	find_item (int ypos)
	This method returns the item under mouse y position `ypos`.

	Fl_Browser_ (int X, int Y, int W, int H, const char *L=0)
	The constructor makes an empty browser.

virtual int	full_height () const
	This method may be provided by the subclass to indicate the full height of the item list, in pixels.

virtual int	full_width () const
	This method may be provided by the subclass to indicate the full width of the item list, in pixels.

virtual int	incr_height () const
	This method may be provided to return the average height of all items to be used for scrolling.

void	inserting (void a, void b)
	This method should be used when an item is in the process of being inserted into the list.

virtual void *	item_at (int index) const
	This method must be provided by the subclass to return the item for the specified `index`.

virtual void	item_draw (void *item, int X, int Y, int W, int H) const =0
	This method must be provided by the subclass to draw the `item` in the area indicated by `X`, `Y`, `W`, `H`.

virtual void *	item_first () const =0
	This method must be provided by the subclass to return the first item in the list.

virtual int	item_height (void *item) const =0
	This method must be provided by the subclass to return the height of `item` in pixels.

virtual void *	item_last () const
	This method must be provided by the subclass to return the last item in the list.

virtual void *	item_next (void *item) const =0
	This method must be provided by the subclass to return the item in the list after `item`.

virtual void *	item_prev (void *item) const =0
	This method must be provided by the subclass to return the item in the list before `item`.

virtual int	item_quick_height (void *item) const
	This method may be provided by the subclass to return the height of the `item`, in pixels.

virtual void	item_select (void *item, int val=1)
	This method must be implemented by the subclass if it supports multiple selections; sets the selection state to `val` for the `item`.

virtual int	item_selected (void *item) const
	This method must be implemented by the subclass if it supports multiple selections; returns the selection state for `item`.

virtual void	item_swap (void a, void b)
	This optional method should be provided by the subclass to efficiently swap browser items `a` and `b`, such as for sorting.

virtual const char *	item_text (void *item) const
	This optional method returns a string (label) that may be used for sorting.

virtual int	item_width (void *item) const =0
	This method must be provided by the subclass to return the width of the `item` in pixels.

int	leftedge () const
	This method returns the X position of the left edge of the list area after adjusting for the scrollbar and border, if any.

void	new_list ()
	This method should be called when the list data is completely replaced or cleared.

void	redraw_line (void *item)
	This method should be called when the contents of `item` has changed, but not its height.

void	redraw_lines ()
	This method will cause the entire list to be redrawn.

void	replacing (void a, void b)
	This method should be used when item `a` is being replaced by item `b`.

void *	selection () const
	Returns the item currently selected, or NULL if there is no selection.

void	swapping (void a, void b)
	This method should be used when two items `a` and `b` are being swapped.

void *	top () const
	Returns the item that appears at the top of the list.

Protected Member Functions inherited from Fl_Group
void	draw ()
	Draws the widget.

void	draw_child (Fl_Widget &widget) const
	Forces a child to redraw.

void	draw_children ()
	Draws all children of the group.

void	draw_outside_label (const Fl_Widget &widget) const
	Parents normally call this to draw outside labels of child widgets.

int *	sizes ()
	Returns the internal array of widget sizes and positions.

void	update_child (Fl_Widget &widget) const
	Draws a child only if it needs it.

Protected Member Functions inherited from Fl_Widget
void	clear_flag (unsigned int c)
	Clears a flag in the flags mask.

void	draw_backdrop () const
	If FL_ALIGN_IMAGE_BACKDROP is set, the image or deimage will be drawn.

void	draw_box () const
	Draws the widget box according its box style.

void	draw_box (Fl_Boxtype t, Fl_Color c) const
	Draws a box of type t, of color c at the widget's position and size.

void	draw_box (Fl_Boxtype t, int x, int y, int w, int h, Fl_Color c) const
	Draws a box of type t, of color c at the position X,Y and size W,H.

void	draw_focus ()
	draws a focus rectangle around the widget

void	draw_focus (Fl_Boxtype t, int x, int y, int w, int h) const
	Draws a focus box for the widget at the given position and size.

void	draw_label () const
	Draws the widget's label at the defined label position.

void	draw_label (int, int, int, int) const
	Draws the label in an arbitrary bounding box.

	Fl_Widget (int x, int y, int w, int h, const char *label=0L)
	Creates a widget at the given position and size.

unsigned int	flags () const
	Gets the widget flags mask.

void	h (int v)
	Internal use only.

void	set_flag (unsigned int c)
	Sets a flag in the flags mask.

void	w (int v)
	Internal use only.

void	x (int v)
	Internal use only.

void	y (int v)
	Internal use only.

Additional Inherited Members
Static Public Member Functions inherited from Fl_Group
static Fl_Group *	current ()
	Returns the currently active group.

static void	current (Fl_Group *g)
	Sets the current group.

Static Public Member Functions inherited from Fl_Widget
static void	default_callback (Fl_Widget cb, void d)
	The default callback for all widgets that don't set a callback.

static unsigned int	label_shortcut (const char *t)
	Returns the Unicode value of the '&x' shortcut in a given text.

static int	test_shortcut (const char *, const bool require_alt=false)
	Returns true if the given text `t` contains the entered '&x' shortcut.

Protected Types inherited from Fl_Widget
enum	{ INACTIVE = 1<<0 , INVISIBLE = 1<<1 , OUTPUT = 1<<2 , NOBORDER = 1<<3 , FORCE_POSITION = 1<<4 , NON_MODAL = 1<<5 , SHORTCUT_LABEL = 1<<6 , CHANGED = 1<<7 , OVERRIDE = 1<<8 , VISIBLE_FOCUS = 1<<9 , COPIED_LABEL = 1<<10 , CLIP_CHILDREN = 1<<11 , MENU_WINDOW = 1<<12 , TOOLTIP_WINDOW = 1<<13 , MODAL = 1<<14 , NO_OVERLAY = 1<<15 , GROUP_RELATIVE = 1<<16 , COPIED_TOOLTIP = 1<<17 , FULLSCREEN = 1<<18 , MAC_USE_ACCENTS_MENU = 1<<19 , USERFLAG3 = 1<<29 , USERFLAG2 = 1<<30 , USERFLAG1 = 1<<31 }
	flags possible values enumeration. More...

Detailed Description

This is the base class for browsers.

To be useful it must be subclassed and several virtual functions defined. The Forms-compatible browser and the file chooser's browser are subclassed off of this.

This has been designed so that the subclass has complete control over the storage of the data, although because next() and prev() functions are used to index, it works best as a linked list or as a large block of characters in which the line breaks must be searched for.

A great deal of work has been done so that the "height" of a data object does not need to be determined until it is drawn. This is useful if actually figuring out the size of an object requires accessing image data or doing stat() on a file or doing some other slow operation.

Keyboard navigation of browser items

The keyboard navigation of browser items is only possible if visible_focus() is enabled. If disabled, the widget rejects keyboard focus; Tab and Shift-Tab focus navigation will skip the widget.

In 'Select' and 'Normal' mode, the widget rejects keyboard focus; no navigation keys are supported (other than scrollbar positioning).

In 'Hold' mode, the widget accepts keyboard focus, and Up/Down arrow keys can navigate the selected item.

In 'Multi' mode, the widget accepts keyboard focus, and Up/Down arrow keys navigate the focus box; Space toggles the current item's selection, Enter selects only the current item (deselects all others). If Shift (or Ctrl) is combined with Up/Down arrow keys, the current item's selection state is extended to the next item. In this way one can extend a selection or de-selection.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Values for has_scrollbar().

Anonymous enum bit flags for has_scrollbar().

bit 0: horizontal
bit 1: vertical
bit 2: 'always' (to be combined with bits 0 and 1)
bit 3-31: reserved for future use

Enumerator
HORIZONTAL	Only show horizontal scrollbar.
VERTICAL	Only show vertical scrollbar.
BOTH	Show both scrollbars. (default)
ALWAYS_ON	Specified scrollbar(s) should 'always' be shown (to be used with HORIZONTAL/VERTICAL)
HORIZONTAL_ALWAYS	Horizontal scrollbar always on.
VERTICAL_ALWAYS	Vertical scrollbar always on.
BOTH_ALWAYS	Both scrollbars always on.

Constructor & Destructor Documentation

◆ Fl_Browser_()

Fl_Browser_::Fl_Browser_	(	int	X,
		int	Y,
		int	W,
		int	H,
		const char *	L = `0`
	)

protected

The constructor makes an empty browser.

Parameters

[in]	X,Y,W,H	position and size.
[in]	L	The label string, may be NULL.

Member Function Documentation

◆ bbox()

void Fl_Browser_::bbox	(	int &	X,
		int &	Y,
		int &	W,
		int &	H
	)		const

protected

Returns the bounding box for the interior of the list's display window, inside the scrollbars.

Parameters

[out] X,Y,W,H The returned bounding box.
(The original contents of these parameters are overwritten)

◆ deleting()

void Fl_Browser_::deleting ( void * item )

protected

This method should be used when item is being deleted from the list.

It allows the Fl_Browser_ to discard any cached data it has on the item. This method does not actually delete the item, but handles the follow up bookkeeping after the item has just been deleted.

Parameters

[in] item The item being deleted.

◆ deselect()

int Fl_Browser_::deselect ( int docallbacks = 0 )

Deselects all items in the list and returns 1 if the state changed or 0 if it did not.

If the optional docallbacks parameter is non-zero, deselect tries to call the callback function for the widget.

Parameters

[in] docallbacks If 1, invokes widget callback if item changed.
If 0, doesn't do callback (default).

◆ display()

void Fl_Browser_::display ( void * item )

Displays the item, scrolling the list as necessary.

Parameters

[in] item The item to be displayed.

See also: display(), displayed()

◆ displayed()

int Fl_Browser_::displayed ( void * item ) const

protected

Returns non-zero if item has been scrolled to a position where it is being displayed.

Checks to see if the item's vertical position is within the top and bottom edges of the display window. This does NOT take into account the hide()/show() status of the widget or item.

Parameters

[in] item The item to check

Returns: 1 if visible, 0 if not visible.

See also: display(), displayed()

◆ draw()

void Fl_Browser_::draw ( void )

protectedvirtual

Draws the list within the normal widget bounding box.

Implements Fl_Widget.

◆ find_item()

void * Fl_Browser_::find_item ( int ypos )

protected

This method returns the item under mouse y position ypos.

NULL is returned if no item is displayed at that position.

Parameters

[in] ypos The y position (eg. Fl::event_y()) to find an item under.

Returns: The item, or NULL if not found

◆ full_height()

int Fl_Browser_::full_height ( ) const

protectedvirtual

This method may be provided by the subclass to indicate the full height of the item list, in pixels.

The default implementation computes the full height from the item heights. Includes the items that are scrolled off screen.

Returns: The height of the entire list, in pixels.

Reimplemented in Fl_Browser.

◆ full_width()

int Fl_Browser_::full_width ( ) const

protectedvirtual

This method may be provided by the subclass to indicate the full width of the item list, in pixels.

The default implementation computes the full width from the item widths.

Returns: The maximum width of all the items, in pixels.

◆ handle()

int Fl_Browser_::handle ( int event )

virtual

Handles the event within the normal widget bounding box.

Parameters

[in] event The event to process.

Returns: 1 if event was processed, 0 if not.

Reimplemented from Fl_Widget.

Reimplemented in Fl_Check_Browser.

◆ has_scrollbar()

void Fl_Browser_::has_scrollbar ( uchar mode )

inline

Sets whether the widget should have scrollbars or not (default Fl_Browser_::BOTH).

By default you can scroll in both directions, and the scrollbars disappear if the data will fit in the widget.
has_scrollbar() changes this based on the value of mode:

0 - No scrollbars.
Fl_Browser_::HORIZONTAL - Only a horizontal scrollbar.
Fl_Browser_::VERTICAL - Only a vertical scrollbar.
Fl_Browser_::BOTH - The default is both scrollbars.
Fl_Browser_::HORIZONTAL_ALWAYS - Horizontal scrollbar always on, vertical always off.
Fl_Browser_::VERTICAL_ALWAYS - Vertical scrollbar always on, horizontal always off.
Fl_Browser_::BOTH_ALWAYS - Both always on.

◆ hposition() [1/2]

int Fl_Browser_::hposition ( ) const

inline

Gets the horizontal scroll position of the list as a pixel position pos.

The position returned is how many pixels of the list are scrolled off the left edge of the screen. Example: A position of '18' indicates the left 18 pixels of the list are scrolled off the left edge of the screen.

See also: position(), hposition()

◆ hposition() [2/2]

void Fl_Browser_::hposition ( int pos )

Sets the horizontal scroll position of the list to pixel position pos.

The position is how many pixels of the list are scrolled off the left edge of the screen. Example: A position of '18' scrolls the left 18 pixels of the list off the left edge of the screen.

Parameters

[in] pos The horizontal position (in pixels) to scroll the browser to.

See also: position(), hposition()

◆ incr_height()

int Fl_Browser_::incr_height ( ) const

protectedvirtual

This method may be provided to return the average height of all items to be used for scrolling.

The default implementation uses the height of the first item.

Returns: The average height of items, in pixels.

Reimplemented in Fl_Browser.

◆ inserting()

void Fl_Browser_::inserting	(	void *	a,
		void *	b
	)

protected

This method should be used when an item is in the process of being inserted into the list.

It allows the Fl_Browser_ to update its cache data as needed, scheduling a redraw for the affected lines. This method does not actually insert items, but handles the follow up bookkeeping after items have been inserted.

Parameters

[in]	a	The starting item position
[in]	b	The new item being inserted

◆ item_at()

virtual void * Fl_Browser_::item_at ( int index ) const

inlineprotectedvirtual

This method must be provided by the subclass to return the item for the specified index.

Parameters

[in] index The index of the item to be returned

Returns: The item at the specified index.

Reimplemented in Fl_Browser.

◆ item_draw()

virtual void Fl_Browser_::item_draw	(	void *	item,
		int	X,
		int	Y,
		int	W,
		int	H
	)		const

protectedpure virtual

This method must be provided by the subclass to draw the item in the area indicated by X, Y, W, H.

Implemented in Fl_Browser.

◆ item_first()

virtual void * Fl_Browser_::item_first ( ) const

protectedpure virtual

This method must be provided by the subclass to return the first item in the list.

See also: item_first(), item_next(), item_last(), item_prev()

Implemented in Fl_Browser.

◆ item_height()

virtual int Fl_Browser_::item_height ( void * item ) const

protectedpure virtual

This method must be provided by the subclass to return the height of item in pixels.

Allow for two additional pixels for the list selection box.

Parameters

[in] item The item whose height is returned.

Returns: The height of the specified item in pixels.

See also: item_height(), item_width(), item_quick_height()

Implemented in Fl_Browser.

◆ item_last()

virtual void * Fl_Browser_::item_last ( ) const

inlineprotectedvirtual

This method must be provided by the subclass to return the last item in the list.

See also: item_first(), item_next(), item_last(), item_prev()

Reimplemented in Fl_Browser.

◆ item_next()

virtual void * Fl_Browser_::item_next ( void * item ) const

protectedpure virtual

This method must be provided by the subclass to return the item in the list after item.

See also: item_first(), item_next(), item_last(), item_prev()

Implemented in Fl_Browser.

◆ item_prev()

virtual void * Fl_Browser_::item_prev ( void * item ) const

protectedpure virtual

This method must be provided by the subclass to return the item in the list before item.

See also: item_first(), item_next(), item_last(), item_prev()

Implemented in Fl_Browser.

◆ item_quick_height()

int Fl_Browser_::item_quick_height ( void * item ) const

protectedvirtual

This method may be provided by the subclass to return the height of the item, in pixels.

Allow for two additional pixels for the list selection box. This method differs from item_height in that it is only called for selection and scrolling operations. The default implementation calls item_height.

Parameters

[in] item The item whose height to return.

Returns: The height, in pixels.

◆ item_select()

void Fl_Browser_::item_select	(	void *	item,
		int	val = `1`
	)

protectedvirtual

This method must be implemented by the subclass if it supports multiple selections; sets the selection state to val for the item.

Sets the selection state for item, where optional val is 1 (select, the default) or 0 (de-select).

Parameters

[in]	item	The item to be selected
[in]	val	The optional selection state; 1=select, 0=de-select. The default is to select the item (1).

Reimplemented in Fl_Browser.

◆ item_selected()

int Fl_Browser_::item_selected ( void * item ) const

protectedvirtual

This method must be implemented by the subclass if it supports multiple selections; returns the selection state for item.

The method should return 1 if item is selected, or 0 otherwise.

Parameters

[in] item The item to test.

Reimplemented in Fl_Browser.

◆ item_swap()

virtual void Fl_Browser_::item_swap	(	void *	a,
		void *	b
	)

inlineprotectedvirtual

This optional method should be provided by the subclass to efficiently swap browser items a and b, such as for sorting.

Parameters

[in] a,b The two items to be swapped.

Reimplemented in Fl_Browser.

◆ item_text()

virtual const char * Fl_Browser_::item_text ( void * item ) const

inlineprotectedvirtual

This optional method returns a string (label) that may be used for sorting.

Parameters

[in] item The item whose label text is returned.

Returns: The item's text label. (Can be NULL if blank)

Reimplemented in Fl_Browser.

◆ item_width()

virtual int Fl_Browser_::item_width ( void * item ) const

protectedpure virtual

This method must be provided by the subclass to return the width of the item in pixels.

Allow for two additional pixels for the list selection box.

Parameters

[in] item The item whose width is returned.

Returns: The width of the item in pixels.

Implemented in Fl_Browser.

◆ leftedge()

int Fl_Browser_::leftedge ( ) const

protected

This method returns the X position of the left edge of the list area after adjusting for the scrollbar and border, if any.

Returns: The X position of the left edge of the list, in pixels.

See also: Fl_Browser_::bbox()

◆ new_list()

void Fl_Browser_::new_list ( )

protected

This method should be called when the list data is completely replaced or cleared.

It informs the Fl_Browser_ widget that any cached information it has concerning the items is invalid. This method does not clear the list, it just handles the follow up bookkeeping after the list has been cleared.

◆ position() [1/2]

int Fl_Browser_::position ( ) const

inline

Gets the vertical scroll position of the list as a pixel position pos.

The position returned is how many pixels of the list are scrolled off the top edge of the screen. Example: A position of '3' indicates the top 3 pixels of the list are scrolled off the top edge of the screen.

See also: position(), hposition()

◆ position() [2/2]

void Fl_Browser_::position ( int pos )

Sets the vertical scroll position of the list to pixel position pos.

The position is how many pixels of the list are scrolled off the top edge of the screen. Example: A position of '3' scrolls the top three pixels of the list off the top edge of the screen.

Parameters

[in] pos The vertical position (in pixels) to scroll the browser to.

See also: position(), hposition()

◆ redraw_line()

void Fl_Browser_::redraw_line ( void * item )

protected

This method should be called when the contents of item has changed, but not its height.

Parameters

[in] item The item that needs to be redrawn.

See also: redraw_lines(), redraw_line()

◆ redraw_lines()

void Fl_Browser_::redraw_lines ( )

inlineprotected

This method will cause the entire list to be redrawn.

See also: redraw_lines(), redraw_line()

◆ replacing()

void Fl_Browser_::replacing	(	void *	a,
		void *	b
	)

protected

This method should be used when item a is being replaced by item b.

It allows the Fl_Browser_ to update its cache data as needed, schedules a redraw for the item being changed, and tries to maintain the selection. This method does not actually replace the item, but handles the follow up bookkeeping after the item has just been replaced.

Parameters

[in]	a	Item being replaced
[in]	b	Item to replace 'a'

◆ resize()

void Fl_Browser_::resize	(	int	X,
		int	Y,
		int	W,
		int	H
	)

virtual

Repositions and/or resizes the browser.

Parameters

[in] X,Y,W,H The new position and size for the browser, in pixels.

Reimplemented from Fl_Widget.

◆ scrollbar_left()

void Fl_Browser_::scrollbar_left ( )

inline

Moves the vertical scrollbar to the lefthand side of the list.

For back compatibility.

◆ scrollbar_right()

void Fl_Browser_::scrollbar_right ( )

inline

Moves the vertical scrollbar to the righthand side of the list.

For back compatibility.

◆ scrollbar_size() [1/2]

int Fl_Browser_::scrollbar_size ( ) const

inline

Gets the current size of the scrollbars' troughs, in pixels.

If this value is zero (default), this widget will use the Fl::scrollbar_size() value as the scrollbar's width.

Returns: Scrollbar size in pixels, or 0 if the global Fl::scrollbar_size() is being used.

See also: Fl::scrollbar_size(int)

◆ scrollbar_size() [2/2]

void Fl_Browser_::scrollbar_size ( int newSize )

inline

Sets the pixel size of the scrollbars' troughs to newSize, in pixels.

Normally you should not need this method, and should use Fl::scrollbar_size(int) instead to manage the size of ALL your widgets' scrollbars. This ensures your application has a consistent UI, is the default behavior, and is normally what you want.

Only use THIS method if you really need to override the global scrollbar size. The need for this should be rare.

Setting newSize to the special value of 0 causes the widget to track the global Fl::scrollbar_size(), which is the default.

Parameters

[in] newSize Sets the scrollbar size in pixels.
If 0 (default), scrollbar size tracks the global Fl::scrollbar_size()

See also: Fl::scrollbar_size()

◆ scrollbar_width() [1/2]

int Fl_Browser_::scrollbar_width ( ) const

inline

This method has been deprecated, existing for backwards compatibility only.

Use scrollbar_size() instead. This method always returns the global value Fl::scrollbar_size().

Returns: Always returns the global value Fl::scrollbar_size().

Todo:: This method should eventually be removed in 1.4+

◆ scrollbar_width() [2/2]

void Fl_Browser_::scrollbar_width ( int width )

inline

This method has been deprecated, existing for backwards compatibility only.

Use scrollbar_size(int) instead. This method sets the global Fl::scrollbar_size(), and forces this instance of the widget to use it.

Todo:: This method should eventually be removed in 1.4+

◆ select()

int Fl_Browser_::select	(	void *	item,
		int	val = `1`,
		int	docallbacks = `0`
	)

Sets the selection state of item to val, and returns 1 if the state changed or 0 if it did not.

If docallbacks is non-zero, select tries to call the callback function for the widget.

Parameters

[in]	item	The item whose selection state is to be changed
[in]	val	The new selection state (1=select, 0=de-select)
[in]	docallbacks	If 1, invokes widget callback if item changed. If 0, doesn't do callback (default).

Returns: 1 if state was changed, 0 if not.

◆ select_only()

int Fl_Browser_::select_only	(	void *	item,
		int	docallbacks = `0`
	)

Selects item and returns 1 if the state changed or 0 if it did not.

Any other items in the list are deselected.

Parameters

[in]	item	The `item` to select.
[in]	docallbacks	If 1, invokes widget callback if item changed. If 0, doesn't do callback (default).

◆ selection()

void * Fl_Browser_::selection ( ) const

inlineprotected

Returns the item currently selected, or NULL if there is no selection.

For multiple selection browsers this call returns the currently focused item, even if it is not selected. To find all selected items, call Fl_Multi_Browser::selected() for every item in question.

◆ sort()

void Fl_Browser_::sort ( int flags = 0 )

Sort the items in the browser based on flags.

item_swap(void*, void*) and item_text(void*) must be implemented for this call.

Parameters

[in] flags FL_SORT_ASCENDING – sort in ascending order
FL_SORT_DESCENDING – sort in descending order
Values other than the above will cause undefined behavior
Other flags may appear in the future.

Todo:: Add a flag to ignore case

◆ swapping()

void Fl_Browser_::swapping	(	void *	a,
		void *	b
	)

protected

This method should be used when two items a and b are being swapped.

It allows the Fl_Browser_ to update its cache data as needed, schedules a redraw for the two items, and tries to maintain the current selection. This method does not actually swap items, but handles the follow up bookkeeping after items have been swapped.

Parameters

[in] a,b Items being swapped.

◆ textfont()

Fl_Font Fl_Browser_::textfont ( ) const

inline

Gets the default text font for the lines in the browser.

See also: textfont(), textsize(), textcolor()

Member Data Documentation

◆ hscrollbar

Fl_Scrollbar Fl_Browser_::hscrollbar

Horizontal scrollbar.

Public, so that it can be accessed directly.

◆ scrollbar

Fl_Scrollbar Fl_Browser_::scrollbar

Vertical scrollbar.

Public, so that it can be accessed directly.

The documentation for this class was generated from the following files:

Fl_Browser_.H
Fl_Browser_.cxx

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Keyboard navigation of browser items

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ Fl_Browser_()

Member Function Documentation

◆ bbox()

◆ deleting()

◆ deselect()

◆ display()

◆ displayed()

◆ draw()

◆ find_item()

◆ full_height()

◆ full_width()

◆ handle()

◆ has_scrollbar()

◆ hposition() [1/2]

◆ hposition() [2/2]

◆ incr_height()

◆ inserting()

◆ item_at()

◆ item_draw()

◆ item_first()

◆ item_height()

◆ item_last()

◆ item_next()

◆ item_prev()

◆ item_quick_height()

◆ item_select()

◆ item_selected()

◆ item_swap()

◆ item_text()

◆ item_width()

◆ leftedge()

◆ new_list()

◆ position() [1/2]

◆ position() [2/2]

◆ redraw_line()

◆ redraw_lines()

◆ replacing()

◆ resize()

◆ scrollbar_left()

◆ scrollbar_right()

◆ scrollbar_size() [1/2]

◆ scrollbar_size() [2/2]

◆ scrollbar_width() [1/2]

◆ scrollbar_width() [2/2]

◆ select()

◆ select_only()

◆ selection()

◆ sort()

◆ swapping()

◆ textfont()

Member Data Documentation

◆ hscrollbar

◆ scrollbar
