Fl_Widget_Surface Class Reference

A surface on which any FLTK widget can be drawn. More...

#include <Fl_Widget_Surface.H>

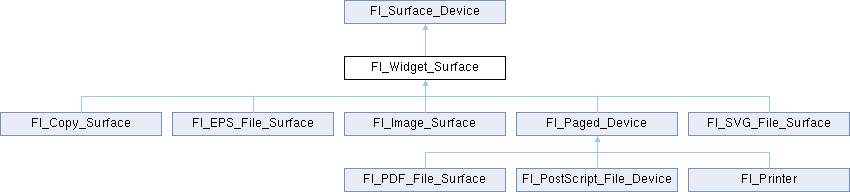

Inheritance diagram for Fl_Widget_Surface:
Fl_Surface_Device Fl_Copy_Surface Fl_EPS_File_Surface Fl_Image_Surface Fl_Paged_Device Fl_SVG_File_Surface Fl_PostScript_File_Device Fl_Printer

Public Member Functions

void draw (Fl_Widget *widget, int delta_x=0, int delta_y=0)
 Draws the widget on the drawing surface. More...

virtual void draw_decorated_window (Fl_Window *win, int x_offset=0, int y_offset=0)
 Draws a window with its title bar and frame if any. More...

virtual void origin (int x, int y)
 Sets the position of the origin of graphics in the drawable part of the drawing surface. More...

virtual void origin (int *x, int *y)
 Computes the coordinates of the current origin of graphics functions. More...

void print_window_part (Fl_Window *win, int x, int y, int w, int h, int delta_x=0, int delta_y=0)
 Draws a rectangular part of an on-screen window. More...

virtual int printable_rect (int *w, int *h)
 Computes the width and height of the drawable area of the drawing surface. More...

virtual void translate (int x, int y)
 Translates the current graphics origin accounting for the current rotation. More...

virtual void untranslate ()
 Undoes the effect of a previous translate() call.

- Public Member Functions inherited from Fl_Surface_Device
Fl_Graphics_Driver * driver ()
 Returns the graphics driver of this drawing surface. More...

virtual bool is_current ()
 Is this surface the current drawing surface?

virtual void set_current (void)
 Make this surface the current drawing surface. More...

virtual ~Fl_Surface_Device ()
 The destructor. More...


Protected Member Functions

 Fl_Widget_Surface (Fl_Graphics_Driver *d)
 The constructor. More...

- Protected Member Functions inherited from Fl_Surface_Device
void driver (Fl_Graphics_Driver *graphics_driver)
 Sets the graphics driver of this drawing surface. More...

virtual void end_current ()

 Fl_Surface_Device (Fl_Graphics_Driver *graphics_driver)
 Constructor that sets the graphics driver to use for the created surface. More...


Protected Attributes

int x_offset
 horizontal offset to the origin of graphics coordinates

int y_offset
 vertical offset to the origin of graphics coordinates


Additional Inherited Members

- Static Public Member Functions inherited from Fl_Surface_Device
static Fl_Surface_Devicepop_current ()
 Removes the top element from the current drawing surface stack, and makes the new top element current. More...

static void push_current (Fl_Surface_Device *new_current)
 Pushes new_current on top of the stack of current drawing surfaces, and makes it current. More...

static Fl_Surface_Devicesurface ()
 The current drawing surface. More...


Detailed Description

A surface on which any FLTK widget can be drawn.

Constructor & Destructor Documentation

◆ Fl_Widget_Surface()

Fl_Widget_Surface::Fl_Widget_Surface ( Fl_Graphics_Driver *  d)
protected

The constructor.

Parameters
dcan be nul.

Member Function Documentation

◆ draw()

void Fl_Widget_Surface::draw ( Fl_Widget widget,
int  delta_x = 0,
int  delta_y = 0
)

Draws the widget on the drawing surface.

The widget's position on the surface is determined by the last call to origin() and by the optional delta_x and delta_y arguments. Its dimensions are in points unless there was a previous call to scale().

Parameters
[in]widgetAny FLTK widget (e.g., standard, custom, window).
[in]delta_x,delta_yOptional horizontal and vertical offsets for positioning the widget top left relatively to the current origin of graphics.

◆ draw_decorated_window()

void Fl_Widget_Surface::draw_decorated_window ( Fl_Window win,
int  win_offset_x = 0,
int  win_offset_y = 0
)
virtual

Draws a window with its title bar and frame if any.

win_offset_x and win_offset_y are optional coordinates of where to position the window top left. Equivalent to draw() if win is a subwindow or has no border. Use Fl_Window::decorated_w() and Fl_Window::decorated_h() to get the size of the framed window.

Reimplemented in Fl_Printer, and Fl_Copy_Surface.

◆ origin() [1/2]

void Fl_Widget_Surface::origin ( int  x,
int  y
)
virtual

Sets the position of the origin of graphics in the drawable part of the drawing surface.

Arguments should be expressed relatively to the result of a previous printable_rect() call. That is, printable_rect(&w, &h); origin(w/2, 0); sets the graphics origin at the top center of the drawable area. Successive origin() calls don't combine their effects. Origin() calls are not affected by rotate() calls (for classes derived from Fl_Paged_Device).

Parameters
[in]x,yHorizontal and vertical positions in the drawing surface of the desired origin of graphics.

Reimplemented in Fl_EPS_File_Surface, Fl_PostScript_File_Device, Fl_Printer, Fl_Image_Surface, Fl_Copy_Surface, and Fl_SVG_File_Surface.

◆ origin() [2/2]

void Fl_Widget_Surface::origin ( int *  x,
int *  y
)
virtual

Computes the coordinates of the current origin of graphics functions.

Parameters
[out]x,yIf non-null, *x and *y are set to the horizontal and vertical coordinates of the graphics origin.

Reimplemented in Fl_EPS_File_Surface, Fl_PostScript_File_Device, Fl_Printer, Fl_Image_Surface, and Fl_Copy_Surface.

◆ print_window_part()

void Fl_Widget_Surface::print_window_part ( Fl_Window win,
int  x,
int  y,
int  w,
int  h,
int  delta_x = 0,
int  delta_y = 0
)

Draws a rectangular part of an on-screen window.

Parameters
winThe window from where to capture. Can be an Fl_Gl_Window. Sub-windows that intersect the rectangle are also captured.
xThe rectangle left
yThe rectangle top
wThe rectangle width
hThe rectangle height
delta_x,delta_yOptional horizontal and vertical offsets from current graphics origin where to draw the top left of the captured rectangle.

◆ printable_rect()

int Fl_Widget_Surface::printable_rect ( int *  w,
int *  h
)
virtual

Computes the width and height of the drawable area of the drawing surface.

Values are in the same unit as that used by FLTK drawing functions and are unchanged by calls to origin(). If the object is derived from class Fl_Paged_Device, values account for the user-selected paper type and print orientation and are changed by scale() calls.

Returns
0 if OK, non-zero if any error

Reimplemented in Fl_EPS_File_Surface, Fl_PostScript_File_Device, Fl_Printer, Fl_Image_Surface, Fl_SVG_File_Surface, and Fl_Copy_Surface.

◆ translate()

void Fl_Widget_Surface::translate ( int  x,
int  y
)
virtual

Translates the current graphics origin accounting for the current rotation.

Each translate() call must be matched by an untranslate() call. Successive translate() calls add up their effects.

Reimplemented in Fl_EPS_File_Surface, Fl_PostScript_File_Device, Fl_Printer, Fl_Image_Surface, Fl_SVG_File_Surface, and Fl_Copy_Surface.


The documentation for this class was generated from the following files:
