This >chapter >shows >how >to >use >the >Fast >Light >
User-Interface >Designer > ("FLUID") >to >create >your >
GUIs. >
The >Fast >Light >User >Interface >Designer, >or >
FLUID, >is >a >graphical > editor >that >is >used >to >
produce >FLTK >source >code. >
FLUID >edits >and >saves >its >state >in >.fl>
files. > These >files >are > text, >and >you >can >
(with >care) >edit >them >in >a >text >editor, >perhaps >
to > get >some >special >effects. >

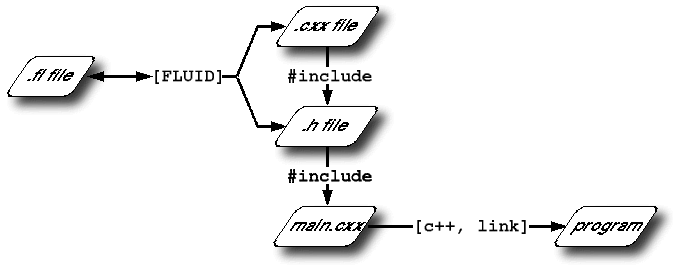

FLUID >can >"compile" >the >.fl> file >into >
a >.cxx> and >a >.h> file. > The >
.cxx> file >defines >all >the >objects >from >the >
.fl> file >and >the >.h> file > declares >
all >the >global >ones. >

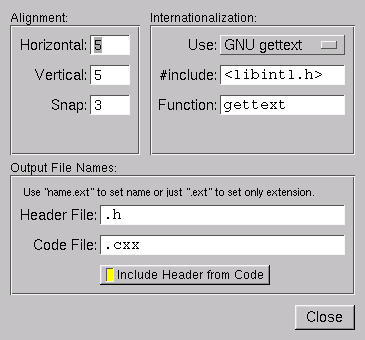

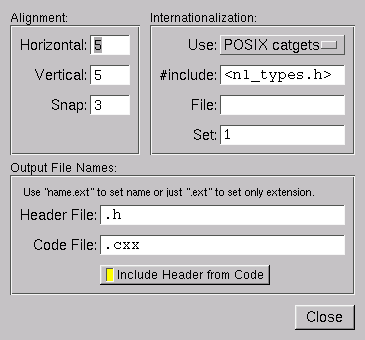

FLUID >also >supports >localization >(>
Internationalization>) >of >label >strings >using >
message >files >and >the >GNU >gettext >or >POSIX >
catgets >interfaces. >
A >simple >program >can >be >made >by >putting >all >
your >code >(including >a > main()> function) >
into >the >.fl> file >and >thus >making >the >
.cxx> file >a > single >source >file >to >compile. >
Most >programs >are >more >complex >than > this, >so >
you >write >other >.cxx> files >that >call >the >
FLUID >functions. > These >.cxx> files >must >
#include> the >.h> file >or >they >can >
#include> the >.cxx> file >so >it >still >
appears >to >be >a >single >source > file. >
Normally >the >FLUID >file >defines >one >or >more >
functions >or >classes >which >output >C++ >code. > Each >
function >defines >a >one >or >more >FLTK > windows, >
and >all >the >widgets >that >go >inside >those >
windows. >
Widgets >created >by >FLUID >are >either >"named", >
"complex >named" >or > "unnamed". > A >named >widget >has >
a >legal >C++ >variable >identifier >as >its > name >
(i.e. >only >alphanumeric >and >underscore). > In >this >
case >FLUID > defines >a >global >variable >or >class >
member >that >will >point >at >the >widget > after >the >
function >defining >it >is >called. > A >complex >named >
object >has > punctuation >such >as >'.' >or >'->' >or >
any >other >symbols >in >its >name. > In > this >case >
FLUID >assigns >a >pointer >to >the >widget >to >the >
name, >but >does > not >attempt >to >declare >it. >
This >can >be >used >to >get >the >widgets >into >
structures. > An >unnamed >widget >has >a >blank >name >
and >no >pointer >is >stored. >
Widgets >may >either >call >a >named >callback >
function >that >you >write >in > another >source >file, >
or >you >can >supply >a >small >piece >of >C++ >
source >and > FLUID >will >write >a >private >callback >
function >into >the >.cxx> file. >
To >run >FLUID >under >UNIX, >type: >
>fluid >filename.fl> &>
to >edit >the >.fl> file >filename.fl>. >
If >the >file >does >not >exist > you >will >get >an >
error >pop-up, >but >if >you >dismiss >it >you >will >
be >editing > a >blank >file >of >that >name. > You >
can >run >FLUID >without >any >name, >in > which >case >
you >will >be >editing >an >unnamed >blank >setup >(but >
you >can >use > save-as >to >write >it >to >a >file). >
You >can >provide >any >of >the >standard >FLTK >
switches >before >the >filename: >
>-display host:n.n
>-geometry WxH+X+Y
>-title windowtitle
>-name classname
>-iconic
>-fg color
>-bg color
>-bg2 color
>
Changing >the >colors >may >be >useful >to >see >what >
your >interface >will >look > at >if >the >user >calls >
it >with >the >same >switches. >
In >the >current >version, >if >you >don't >go >into >
the >background >(with > '&') >then >you >will >be >
able >to >abort >FLUID >by >typing >^C >on >the >
terminal. >It > will >exit >immediately, >losing >any >
changes. >
To >run >FLUID >under >WIN32, >double-click >on >the >
FLUID.exe> file. > You >can >also >run >FLUID >from >
the >Command >Prompt >window >(FLUID >always > runs >in >
the >background >under >WIN32). >
FLUID >can >also >be >called >as >a >command-line >
"compiler" >to >create >the > .cxx> and >.h>
file >from >a >.fl> file. > To >do >this >
type: >
>fluid -c >filename.fl>
>
This >will >read >the >filename.fl> file >and >
write >filename.cxx> and > filename.h>. >The >
directory >will >be >stripped, >so >they >are >written >
to > the >current >directory >always. > If >there >are >
any >errors >reading >or > writing >the >files >it >
will >print >the >error >and >exit >with >a >non-zero >
code. > In >a >makefile >you >can >use >a >line >
like >this: >
>my_panels.h my_panels.cxx: my_panels.fl
> fluid -c my_panels.fl
>
Some >versions >of >make >will >accept >rules >like >
this >to >allow >all >.fl> files >found >to >
be >compiled: >
>.SUFFIXES: .fl .cxx .h
>.fl.h .fl.cxx:
> fluid -c $<
>
FLUID >is >an >amazingly >powerful >little >program. >
However, >this >power >comes >at >a >price >as >it >
is >not >always >obvious >how >to >accomplish >seemingly >
simple >tasks >with >it. >This >tutorial >will >show >
you >how >to >generate >a >complete >user >interface >
class >with >FLUID >that >is >used >for >the >CubeView >
program >provided >with >FLTK. >

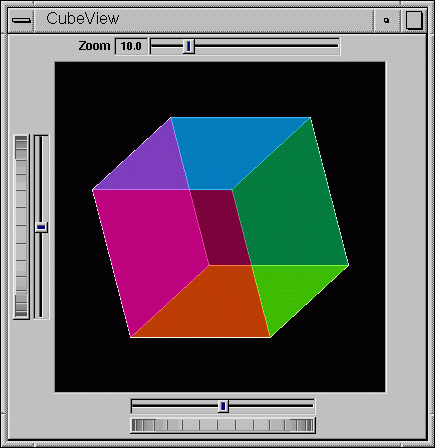

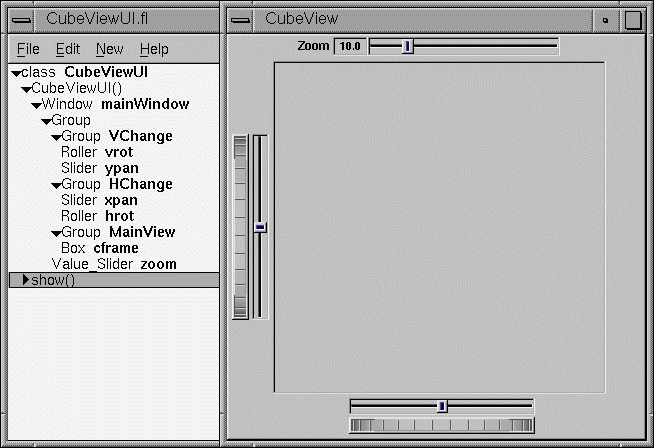

The >window >is >of >class >CubeViewUI, >and >is >
completely >generated >by >FLUID, >including >class >member >
functions. >The >central >display >of >the >cube >is >a >
separate >subclass >of >Fl_Gl_Window >called >CubeView. >
CubeViewUI >manages >CubeView >using >callbacks >from >the >
various >sliders >and >rollers >to >manipulate >the >
viewing >angle >and >zoom >of >CubeView. >
At >the >completion >of >this >tutorial >you >will >
(hopefully) >understand >how >to: >
- Use >FLUID >to >create >a >complete >user >interface >
class, >including >constructor >and >any >member >functions >
necessary. >
- Use >FLUID >to >set >callbacks >member >functions >of >
a >custom >widget >classes. >
- Subclass >an >
Fl_Gl_Window> to >suit >your >purposes. >
The >CubeView >Class>
The >CubeView >class >is >a >subclass >of >Fl_Gl_Window. >
It >has >methods >for >setting >the >zoom, >the >x>
and >y> pan, >and >the >rotation >angle >about >
the >x> and >y>axes. >
You >can >safely >skip >this >section >as >long >as >
you >realize >the >CubeView >is >a >sublass >of >
Fl_Gl_Window> and >will >respond >to >calls >from >
CubeViewUI, >generated >by >FLUID. >
Here >is >the >CubeView >class >definition, >as >given >
by >its >header >file >"test/CubeView.h": >
>class CubeView : public Fl_Gl_Window {
> public:
> CubeView(int x,int y,int w,int h,const char *l=0);
> // this value determines the scaling factor used to draw the cube.
> double size;
> /* Set the rotation about the vertical (y ) axis.
> *
> * This function is called by the horizontal roller in CubeViewUI
> * and the initialize button in CubeViewUI.
> */
> void v_angle(float angle){vAng=angle;};
> // Return the rotation about the vertical (y ) axis.
> float v_angle(){return vAng;};
> /* Set the rotation about the horizontal (x ) axis.
> *
> * This function is called by the vertical roller in CubeViewUI
> and the
> * initialize button in CubeViewUI.
> */
> void h_angle(float angle){hAng=angle;};
> // the rotation about the horizontal (x ) axis.
> float h_angle(){return hAng;};
> /* Sets the x shift of the cube view camera.
> *
> * This function is called by the slider in CubeViewUI and the
> * initialize button in CubeViewUI.
> */
> void panx(float x){xshift=x;};
> /* Sets the y shift of the cube view camera.
> *
> * This function is called by the slider in CubeViewUI and the
> * initialize button in CubeViewUI.
> */
> void pany(float y){yshift=y;};
> /* The widget class draw() override.
> * The draw() function initialize Gl for another round of
> * drawing then calls specialized functions for drawing each
> * of the entities displayed in the cube view.
> */
> void draw();
>
> private:
> /* Draw the cube boundaries
> * Draw the faces of the cube using the boxv[] vertices, using
> * GL_LINE_LOOP for the faces. The color is #defined by
> * CUBECOLOR.
> */
> void drawCube();
>
> float vAng,hAng; float xshift,yshift;
>
> float boxv0[3];float boxv1[3]; float boxv2[3];float boxv3[3];
> float boxv4[3];float boxv5[3]; float boxv6[3];float boxv7[3];
>};
>
Here >is >the >CubeView >implementation. >It >is >very >
similar >to >the >"cube" >demo >included >with >FLTK. >
>#include "CubeView.h"
>#include <math.h>
>
>CubeView::CubeView(int x,int y,int w,int h,const char *l)
> : Fl_Gl_Window(x,y,w,h,l)
>{
> vAng = 0.0; hAng=0.0; size=10.0;
> /* The cube definition. These are the vertices of a unit cube
> * centered on the origin.*/
> boxv0[0] = -0.5; boxv0[1] = -0.5; boxv0[2] = -0.5; boxv1[0] = 0.5;
> boxv1[1] = -0.5; boxv1[2] = -0.5; boxv2[0] = 0.5; boxv2[1] = 0.5;
> boxv2[2] = -0.5; boxv3[0] = -0.5; boxv3[1] = 0.5; boxv3[2] = -0.5;
> boxv4[0] = -0.5; boxv4[1] = -0.5; boxv4[2] = 0.5; boxv5[0] = 0.5;
> boxv5[1] = -0.5; boxv5[2] = 0.5; boxv6[0] = 0.5; boxv6[1] = 0.5;
> boxv6[2] = 0.5; boxv7[0] = -0.5; boxv7[1] = 0.5; boxv7[2] = 0.5;
>};
>
>// The color used for the edges of the bounding cube.
>#define CUBECOLOR 255,255,255,255
>
>void CubeView::drawCube() {
>/* Draw a colored cube */
>#define ALPHA 0.5
> glShadeModel(GL_FLAT);
>
> glBegin(GL_QUADS);
> glColor4f(0.0, 0.0, 1.0, ALPHA);
> glVertex3fv(boxv0);
> glVertex3fv(boxv1);
> glVertex3fv(boxv2);
> glVertex3fv(boxv3);
>
> glColor4f(1.0, 1.0, 0.0, ALPHA);
> glVertex3fv(boxv0);
> glVertex3fv(boxv4);
> glVertex3fv(boxv5);
> glVertex3fv(boxv1);
>
> glColor4f(0.0, 1.0, 1.0, ALPHA);
> glVertex3fv(boxv2);
> glVertex3fv(boxv6);
> glVertex3fv(boxv7);
> glVertex3fv(boxv3);
>
> glColor4f(1.0, 0.0, 0.0, ALPHA);
> glVertex3fv(boxv4);
> glVertex3fv(boxv5);
> glVertex3fv(boxv6);
> glVertex3fv(boxv7);
>
> glColor4f(1.0, 0.0, 1.0, ALPHA);
> glVertex3fv(boxv0);
> glVertex3fv(boxv3);
> glVertex3fv(boxv7);
> glVertex3fv(boxv4);
>
> glColor4f(0.0, 1.0, 0.0, ALPHA);
> glVertex3fv(boxv1);
> glVertex3fv(boxv5);
> glVertex3fv(boxv6);
> glVertex3fv(boxv2);
> glEnd();
>
> glColor3f(1.0, 1.0, 1.0);
> glBegin(GL_LINES);
> glVertex3fv(boxv0);
> glVertex3fv(boxv1);
>
> glVertex3fv(boxv1);
> glVertex3fv(boxv2);
>
> glVertex3fv(boxv2);
> glVertex3fv(boxv3);
>
> glVertex3fv(boxv3);
> glVertex3fv(boxv0);
>
> glVertex3fv(boxv4);
> glVertex3fv(boxv5);
>
> glVertex3fv(boxv5);
> glVertex3fv(boxv6);
>
> glVertex3fv(boxv6);
> glVertex3fv(boxv7);
>
> glVertex3fv(boxv7);
> glVertex3fv(boxv4);
>
> glVertex3fv(boxv0);
> glVertex3fv(boxv4);
>
> glVertex3fv(boxv1);
> glVertex3fv(boxv5);
>
> glVertex3fv(boxv2);
> glVertex3fv(boxv6);
>
> glVertex3fv(boxv3);
> glVertex3fv(boxv7);
> glEnd();
>};//drawCube
>
>void CubeView::draw() {
> if (!valid()) {
> glLoadIdentity(); glViewport(0,0,w(),h());
> glOrtho(-10,10,-10,10,-20000,10000); glEnable(GL_BLEND);
> glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
> }
>
> glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
> glPushMatrix(); glTranslatef(xshift, yshift, 0);
> glRotatef(hAng,0,1,0); glRotatef(vAng,1,0,0);
> glScalef(float(size),float(size),float(size)); drawCube();
> glPopMatrix();
>};
>
The >CubeViewUI >Class>
We >will >completely >construct >a >window >to >display >
and >control >the >CubeView >defined >in >the >previous >
section >using >FLUID. >

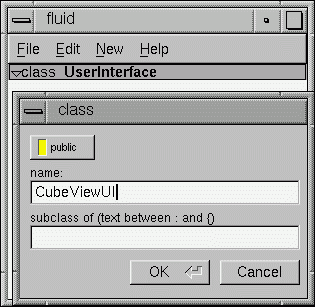

Once >you >have >started >FLUID, >the >first >step >in >
defining >a >class >is >to >create >a >new >class >
within >FLUID >using >the >New->Code->Class> menu >
item. >Name >the >class >"CubeViewUI" >and >leave >the >
subclass >blank. >We >do >not >need >any >inheritance >
for >this >window. >You >should >see >the >new >class >
declaration >in >the >FLUID >browser >window. >
Click >on >the >CubeViewUI >class >in >the >FLUID >
window >and >add >a >new >method >by >selecting >
New->Code->Function/Method.> The >name >of >the >function >
will >also >be >CubeViewUI. >FLUID >will >understands >
that >this >will >be >the >constructor >for >the >class >
and >will >generate >the >appropriate >code. >Make >sure >
you >declare >the >constructor >public. >
Then >add >a >window >to >the >CubeViewUI >class. >
Highlight >the >name >of >the >constructor >in >the >
FLUID >browser >window >and >click >on >
New->Group->Window>. >In >a >similar >manner >add >
the >following >to >the >CubeViewUI >constructor: >
- A >horizontal >roller >named >hrot>
- A >vertical >roller >named >vrot>
- A >horizontal >slider >named >xpan>
- A >vertical >slider >named >ypan>
- A >horizontal >value >slider >named >zoom>
None >of >these >additions >need >be >public. >And >
they >shouldn't >be >unless >you >plan >to >expose >
them >as >part >of >the >interface >for >CubeViewUI. >
When >you >are >finished >you >should >have >something >
like >this: >
We >will >talk >about >the >show()> method >
that >is >highlighted >shortly. >
What >we >have >is >nice, >but >does >little >to >
show >our >cube. >We >have >already >defined >the >
CubeView >class >and >we >would >like >to >show >it >
within >the >CubeViewUI. >
The >CubeView >class >inherits >the >Fl_Gl_Window>
class, >which >is >created >in >the >same >way >as >
a >Fl_Box> widget. >Use >New->Other->Box> to >
add >a >square >box >to >the >main >window. >This >
will >be >no >ordinary >box, >however. >

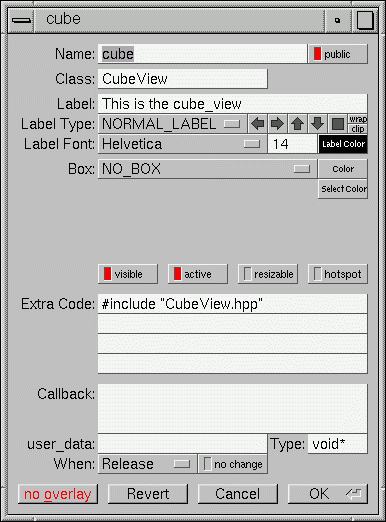

The >Box >properties >window >will >appear. >The >key >
to >letting >CubeViewUI >display >CubeView >is >to >enter >
CubeView >in >the >"Class:" >text >entry >box. >This >
tells >FLUID >that >it >is >not >an >Fl_Box>, >
but >a >similar >widget >with >the >same >constructor. >
In >the >"Extra >Code:" >field >enter >#include >
"CubeView.h">
This >#include> is >important, >as >we >have >
just >included >CubeView >as >a >member >of >CubeViewUI, >
so >any >public >CubeView >methods >are >now >available >
to >CubeViewUI. >
Each >of >the >widgets >we >defined >before >adding >
CubeView >can >have >callbacks >that >call >CubeView >
methods. >You >can >call >an >external >function >or >
put >in >a >short >amount >of >code >in >the >
"Callback" >field >of >the >widget >panel. >For >example, >
the >callback >for >the >ypan> slider >is: >
>cube->pany(((Fl_Slider *)o)->value());
>cube->redraw();
>
We >call >cube->redraw()> after >changing >the >
value >to >update >the >CubeView >window. >CubeView >
could >easily >be >modified >to >do >this, >but >it >
is >nice >to >keep >this >exposed >in >the >case >
where >you >may >want >to >do >more >than >one >view >
change >only >redrawing >once >saves >a >lot >of >time. >
There >is >no >reason >no >wait >until >after >you >
have >added >CubeView >to >enter >these >callbacks. >
FLUID >assumes >you >are >smart >enough >not >to >refer >
to >members >or >functions >that >don't >exist. >
You >can >add >class >methods >within >FLUID >that >
have >nothing >to >do >with >the >GUI. >An >an >
example >add >a >show >function >so >that >CubeViewUI >
can >actually >appear >on >the >screen. >

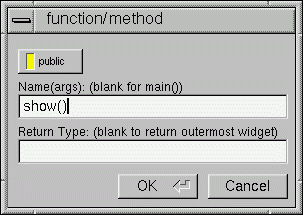

Make >sure >the >top >level >CubeViewUI >is >selected >
and >select >New->Code->Function/Method>. >Just >use >
the >name >show()>. >We >don't >need >a >
return >value >here, >and >since >we >will >not >be >
adding >any >widgets >to >this >method >FLUID >will >
assign >it >a >return >type >of >void>. >
Once >the >new >method >has >been >added, >highlight >
its >name >and >select >New->Code->Code. >Enter >the >
method's >code >in >the >code >window. >
If >you >need >to >add >code >to >initialize >class, >
for >example >setting >initial >values >of >the >
horizontal >and >vertical >angles >in >the >CubeView, >
you >can >simply >highlight >the >Constructor >and >
select >New->Code->Code>. >Add >any >required >code. >
Now >that >we >have >completely >defined >the >
CubeViewUI, >we >have >to >generate >the >code. >There >
is >one >last >trick >to >ensure >this >all >works. >

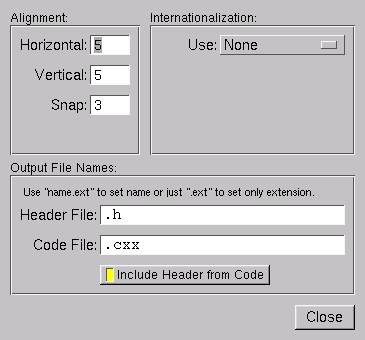

Open >the >preferences >dialog >from >Edit->Preferences>
. >
At >the >bottom >of >the >preferences >dialog >box >
is >the >key: >"Include >Header >from >Code". >Select >
that >option >and >set >your >desired >file >extensions >
and >you >are >in >business. >You >can >include >the >
CubeViewUI.h >(or >whatever >extension >you >prefer) >as >
you >would >any >other >C++ >class. >
The >Widget >Browser>
The >main >window >shows >a >menu >bar >and >a >
scrolling >browser >of >all > the >defined >widgets. >
The >name >of >the >.fl> file >being >edited >
is >shown >in > the >window >title. >
The >widgets >are >stored >in >a >hierarchy. > You >
can >open >and >close >a > level >by >clicking >the >
"triangle" >at >the >left >of >a >widget. > The >
leftmost >widgets >are >the >parents>, >and >all >
the >widgets >listed >below >them >are >their >children>
. > Parents >don't >have >to >have >any >children.>
The >top >level >of >the >hierarchy >is >composed >
of >functions> and >classes>. > Each >of >
these >will >produce >a >single >C++ >public >function >
or >class >in >the >output >.cxx> file. >
Calling >the >function >or >instantiating >the >class >
will >create >all >of >the >child >widgets. >
The >second >level >of >the >hierarchy >contains >the >
windows>. > Each >of >these > produces >an >instance >
of >class >Fl_Window>. >
Below >that >are >either >widgets> (subclasses >
of >Fl_Widget>) >or > groups> of >widgets >
(including >other >groups). > Plain >groups >are >for >
layout, >navigation, >and >resize >purposes. >Tab >
groups> provide >the > well-known >file-card >tab >
interface. >
Widgets >are >shown >in >the >browser >by >either >
their >name> (such > as >"main_panel" >in >the >
example), >or >by >their >type> and >label>
(such >as >"Button >"the >green""). >
You >select> widgets >by >clicking >on >their >
names, >which >highlights > them >(you >can >also >select >
widgets >from >any >displayed >window). > You >can >
select >many >widgets >by >dragging >the >mouse >across >
them, >or >by >using > Shift+Click >to >toggle >them >
on >and >off. > To >select >no >widgets, >click >in >
the >blank >area >under >the >last >widget. > Note >
that >hidden >children >may > be >selected >even >when >
there >is >no >visual >indication >of >this. >
You >open> widgets >by >double-clicking >on >
them, >or >(to >open >several > widgets >you >have >
picked) >by >typing >the >F1 >key. > A >control >panel >
will >appear >so >you >can >change >the >widget(s).>
Menu >Items>
The >menu >bar >at >the >top >is >duplicated >as >
a >pop-up >menu >on >any > displayed >window. > The >
shortcuts >for >all >the >menu >items >work >in >any >
window. > The >menu >items >are: >
File/Open... >(Alt+o)>
Discards >the >current >editing >session >and >reads >in >
a >different >.fl> file. > You >are >asked >for >
confirmation >if >you >have >changed >the >current >file. >
FLUID >can >also >read >.fd> files >produced >
by >the >Forms >and >XForms >"fdesign" >programs. >It >
is >best >to >File/Merge >them >instead >of >opening >
them. >FLUID >does >not >understand >everything >in >a >
.fd> file, >and >will >print >a >warning >message >
on >the >controlling >terminal >for >all >data >it >
does >not >understand. >You >will >probably >need >to >
edit >the >resulting >setup >to >fix >these >errors. >
Be >careful >not >to >save >the >file >without >
changing >the >name, >as >FLUID >will >write >over >the >
.fd> file >with >its >own >format, >which >fdesign >
cannot >read! >
File/Save >(Alt+s)>
Writes >the >current >data >to >the >.fl> file. >
If >the >file >is >unnamed > then >FLUID >will >ask >
for >a >filename. >
File/Save >As...(Alt+Shift+S)>
Asks >for >a >new >filename >and >saves >the >file. >
File/Merge... >(Alt+i)>
Inserts >the >contents >of >another >.fl> file, >
without >changing >the >name >of > the >current >.fl>
file. > All >the >functions >(even >if >they >have >
the >same > names >as >the >current >ones) >are >added, >
and >you >will >have >to >use >cut/paste >to > put >
the >widgets >where >you >want. >
File/Write >Code >(Alt+Shift+C)>
"Compiles" >the >data >into >a >.cxx> and >
.h> file. >These >are >exactly >the >same >as >the >
files >you >get >when >you >run >FLUID >with >the >
-c> switch. >
The >output >file >names >are >the >same >as >the >
.fl> file, >with >the >leading > directory >and >
trailing >".fl" >stripped, >and >".h" >or >".cxx" >
appended. >
File/Write >Messages >(Alt+Shift+W)>
Writes >a >message >file >for >all >of >the >text >
labels >defined >in >the >current >file. >
The >output >file >name >is >the >same >as >the >
.fl> file, >with >the >leading > directory >and >
trailing >".fl" >stripped, >and >".txt", >".po", >or >
".msg" >appended >depending >on >the >
Internationalization >Mode>. >
File/Quit >(Alt+q)>
Exits >FLUID. > You >are >asked >for >confirmation >if >
you >have >changed >the > current >data. >
Edit/Undo >(Alt+z)>
This >isn't >implemented >yet. > You >should >do >save >
often >so >you >can >recover >from >any >mistakes >you >
make. >
Edit/Cut >(Alt+x)>
Deletes >the >selected >widgets >and >all >of >their >
children. > These >are >saved > to >a >"clipboard" >file >
and >can >be >pasted >back >into >any >FLUID >window. >
Edit/Copy >(Alt+c)>
Copies >the >selected >widgets >and >all >of >their >
children >to >the >"clipboard" > file. >
Edit/Paste >(Alt+c)>
Pastes >the >widgets >from >the >clipboard >file. >
If >the >widget >is >a >window, >it >is >added >to >
whatever >function >is > selected, >or >contained >in >
the >current >selection. >
If >the >widget >is >a >normal >widget, >it >is >
added >to >whatever >window >or > group >is >selected. >
If >none >is, >it >is >added >to >the >window >or >
group >that > is >the >parent >of >the >current >
selection. >
To >avoid >confusion, >it >is >best >to >select >
exactly >one >widget >before > doing >a >paste. >
Cut/paste >is >the >only >way >to >change >the >
parent >of >a >widget. >
Edit/Select >All >(Alt+a)>
Selects >all >widgets >in >the >same >group >as >the >
current >selection. >
If >they >are >all >selected >already >then >this >
selects >all >widgets >in > that >group's >parent. >
Repeatedly >typing >Alt+a >will >select >larger >and >
larger >groups >of >widgets >until >everything >is >
selected. >
Edit/Open... >(F1 >or >double >click)>
Displays >the >current >widget >in >the >attributes >
panel. >If >the >widget >is >a >window >and >it >is >
not >visible >then >the >window >is >shown >instead. >
Edit/Sort>
Sorts >the >selected >widgets >into >left >to >right, >
top >to >bottom > order. > You >need >to >do >this >
to >make >navigation >keys >in >FLTK >work > correctly. >
You >may >then >fine-tune >the >sorting >with >"Earlier" >
and > "Later". > This >does >not >affect >the >positions >
of >windows >or >functions. >
Edit/Earlier >(F2)>
Moves >all >of >the >selected >widgets >one >earlier >
in >order >among >the > children >of >their >parent >
(if >possible). > This >will >affect >navigation > order, >
and >if >the >widgets >overlap >it >will >affect >how >
they >draw, >as >the > later >widget >is >drawn >on >
top >of >the >earlier >one. > You >can >also >use >
this > to >reorder >functions, >classes, >and >windows >
within >functions. >
Edit/Later >(F3)>
Moves >all >of >the >selected >widgets >one >later >in >
order >among >the > children >of >their >parent >(if >
possible). >
Edit/Group >(F7)>
Creates >a >new >Fl_Group> and >make >all >the >
currently >selected >widgets >children >of >it. >
Edit/Ungroup >(F8)>
Deletes >the >parent >group >if >all >the >children >
of >a >group >are >selected. >
Edit/Overlays >on/off >(Alt+Shift+O)>
Toggles >the >display >of >the >red >overlays >off, >
without >changing >the > selection. > This >makes >it >
easier >to >see >box >borders >and >how >the >layout >
looks. > The >overlays >will >be >forced >back >on >if >
you >change >the > selection. >
Edit/Preferences >(Alt+p)>
Displays >the >preferences >panel. > The >alignment >
preferences >control >the >grid >that >all >widgets >snap >
to >when >you >move >and >resize >them, >and >for >
the >"snap" >which >is >how >far >a >widget >has >to >
be >dragged >from >its >original >position > to >actually >
change. >
The >output >filenames >control >the >extensions >or >
names >of >the >files >the >are >generated >by >FLUID. >
If >you >check >the >"Include >.h >from >.cxx" >button >
the >code >file >will >include >the >header >file >
automatically. >
The >internationalization >options >are >described >
later >in >this >chapter>. >
New/Code/Function>
Creates >a >new >C >function. > You >will >be >asked >
for >a >name >for >the > function. > This >name >should >
be >a >legal >C++ >function >template, >without > the >
return >type. > You >can >pass >arguments >which >can >
be >referred >to >by > code >you >type >into >the >
individual >widgets. >
If >the >function >contains >any >unnamed >windows, >
it >will >be >declared >as > returning >a >Fl_Window >
pointer. > The >unnamed >window >will >be >returned >from >
it > (more >than >one >unnamed >window >is >useless). >
If >the >function >contains > only >named >windows, >it >
will >be >declared >as >returning >nothing >(>void>
). >
It >is >possible >to >make >the >.cxx> output >
be >a >self-contained >program > that >can >be >compiled >
and >executed. > This >is >done >by >deleting >the >
function >name >so >main(argc,argv)> is >used. >
The >function > will >call >show()> on >all >
the >windows >it >creates >and >then >call >Fl::run()>
. > This >can >also >be >used >to >test >resize >
behavior >or >other >parts >of >the >user > interface.>
You >can >change >the >function >name >by >
double-clicking >on >the >function. >
New/Window>
Creates >a >new >Fl_Window> widget. > The >window >
is >added >to >the >currently >selected > function, >or >
to >the >function >containing >the >currently >selected >
item. > The >window >will >appear, >sized >to >100x100. >
You >can >resize >it >to >whatever >size >you >
require. >
The >widget >panel >will >also >appear >and >is >
described >later >in >this >chapter.>
New/...>
All >other >items >on >the >New >menu >are >subclasses >
of >Fl_Widget>. > Creating > them >will >add >
them >to >the >currently >selected >group >or >window, >
or >the > group >or >window >containing >the >currently >
selected >widget. > The >initial > dimensions >and >
position >are >chosen >by >copying >the >current >widget, >
if > possible. >
When >you >create >the >widget >you >will >get >the >
widget's >control >panel, > which >is >described >later >
in >this >chapter. >
Help/About >FLUID>
Pops >up >a >panel >showing >the >version >of >FLUID. >

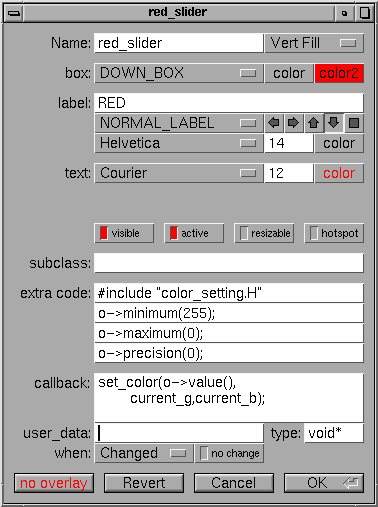

The >Widget >Panel>
When >you >double-click >on >a >widget >or >a >set >
of >widgets >you >will >get > the >"widget >attribute >
panel". >
When >you >change >attributes >using >this >panel, >
the >changes >are > reflected >immediately >in >the >
window. >It >is >useful >to >hit >the >"no > overlay" >
button >(or >type >Alt+Shift+O) >to >hide >the >red >
overlay >so >you >can >see > the >widgets >more >
accurately, >especially >when >setting >the >box >type. >
If >you >have >several >widgets >selected, >they >may >
have >different >values > for >the >fields. > In >this >
case >the >value >for >one> of >the >widgets >
is >shown. > But >if >you >change >this >value, >all>
of >the >selected > widgets >are >changed >to >the >
new >value. >
Hitting >"OK" >makes >the >changes >permanent. >
Selecting >a >different > widget >also >makes >the >
changes >permanent. > FLUID >checks >for >simple > syntax >
errors >such >as >mismatched >parenthesis >in >any >code >
before > saving >any >text. >
"Revert" >or >"Cancel" >put >everything >back >to >
when >you >last >brought >up > the >panel >or >hit >
OK. > However >in >the >current >version >of >FLUID, >
changes > to >"visible" >attributes >(such >as >the >
color, >label, >box) >are >not >undone > by >revert >or >
cancel. > Changes >to >code >like >the >callbacks >are >
undone, > however. >
!-->
Name >(text >field)>
Name >of >a >variable >to >declare, >and >to >store >
a >pointer >to >this > widget >into. > This >variable >
will >be >of >type >"<class>*". > If >the >name >is >
blank >then >no >variable >is >created. >
You >can >name >several >widgets >with >"name[0]", >
"name[1]", >"name[2]", > etc. > This >will >cause >FLUID >
to >declare >an >array >of >pointers. > The >array > is >
big >enough >that >the >highest >number >found >can >be >
stored. > All >widgets > that >in >the >array >must >be >
the >same >type. >
Type >(upper-right >pulldown >menu)>
Some >classes >have >subtypes >that >modify >their >
appearance >or >behavior. > You >pick >the >subtype >off >
of >this >menu. >
Box >(pulldown >menu)>
The >boxtype >to >draw >as >a >background >for >the >
widget. > | > | |
Many >widgets >will >work, >and >draw >faster, >with >
a >"frame" >instead >of >a > "box". > A >frame >does >
not >draw >the >colored >interior, >leaving >whatever >
was >already >there >visible. > Be >careful, >as >FLUID >
may >draw >this >ok >but > the >real >program >may >
leave >unwanted >stuff >inside >the >widget. >
If >a >window >is >filled >with >child >widgets, >
you >can >speed >up >redrawing > by >changing >the >
window's >box >type >to >"NO_BOX". > FLUID >will >display >
a > checkerboard >for >any >areas >that >are >not >
colored >in >by >boxes. >Note > that >this >checkerboard >
is >not >drawn >by >the >resulting >program. >Instead >
random >garbage >will >be >displayed.>
Color>
The >color >to >draw >the >box >with. >
Color2>
Some >widgets >will >use >this >color >for >certain >
parts. > FLUID >does >not > always >show >the >result >
of >this: >this >is >the >color >buttons >draw >in >
when > pushed >down, >and >the >color >of >input >
fields >when >they >have >the >focus. >
Label>
String >to >print >next >to >or >inside >the >button. >
You >can >put >newlines >into >the >string >to >make >
multiple >lines. >The > easiest >way >is >by >typing >
Ctrl+j. >
Label >style >(pull >down >menu)>
How >to >draw >the >label. > Normal, >shadowed, >
engraved, >and >embossed > change >the >appearance >of >
the >text. > "symbol" >requires >the >label >to > start >
with >an >'@' >sign >to >draw >a >named >
symbol>. >
From >this >menu >you >can >also >pick >
"Image...">. > This >lets >you >use >the >contents >
of >a >GIF, >XPM, >or >XBM >image >file >to >label >
the >widget. >
Label >Alignment >(Buttons)>
Where >to >draw >the >label. > The >arrows >put >it >
on >that >side >of >the > widget, >you >can >combine >
the >to >put >it >in >the >corner. > The >"box" >
button > puts >the >label >inside >the >widget, >rather >
than >outside. >
Label >Font>
Font >to >draw >the >label >in. > Ignored >by >
symbols, >bitmaps, >and >pixmaps. > Your >program >can >
change >the >actual >font >used >by >these >"slots" >in >
case > you >want >some >font >other >than >the >16 >
provided. >
Label >Size>
Pixel >size >(height) >for >the >font >to >draw >the >
label >in. > Ignored >by >symbols, > bitmaps, >and >
pixmaps. > To >see >the >result >without >dismissing >the >
panel, > type >the >new >number >and >then >Tab. >
Label >Color>
Color >to >draw >the >label. > Ignored >by >pixmaps >
(bitmaps, >however, >do >use > this >color >as >the >
foreground >color). >
Text >Font, >Size, >and >Color>
Some >widgets >display >text, >such >as >input >fields, >
pull-down >menus, >and >browsers. >
Visible>
If >you >turn >this >off >then >the >widget >is >
hidden >initially. > Don't >change > this >for >windows >
or >for >the >immediate >children >of >a >Tabs >group. >
Active>
If >you >turn >this >off >then >the >widget >is >
deactivated >initially. >
Resizable>
If >a >window >is >resizable >or >has >an >immediate >
child >that >is >resizable, > then >the >user >will >be >
able >to >resize >it. > In >addition >all >the >size >
changes >of >a >window >or >group >will >go >"into" >
the >resizable >child. > If > you >have >a >large >data >
display >surrounded >by >buttons, >you >probably >want >
that >data >area >to >be >resizable. >
Only >one >child >can >be >resizable. > Turning >this >
on >turns >it >off >for > the >other >children. >
You >can >get >more >complex >behavior >by >making >
invisible >boxes >the > resizable >widget, >or >by >using >
hierarchies >of >groups. > Unfortunately >the > only >way >
to >test >it >is >to >compile >the >program. > Resizing >
the >FLUID > window >is >not> the >same >as >
what >will >happen >in >the >user >program. >
Hotspot>
Each >window >may >have >exactly >one >hotspot >(turning >
this >on >will >turn > off >any >others). > This >will >
cause >it >to >be >positioned >with >that >widget >
centered >on >the >mouse. > This >position >is >
determined >when >the >FLUID > function >is >called>
, >so >you >should >call >it >immediately >before >
showing > the >window. > If >you >want >the >window >to >
hide >and >then >reappear >at >a > new >position, >you >
should >have >your >program >set >the >hotspot >itself >
just > before >show()>. >
Subclass>
This >is >how >you >use >your >own >subclasses >of >
Fl_Widget>. > Whatever > identifier >you >type >in >
here >will >be >the >class >that >is >instantiated. >
In >addition, >no >#include> header >file >is >
put >in >the >.h> file. > You > must >provide >
a >#include> line >as >the >first >line >of >
the >"Extra >Code" >which >declares >your >subclass. >
The >class >must >be >similar >to >the >class >you >
are >spoofing. > It > does >not >have >to >be >a >
subclass. > It >is >sometimes >useful >to >change >this >
to >another >FLTK >class. >Currently >the >only >way >
to >get >a >double-buffered > window >is >to >change >
this >field >for >the >window >to >"Fl_Double_Window" >
and > to >add >"#include ><FL/Fl_Double_Window.h>" >to >the >
extra >code. >
Extra >Code>
These >four >fields >let >you >type >in >literal >
lines >of >code >to >dump >into > the >.h> or >
.cxx> files. >
If >the >text >starts >with >a >#> or >the >
word >extern> then >FLUID >thinks > this >is >an >
"include" >line, >and >it >is >written >to >the >.h>
file. >If >the > same >include >line >occurs >
several >times >then >only >one >copy >is >written. >
All >other >lines >are >"code" >lines. > The >current >
widget >is > pointed >to >by >the >local >variable >
o>. > The >window >being >constructed >is > pointed >
to >by >the >local >variable >w>. > You >can >
also >access >any > arguments >passed >to >the >function >
here, >and >any >named >widgets >that >are > before >
this >one. >
FLUID >will >check >for >matching >parenthesis, >braces, >
and >quotes, >but > does >not >do >much >other >error >
checking. > Be >careful >here, >as >it >may >be > hard >
to >figure >out >what >widget >is >producing >an >error >
in >the >compiler. > If >you >need >more >than >four >
lines >you >probably >should >call >a >function >in >
your >own >.cxx> code. >
Callback>
This >can >either >be >the >name >of >a >function, >
or >a >small >snippet >of >code. > If >you >enter >
anything >but >letters, >numbers, >and >the >underscore >
then >FLUID >treats >it >as >code. >
A >name >names >a >function >in >your >own >code. >
It >must >be >declared >as > void >name(<class>*,void*)>
. >
A >code >snippet >is >inserted >into >a >static >
function >in >the >.cxx> output > file. > The >
function >prototype >is >void >name(class >*o, >void >
*v)> so >that >you >can >refer >to >the > widget >
as >o> and >the >user_data()> as >v>
. > FLUID >will >check >for >matching > parenthesis, >
braces, >and >quotes, >but >does >not >do >much >other >
error > checking. > Be >careful >here, >as >it >may >be >
hard >to >figure >out >what >widget > is >producing >an >
error >in >the >compiler. >
If >the >callback >is >blank >then >no >callback >is >
set. >
user_data>
This >is >a >value >for >the >user_data()> of >
the >widget. > If >blank >the > default >value >of >
zero >is >used. > This >can >be >any >piece >of >C >
code >that > can >be >cast >to >a >void>
pointer. >
User >Data >Type>
The >void >*> in >the >callback >function >
prototypes >is >replaced >with >this. > You >may >want >
to >use >long> for >old >XForms >code. > Be >
warned >that > anything >other >than >void >*>
is >not >guaranteed >to >work! > However >on >most >
architectures >other >pointer >types >are >ok, >and >
long> is > usually >ok, >too. >
When>
When >to >do >the >callback. > This >can >be >"never", >
"changed", >"release", >"enter >key", >or >"no >change". >
The > value >of >"enter >key" >is >only >useful >for >
text >input >fields. > The >"no > change" >button >means >
the >callback >is >done >on >the >matching >event >even >
if > the >data >is >not >changed. >
There >are >other >rare >but >useful >values >for >
the >when()> field >that >are > not >in >the >
menu. > You >should >use >the >extra >code >fields >to >
put >these > values >in.>
Selecting >and >Moving >Widgets>
Double-clicking >a >window >name >in >the >browser >will >
display >it, >if >not > displayed >yet. > From >this >
display >you >can >select >widgets, >sets >of > widgets, >
and >move >or >resize >them. > To >close >a >window >
either > double-click >it >or >type >Esc. >
To >select >a >widget, >click >it. > To >select >
several >widgets >drag >a > rectangle >around >them. >
Holding >down >shift >will >toggle >the >selection >of >
the >widgets >instead. >
You >cannot >pick >hidden >widgets. > You >also >
cannot >choose >some >widgets > if >they >are >completely >
overlapped >by >later >widgets. > Use >the >browser >to >
select >these >widgets. >
The >selected >widgets >are >shown >with >a >red >
"overlay" >line >around > them. > You >can >move >the >
widgets >by >dragging >this >box. > Or >you >can >
resize >them >by >dragging >the >outer >edges >and >
corners. > Hold >down >the >Alt > key >while >dragging >
the >mouse >to >defeat >the >snap-to-grid >effect >for >
fine > positioning. >
If >there >is >a >tab >box >displayed >you >can >
change >which >child >is > visible >by >clicking >on >
the >file >tabs. > The >child >you >pick >is >selected. >
The >arrow, >tab, >and >shift+tab >keys >"navigate" >
the >selection. > Left, > right, >tab, >or >shift+tab >
move >to >the >next >or >previous >widgets >in >the >
hierarchy. > Hit >the >right >arrow >enough >and >you >
will >select >every >widget > in >the >window. > Up/down >
widgets >move >to >the >previous/next >widgets >that >
overlap >horizontally. > If >the >navigation >does >not >
seem >to >work >you > probably >need >to >"Sort" >the >
widgets. > This >is >important >if >you >have > input >
fields, >as >FLTK >uses >the >same >rules >when >using >
arrow >keys >to >move > between >input >fields. >
To >"open" >a >widget, >double >click >it. > To >
open >several >widgets >select > them >and >then >type >
F1 >or >pick >"Edit/Open" >off >the >pop-up >menu. >
Type >Alt+o >to >temporarily >toggle >the >overlay >
off >without >changing > the >selection, >so >you >can >
see >the >widget >borders. >
You >can >resize >the >window >by >using >the >
window >manager >border > controls. > FLTK >will >attempt >
to >round >the >window >size >to >the >nearest >
multiple >of >the >grid >size >and >makes >it >big >
enough >to >contain >all >the > widgets >(it >does >
this >using >illegal >X >methods, >so >it >is >possible >
it > will >barf >with >some >window >managers!). > Notice >
that >the >actual >window > in >your >program >may >not >
be >resizable, >and >if >it >is, >the >effect >on >
child > widgets >may >be >different. >
The >panel >for >the >window >(which >you >get >by >
double-clicking >it) >is > almost >identical >to >the >
panel >for >any >other >Fl_Widget. > There >are >three >
extra >items: >
Border>
This >button >turns >the >window >manager >border >on >
or >off. > On >most >window > managers >you >will >have >
to >close >the >window >and >reopen >it >to >see >the >
effect. >
xclass>
The >string >typed >into >here >is >passed >to >the >
X >window >manager >as >the > class. > This >can >
change >the >icon >or >window >decorations. > On >most >
(all?) > window >managers >you >will >have >to >close >
the >window >and >reopen >it >to >see > the >effect. >
Selecting >"Image..." >off >the >label >style >pull-down >
menu >will >bring > up >a >file >chooser >from >which >
you >pick >the >image >file. > If >an >image >has >
already >been >chosen, >you >can >change >the >image >
used >by >picking > "Image..." >again. > The >name >of >
the >image >will >appear >in >the >"label" > field, >
but >you >can't >edit >it. >
The >contents> of >the >image >file >are >
written >to >the >.cxx> file, > so >if >you >
wish >to >distribute >the >C >code, >you >only >need >
to >copy >the >.cxx> file, >not >the >images. >
If >many >widgets >share >the >same >image >then >only >
one >copy >is >written. >
However >the >file >name> is >stored >in >the >
.fl> file, >so >to >read > the >.fl> file >
you >need >the >image >files >as >well. > Filenames >
are >relative > to >the >location >the >.fl>
file >is >(not >necessarily >the >current > directory). >
I >recommend >you >either >put >the >images >in >the >
same > directory >as >the >.fl> file, >or >use >
absolute >path >names. >
Notes >for >all >image >types>
FLUID >runs >using >the >default >visual >of >your >X >
server. > This >may >be >8 > bits, >which >will >give >
you >dithered >images. > You >may >get >better >results >
in >your >actual >program >by >adding >the >code >
"Fl::visual(FL_RGB)" >to >your > code >right >before >the >
first >window >is >displayed. >
All >widgets >with >the >same >image >on >them >
share >the >same >code >and > source >X >pixmap. > Thus >
once >you >have >put >an >image >on >a >widget, >it >
is > nearly >free >to >put >the >same >image >on >
many >other >widgets. >
If >you >are >using >a >painting >program >to >edit >
an >image: >the >only >way > to >convince >FLUID >to >
read >the >image >file >again >is >to >remove >the >
image > from >all >widgets >that >are >using >it >
(including >ones >in >closed >windows), > which >will >
cause >it >to >free >its >internal >copy, >and >then >
set >the >image > again. > You >may >find >it >easier >
to >exit >FLUID >and >run >it >again. >
Don't >rely >on >how >FLTK >crops >images >that >are >
outside >the >widget, >as > this >may >change >in >
future >versions! > The >cropping >of >inside >labels >
will > probably >be >unchanged. >
To >more >accurately >place >images, >make >a >new >
"box" >widget >and >put >the > image >in >that >as >
the >label. > This >is >also >how >you >can >put >
both >an >image > and >text >label >on >the >same >
widget. > If >your >widget >is >a >button, >and >you >
want >the >image >inside >it, >you >must >change >the >
button's >boxtype >to > FL_UP_FRAME >(or >another >frame), >
otherwise >when >it >is >pushed >it >will > erase >the >
image. >
XBM >(X >bitmap >files)>
FLUID >will >read >X >bitmap >files. > These >files >
have >C >source >code >to > define >a >bitmap. >
Sometimes >they >are >stored >with >the >".h" >or >
".bm" > extension >rather >than >the >standard >".xbm". >
FLUID >will >output >code >to >construct >an >
Fl_Bitmap >widget >and >use >it > to >label >the >
widget. > The >'1' >bits >in >the >bitmap >are >drawn >
using >the > label >color >of >the >widget. > You >can >
change >the >color >in >FLUID. > The >'0' > bits >are >
transparent. >
The >program >"bitmap" >on >the >X >distribution >does >
an >ok >job >of >editing > bitmaps. >
XPM >(X >pixmap >files)>
FLUID >will >read >X >pixmap >files >as >used >by >
the >libxpm >library. >These > files >have >C >source >
code >to >define >a >pixmap. > The >filenames >usually >
have >a >".xpm" >extension. >
FLUID >will >output >code >to >construct >an >
Fl_Pixmap >widget >and >use >it > to >label >the >
widget. > The >label >color >of >the >widget >is >
ignored, >even > for >2-color >images >that >could >be >
a >bitmap. >
XPM >files >can >mark >a >single >color >as >being >
transparent. > Currently > FLTK >and >FLUID >simulate >this >
transparency >rather >badly. > It >will >use > the >
color() >of >the >widget >as >the >background, >and >
all >widgets >using >the > same >pixmap >are >assummed >
to >have >the >same >color. > This >may >be >fixed >
in > the >future >or >on >non-X >systems. >
I >have >not >found >any >good >editors >for >small >
iconic >pictures. > For >pixmaps >I >have >used >
XPaint>. >This >(and >most >other) >painting >
programs >are >designed >for >large >full >color >images >
and >are >difficult >to >use >to >edit >an >image >of >
small >size >and >few >colors. >
GIF >files>
FLUID >will >also >read >GIF >image >files. > These >
files >are >often >used >on > html >documents >to >make >
icons. > This >lets >you >use >nice >icons >that >you >
steal >off >the >net >in >your >user >interface. >
FLUID >converts >these >into >(modified) >XPM >format >
and >uses >an > Fl_Pixmap >widget >to >label >the >
widget. > Transparency >is >handled >the >same > as >for >
xpm >files. > Notice >that >the >conversion >removes >the >
compression, > so >the >code >may >be >much >bigger >
than >the >.gif >file. > Only >the >first > image >of >
an >animated >gif >file >is >used. >
Behavior >and >performance >with >large >.gif >files >
is >not >guaranteed! >
FLUID >supports >internationalization >(I18N >for >short) >
of >label >strings >used >by >widgets. >The >preferences >
window >(>Alt+p>) >provides >access >to >the >
I18N >options. >
I18N >Methods>
FLUID >supports >three >methods >of >I18N: >use >none, >
use >GNU >gettext, >and >use >POSIX >catgets. >The >
"use >none" >method >is >the >default >and >just >
passes >the >label >strings >as-is >to >the >widget >
constructors. >
The >"GNU >gettext" >method >uses >GNU >gettext >(or >
a >similar >text-based >I18N >library) >to >retrieve >a >
localized >string >before >calling >the >widget >
constructor. >
The >"POSIX >catgets" >method >uses >the >POSIX >
catgets >function >to >retrieve >a >numbered >message >
from >a >message >catalog >before >calling >the >widget >
constructor. >
Using >GNU >gettext >for >I18N>
FLUID's >code >support >for >GNU >gettext >is >limited >
to >calling >a >function >or >macro >to >retrieve >the >
localized >label; >you >still >need >to >call >
setlocale()> and >textdomain()> or >
bindtextdomain()> to >select >the >appropriate >language >
and >message >file. >
To >use >GNU >gettext >for >I18N, >open >the >
preferences >window >and >choose >"GNU >gettext" >from >
the >"Use" >chooser. >Two >new >input >fields >will >
then >appear >to >control >the >include >file >and >
function/macro >name >to >use >when >retrieving >the >
localized >label >strings. >
The >"#include" >field >controls >the >header >file >
to >include >for >I18N; >by >default >this >is >
<libintl.h>>, >the >standard >I18N >file >for >GNU >
gettext. >
The >"Function" >field >controls >the >function >(or >
macro) >that >will >retrieve >the >localized >message; >
by >default >the >gettext> function >will >be >
called. >
Using >POSIX >catgets >for >I18N>
FLUID's >code >support >for >POSIX >catgets >allows >
you >to >use >a >global >message >file >for >all >
interfaces >or >a >file >specific >to >each >.fl>
file; >you >still >need >to >call >setlocale()>
to >select >the >appropriate >language. >
To >use >POSIX >catgets >for >I18N, >open >the >
preferences >window >and >choose >"POSIX >catgets" >from >
the >"Use" >chooser. >Three >new >input >fields >will >
then >appear >to >control >the >include >file, >catalog >
file, >and >set >number >for >retrieving >the >localized >
label >strings. >
The >"#include" >field >controls >the >header >file >
to >include >for >I18N; >by >default >this >is >
<nl_types.h>>, >the >standard >I18N >file >for >
POSIX >catgets. >
The >"File" >field >controls >the >name >of >the >
catalog >file >variable >to >use >when >retrieving >
localized >messages; >by >default >the >file >field >is >
empty >which >forces >a >local >(static) >catalog >file >
to >be >used >for >all >of >the >windows >defined >in >
your >.fl> file. >
The >"Set" >field >controls >the >set >number >in >
the >catalog >file. >The >default >set >is >1 >and >
rarely >needs >to >be >changed. >
Contents
Previous
Next
No comments for this page.
|
