The Fl_Tooltip class provides tooltip support for all FLTK widgets. More...

#include <Fl_Tooltip.H>

Static Public Member Functions
static Fl_Color	color ()
	Gets the background color for tooltips.

static void	color (Fl_Color c)
	Sets the background color for tooltips.

static Fl_Widget *	current ()
	Gets the current widget target.

static void	current (Fl_Widget *)
	Sets the current widget target.

static float	delay ()
	Gets the tooltip delay.

static void	delay (float f)
	Sets the tooltip delay.

static void	disable ()
	Same as enable(0), disables tooltips on all widgets.

static void	enable (int b=1)
	Enables tooltips on all widgets (or disables if b is false).

static int	enabled ()
	Returns non-zero if tooltips are enabled.

static void	enter_area (Fl_Widget w, int X, int Y, int W, int H, const char tip)
	You may be able to use this to provide tooltips for internal pieces of your widget.

static Fl_Font	font ()
	Gets the typeface for the tooltip text.

static void	font (Fl_Font i)
	Sets the typeface for the tooltip text.

static float	hoverdelay ()
	Gets the tooltip hover delay, the delay between tooltips.

static void	hoverdelay (float f)
	Sets the tooltip hover delay, the delay between tooltips.

static int	margin_height ()
	Gets the amount of extra space above and below the tooltip's text.

static void	margin_height (int v)
	Sets the amount of extra space above and below the tooltip's text.

static int	margin_width ()
	Gets the amount of extra space left/right of the tooltip's text.

static void	margin_width (int v)
	Sets the amount of extra space left/right of the tooltip's text.

static Fl_Fontsize	size ()
	Gets the size of the tooltip text.

static void	size (Fl_Fontsize s)
	Sets the size of the tooltip text.

static Fl_Color	textcolor ()
	Gets the color of the text in the tooltip.

static void	textcolor (Fl_Color c)
	Sets the color of the text in the tooltip.

static int	wrap_width ()
	Gets the maximum width for tooltip's text before it word wraps.

static void	wrap_width (int v)
	Sets the maximum width for tooltip's text before it word wraps.

Static Public Attributes
static void(*	enter )(Fl_Widget *w) = nothing

static void(*	exit )(Fl_Widget *w) = nothing

Friends
void	Fl_Widget::copy_tooltip (const char *)

void	Fl_Widget::tooltip (const char *)

Detailed Description

The Fl_Tooltip class provides tooltip support for all FLTK widgets.

It contains only static methods.

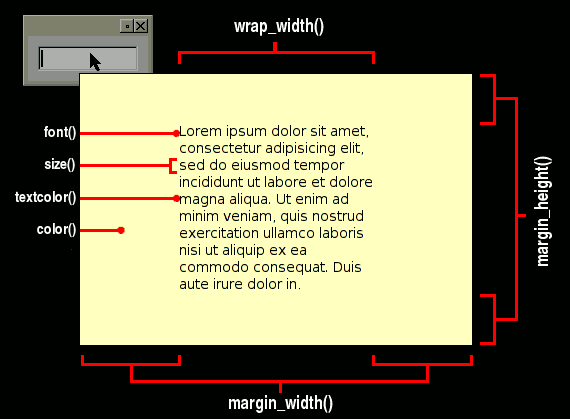

Fl_Tooltip Options

Member Function Documentation

◆ color() [1/2]

static Fl_Color Fl_Tooltip::color ( )

inlinestatic

Gets the background color for tooltips.

The default background color is a pale yellow.

◆ color() [2/2]

static void Fl_Tooltip::color ( Fl_Color c )

inlinestatic

Sets the background color for tooltips.

The default background color is a pale yellow.

◆ current()

void Fl_Tooltip::current ( Fl_Widget * w )

static

Sets the current widget target.

Acts as though enter(widget) was done but does not pop up a tooltip. This is useful to prevent a tooltip from reappearing when a modal overlapping window is deleted. FLTK does this automatically when you click the mouse button.

◆ delay() [1/2]

static float Fl_Tooltip::delay ( )

inlinestatic

Gets the tooltip delay.

The default delay is 1.0 seconds.

◆ delay() [2/2]

static void Fl_Tooltip::delay ( float f )

inlinestatic

Sets the tooltip delay.

The default delay is 1.0 seconds.

◆ disable()

static void Fl_Tooltip::disable ( )

inlinestatic

Same as enable(0), disables tooltips on all widgets.

◆ enable()

static void Fl_Tooltip::enable ( int b = 1 )

inlinestatic

Enables tooltips on all widgets (or disables if b is false).

◆ enabled()

static int Fl_Tooltip::enabled ( )

inlinestatic

Returns non-zero if tooltips are enabled.

◆ enter_area()

void Fl_Tooltip::enter_area	(	Fl_Widget *	wid,
		int	x,
		int	y,
		int	w,
		int	h,
		const char *	t
	)

static

You may be able to use this to provide tooltips for internal pieces of your widget.

Call this after setting Fl::belowmouse() to your widget (because that calls the above enter() method). Then figure out what thing the mouse is pointing at, and call this with the widget (this pointer is used to remove the tooltip if the widget is deleted or hidden, and to locate the tooltip), the rectangle surrounding the area, relative to the top-left corner of the widget (used to calculate where to put the tooltip), and the text of the tooltip (which must be a pointer to static data as it is not copied).

◆ font() [1/2]

static Fl_Font Fl_Tooltip::font ( )

inlinestatic

Gets the typeface for the tooltip text.

◆ font() [2/2]

static void Fl_Tooltip::font ( Fl_Font i )

inlinestatic

Sets the typeface for the tooltip text.

◆ hoverdelay() [1/2]

static float Fl_Tooltip::hoverdelay ( )

inlinestatic

Gets the tooltip hover delay, the delay between tooltips.

The default delay is 0.2 seconds.

◆ hoverdelay() [2/2]

static void Fl_Tooltip::hoverdelay ( float f )

inlinestatic

Sets the tooltip hover delay, the delay between tooltips.

The default delay is 0.2 seconds.

◆ margin_height() [1/2]

static int Fl_Tooltip::margin_height ( )

inlinestatic

Gets the amount of extra space above and below the tooltip's text.

Default is 3.

◆ margin_height() [2/2]

static void Fl_Tooltip::margin_height ( int v )

inlinestatic

Sets the amount of extra space above and below the tooltip's text.

Default is 3.

◆ margin_width() [1/2]

static int Fl_Tooltip::margin_width ( )

inlinestatic

Gets the amount of extra space left/right of the tooltip's text.

Default is 3.

◆ margin_width() [2/2]

static void Fl_Tooltip::margin_width ( int v )

inlinestatic

Sets the amount of extra space left/right of the tooltip's text.

Default is 3.

◆ size() [1/2]

static Fl_Fontsize Fl_Tooltip::size ( )

inlinestatic

Gets the size of the tooltip text.

◆ size() [2/2]

static void Fl_Tooltip::size ( Fl_Fontsize s )

inlinestatic

Sets the size of the tooltip text.

◆ textcolor() [1/2]

static Fl_Color Fl_Tooltip::textcolor ( )

inlinestatic

Gets the color of the text in the tooltip.

The default is black.

◆ textcolor() [2/2]

static void Fl_Tooltip::textcolor ( Fl_Color c )

inlinestatic

Sets the color of the text in the tooltip.

The default is black.

◆ wrap_width() [1/2]

static int Fl_Tooltip::wrap_width ( )

inlinestatic

Gets the maximum width for tooltip's text before it word wraps.

Default is 400.

◆ wrap_width() [2/2]

static void Fl_Tooltip::wrap_width ( int v )

inlinestatic

Sets the maximum width for tooltip's text before it word wraps.

Default is 400.

The documentation for this class was generated from the following files:

Fl_Tooltip.H
Fl.cxx
Fl_Tooltip.cxx
