Fl_Light_Button Class Reference

This subclass displays the "on" state by turning on a light, rather than drawing pushed in. More...

#include <Fl_Light_Button.H>

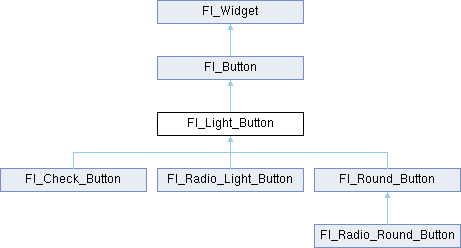

Inheritance diagram for Fl_Light_Button:
Fl_Button Fl_Widget Fl_Check_Button Fl_Radio_Light_Button Fl_Round_Button Fl_Radio_Round_Button

Public Member Functions

 Fl_Light_Button (int x, int y, int w, int h, const char *l=0)
 Creates a new Fl_Light_Button widget using the given position, size, and label string.

virtual int handle (int)
 Handles the specified event.

- Public Member Functions inherited from Fl_Button
int clear ()
 Same as value(0).

Fl_Boxtype down_box () const
 Returns the current down box type, which is drawn when value() is non-zero.

void down_box (Fl_Boxtype b)
 Sets the down box type.

Fl_Color down_color () const
 (for backwards compatibility)

void down_color (unsigned c)
 (for backwards compatibility)

 Fl_Button (int X, int Y, int W, int H, const char *L=0)
 The constructor creates the button using the given position, size, and label.

int set ()
 Same as value(1).

void setonly ()
 Turns on this button and turns off all other radio buttons in the group (calling value(1) or set() does not do this).

int shortcut () const
 Returns the current shortcut key for the button.

void shortcut (const char *s)
 (for backwards compatibility)

void shortcut (int s)
 Sets the shortcut key to s.

char value () const
 Returns the current value of the button (0 or 1).

int value (int v)
 Sets the current value of the button.

- Public Member Functions inherited from Fl_Widget
void _clear_fullscreen ()

void _set_fullscreen ()

void activate ()
 Activates the widget.

unsigned int active () const
 Returns whether the widget is active.

int active_r () const
 Returns whether the widget and all of its parents are active.

Fl_Align align () const
 Gets the label alignment.

void align (Fl_Align alignment)
 Sets the label alignment.

long argument () const
 Gets the current user data (long) argument that is passed to the callback function.

void argument (long v)
 Sets the current user data (long) argument that is passed to the callback function.

virtual class Fl_Gl_Windowas_gl_window ()
 Returns an Fl_Gl_Window pointer if this widget is an Fl_Gl_Window.

virtual Fl_Groupas_group ()
 Returns an Fl_Group pointer if this widget is an Fl_Group.

virtual Fl_Windowas_window ()
 Returns an Fl_Window pointer if this widget is an Fl_Window.

Fl_Boxtype box () const
 Gets the box type of the widget.

void box (Fl_Boxtype new_box)
 Sets the box type for the widget.

Fl_Callback_p callback () const
 Gets the current callback function for the widget.

void callback (Fl_Callback *cb)
 Sets the current callback function for the widget.

void callback (Fl_Callback *cb, void *p)
 Sets the current callback function for the widget.

void callback (Fl_Callback0 *cb)
 Sets the current callback function for the widget.

void callback (Fl_Callback1 *cb, long p=0)
 Sets the current callback function for the widget.

unsigned int changed () const
 Checks if the widget value changed since the last callback.

void clear_active ()
 Marks the widget as inactive without sending events or changing focus.

void clear_changed ()
 Marks the value of the widget as unchanged.

void clear_damage (uchar c=0)
 Clears or sets the damage flags.

void clear_output ()
 Sets a widget to accept input.

void clear_visible ()
 Hides the widget.

void clear_visible_focus ()
 Disables keyboard focus navigation with this widget.

Fl_Color color () const
 Gets the background color of the widget.

void color (Fl_Color bg)
 Sets the background color of the widget.

void color (Fl_Color bg, Fl_Color sel)
 Sets the background and selection color of the widget.

Fl_Color color2 () const
 For back compatibility only.

void color2 (unsigned a)
 For back compatibility only.

int contains (const Fl_Widget *w) const
 Checks if w is a child of this widget.

void copy_label (const char *new_label)
 Sets the current label.

void copy_tooltip (const char *text)
 Sets the current tooltip text.

uchar damage () const
 Returns non-zero if draw() needs to be called.

void damage (uchar c)
 Sets the damage bits for the widget.

void damage (uchar c, int x, int y, int w, int h)
 Sets the damage bits for an area inside the widget.

int damage_resize (int, int, int, int)
 Internal use only.

void deactivate ()
 Deactivates the widget.

Fl_Imagedeimage ()
 Gets the image that is used as part of the widget label.

const Fl_Imagedeimage () const

void deimage (Fl_Image &img)
 Sets the image to use as part of the widget label.

void deimage (Fl_Image *img)
 Sets the image to use as part of the widget label.

void do_callback ()
 Calls the widget callback.

void do_callback (Fl_Widget *o, long arg)
 Calls the widget callback.

void do_callback (Fl_Widget *o, void *arg=0)
 Calls the widget callback.

void draw_label (int, int, int, int, Fl_Align) const
 Draws the label in an arbitrary bounding box with an arbitrary alignment.

int h () const
 Gets the widget height.

virtual void hide ()
 Makes a widget invisible.

Fl_Imageimage ()
 Gets the image that is used as part of the widget label.

const Fl_Imageimage () const

void image (Fl_Image &img)
 Sets the image to use as part of the widget label.

void image (Fl_Image *img)
 Sets the image to use as part of the widget label.

int inside (const Fl_Widget *wgt) const
 Checks if this widget is a child of wgt.

int is_label_copied () const
 Returns whether the current label was assigned with copy_label().

const char * label () const
 Gets the current label text.

void label (const char *text)
 Sets the current label pointer.

void label (Fl_Labeltype a, const char *b)
 Shortcut to set the label text and type in one call.

Fl_Color labelcolor () const
 Gets the label color.

void labelcolor (Fl_Color c)
 Sets the label color.

Fl_Font labelfont () const
 Gets the font to use.

void labelfont (Fl_Font f)
 Sets the font to use.

Fl_Fontsize labelsize () const
 Gets the font size in pixels.

void labelsize (Fl_Fontsize pix)
 Sets the font size in pixels.

Fl_Labeltype labeltype () const
 Gets the label type.

void labeltype (Fl_Labeltype a)
 Sets the label type.

void measure_label (int &ww, int &hh) const
 Sets width ww and height hh accordingly with the label size.

unsigned int output () const
 Returns if a widget is used for output only.

Fl_Groupparent () const
 Returns a pointer to the parent widget.

void parent (Fl_Group *p)
 Internal use only - "for hacks only".

void position (int X, int Y)
 Repositions the window or widget.

void redraw ()
 Schedules the drawing of the widget.

void redraw_label ()
 Schedules the drawing of the label.

virtual void resize (int x, int y, int w, int h)
 Changes the size or position of the widget.

Fl_Color selection_color () const
 Gets the selection color.

void selection_color (Fl_Color a)
 Sets the selection color.

void set_active ()
 Marks the widget as active without sending events or changing focus.

void set_changed ()
 Marks the value of the widget as changed.

void set_output ()
 Sets a widget to output only.

void set_visible ()
 Makes the widget visible.

void set_visible_focus ()
 Enables keyboard focus navigation with this widget.

virtual void show ()
 Makes a widget visible.

void size (int W, int H)
 Changes the size of the widget.

int take_focus ()
 Gives the widget the keyboard focus.

unsigned int takesevents () const
 Returns if the widget is able to take events.

int test_shortcut ()
 Returns true if the widget's label contains the entered '&x' shortcut.

const char * tooltip () const
 Gets the current tooltip text.

void tooltip (const char *text)
 Sets the current tooltip text.

Fl_Windowtop_window () const
 Returns a pointer to the top-level window for the widget.

Fl_Windowtop_window_offset (int &xoff, int &yoff) const
 Finds the x/y offset of the current widget relative to the top-level window.

uchar type () const
 Gets the widget type.

void type (uchar t)
 Sets the widget type.

int use_accents_menu ()
 Returns non zero if MAC_USE_ACCENTS_MENU flag is set, 0 otherwise.

void * user_data () const
 Gets the user data for this widget.

void user_data (void *v)
 Sets the user data for this widget.

unsigned int visible () const
 Returns whether a widget is visible.

unsigned int visible_focus ()
 Checks whether this widget has a visible focus.

void visible_focus (int v)
 Modifies keyboard focus navigation.

int visible_r () const
 Returns whether a widget and all its parents are visible.

int w () const
 Gets the widget width.

Fl_When when () const
 Returns the conditions under which the callback is called.

void when (uchar i)
 Sets the flags used to decide when a callback is called.

Fl_Windowwindow () const
 Returns a pointer to the nearest parent window up the widget hierarchy.

int x () const
 Gets the widget position in its window.

int y () const
 Gets the widget position in its window.

virtual ~Fl_Widget ()
 Destroys the widget.


Protected Member Functions

virtual void draw ()
 Draws the widget.

- Protected Member Functions inherited from Fl_Button
void simulate_key_action ()

- Protected Member Functions inherited from Fl_Widget
void clear_flag (unsigned int c)
 Clears a flag in the flags mask.

void draw_backdrop () const
 If FL_ALIGN_IMAGE_BACKDROP is set, the image or deimage will be drawn.

void draw_box () const
 Draws the widget box according its box style.

void draw_box (Fl_Boxtype t, Fl_Color c) const
 Draws a box of type t, of color c at the widget's position and size.

void draw_box (Fl_Boxtype t, int x, int y, int w, int h, Fl_Color c) const
 Draws a box of type t, of color c at the position X,Y and size W,H.

void draw_focus ()
 draws a focus rectangle around the widget

void draw_focus (Fl_Boxtype t, int x, int y, int w, int h) const
 Draws a focus box for the widget at the given position and size.

void draw_label () const
 Draws the widget's label at the defined label position.

void draw_label (int, int, int, int) const
 Draws the label in an arbitrary bounding box.

 Fl_Widget (int x, int y, int w, int h, const char *label=0L)
 Creates a widget at the given position and size.

unsigned int flags () const
 Gets the widget flags mask.

void h (int v)
 Internal use only.

void set_flag (unsigned int c)
 Sets a flag in the flags mask.

void w (int v)
 Internal use only.

void x (int v)
 Internal use only.

void y (int v)
 Internal use only.


Additional Inherited Members

- Static Public Member Functions inherited from Fl_Widget
static void default_callback (Fl_Widget *cb, void *d)
 The default callback for all widgets that don't set a callback.

static unsigned int label_shortcut (const char *t)
 Returns the Unicode value of the '&x' shortcut in a given text.

static int test_shortcut (const char *, const bool require_alt=false)
 Returns true if the given text t contains the entered '&x' shortcut.

- Protected Types inherited from Fl_Widget
enum  {
  INACTIVE = 1<<0 , INVISIBLE = 1<<1 , OUTPUT = 1<<2 , NOBORDER = 1<<3 ,
  FORCE_POSITION = 1<<4 , NON_MODAL = 1<<5 , SHORTCUT_LABEL = 1<<6 , CHANGED = 1<<7 ,
  OVERRIDE = 1<<8 , VISIBLE_FOCUS = 1<<9 , COPIED_LABEL = 1<<10 , CLIP_CHILDREN = 1<<11 ,
  MENU_WINDOW = 1<<12 , TOOLTIP_WINDOW = 1<<13 , MODAL = 1<<14 , NO_OVERLAY = 1<<15 ,
  GROUP_RELATIVE = 1<<16 , COPIED_TOOLTIP = 1<<17 , FULLSCREEN = 1<<18 , MAC_USE_ACCENTS_MENU = 1<<19 ,
  USERFLAG3 = 1<<29 , USERFLAG2 = 1<<30 , USERFLAG1 = 1<<31
}
 flags possible values enumeration. More...

- Static Protected Member Functions inherited from Fl_Button
static void key_release_timeout (void *)

- Static Protected Attributes inherited from Fl_Button
static Fl_Widget_Trackerkey_release_tracker = 0


Detailed Description

This subclass displays the "on" state by turning on a light, rather than drawing pushed in.

The shape of the "light" is initially set to FL_DOWN_BOX. The color of the light when on is controlled with selection_color(), which defaults to FL_YELLOW.

Buttons generate callbacks when they are clicked by the user. You control exactly when and how by changing the values for type() and when().

P

Constructor & Destructor Documentation

◆ Fl_Light_Button()

Fl_Light_Button::Fl_Light_Button ( int  X,
int  Y,
int  W,
int  H,
const char *  l = 0
)

Creates a new Fl_Light_Button widget using the given position, size, and label string.

The destructor deletes the check button.

Member Function Documentation

◆ draw()

void Fl_Light_Button::draw ( )
protectedvirtual

Draws the widget.

Never call this function directly. FLTK will schedule redrawing whenever needed. If your widget must be redrawn as soon as possible, call redraw() instead.

Override this function to draw your own widgets.

If you ever need to call another widget's draw method from within your own draw() method, e.g. for an embedded scrollbar, you can do it (because draw() is virtual) like this:

Fl_Widget *s = &scroll; // scroll is an embedded Fl_Scrollbar
s->draw(); // calls Fl_Scrollbar::draw()
Fl_Widget is the base class for all widgets in FLTK.
Definition Fl_Widget.H:101

Reimplemented from Fl_Button.

◆ handle()

int Fl_Light_Button::handle ( int  event)
virtual

Handles the specified event.

You normally don't call this method directly, but instead let FLTK do it when the user interacts with the widget.

When implemented in a widget, this function must return 0 if the widget does not use the event or 1 otherwise.

Most of the time, you want to call the inherited handle() method in your overridden method so that you don't short-circuit events that you don't handle. In this last case you should return the callee retval.

Parameters
[in]eventthe kind of event received
Return values
0if the event was not used or understood
1if the event was used and can be deleted
See also
Fl_Event

Reimplemented from Fl_Button.


The documentation for this class was generated from the following files:
