The Fl_Browser widget displays a scrolling list of text lines, and manages all the storage for the text. More...

#include <Fl_Browser.H>

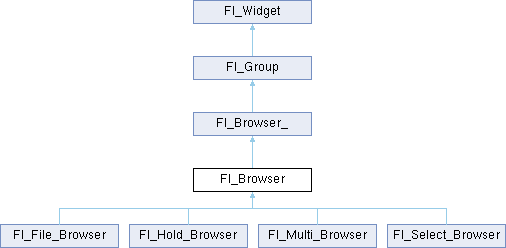

Inheritance diagram for Fl_Browser:

Public Types
enum	Fl_Line_Position { TOP , BOTTOM , MIDDLE }
	For internal use only?

Public Types inherited from Fl_Browser_
enum	{ HORIZONTAL = 1 , VERTICAL = 2 , BOTH = 3 , ALWAYS_ON = 4 , HORIZONTAL_ALWAYS = 5 , VERTICAL_ALWAYS = 6 , BOTH_ALWAYS = 7 }
	Values for has_scrollbar(). More...

Public Member Functions
void	add (const char newtext, void d=0)
	Adds a new line to the end of the browser.

void	bottomline (int line)
	Scrolls the browser so the bottom item in the browser is showing the specified `line`.

void	clear ()
	Removes all the lines in the browser.

char	column_char () const
	Gets the current column separator character.

void	column_char (char c)
	Sets the column separator to c.

const int *	column_widths () const
	Gets the current column width array.

void	column_widths (const int *arr)
	Sets the current array to `arr`.

void *	data (int line) const
	Returns the user data() for specified `line`.

void	data (int line, void *d)
	Sets the user data for specified `line` to `d`.

void	display (int line, int val=1)
	For back compatibility.

int	displayed (int line) const
	Returns non-zero if `line` has been scrolled to a position where it is being displayed.

	Fl_Browser (int X, int Y, int W, int H, const char *L=0)
	The constructor makes an empty browser.

char	format_char () const
	Gets the current format code prefix character, which by default is '@'.

void	format_char (char c)
	Sets the current format code prefix character to `c`.

void	hide ()
	Hides the entire Fl_Browser widget – opposite of show().

void	hide (int line)
	Makes `line` invisible, preventing selection by the user.

Fl_Image *	icon (int line) const
	Returns the icon currently defined for `line`.

void	icon (int line, Fl_Image *icon)
	Set the image icon for `line` to the value `icon`.

void	insert (int line, const char newtext, void d=0)
	Insert a new entry whose label is `newtext` above given `line`, optional data `d`.

void	lineposition (int line, Fl_Line_Position pos)
	Updates the browser so that `line` is shown at position `pos`.

int	load (const char *filename)
	Clears the browser and reads the file, adding each line from the file to the browser.

void	make_visible (int line)
	Make the item at the specified `line` visible().

void	middleline (int line)
	Scrolls the browser so the middle item in the browser is showing the specified `line`.

void	move (int to, int from)
	Line `from` is removed and reinserted at `to`.

void	remove (int line)
	Remove entry for given `line` number, making the browser one line shorter.

void	remove_icon (int line)
	Removes the icon for `line`.

void	replace (int a, const char *b)
	For back compatibility only.

int	select (int line, int val=1)
	Sets the selection state of the item at `line` to the value `val`.

int	selected (int line) const
	Returns 1 if specified `line` is selected, 0 if not.

void	show ()
	Shows the entire Fl_Browser widget – opposite of hide().

void	show (int line)
	Makes `line` visible, and available for selection by user.

int	size () const
	Returns how many lines are in the browser.

void	size (int W, int H)

void	swap (int a, int b)
	Swaps two browser lines `a` and `b`.

const char *	text (int line) const
	Returns the label text for the specified `line`.

void	text (int line, const char *newtext)
	Sets the text for the specified `line` to `newtext`.

Fl_Fontsize	textsize () const
	Gets the default text size (in pixels) for the lines in the browser.

void	textsize (Fl_Fontsize newSize)
	Sets the default text size (in pixels) for the lines in the browser to `newSize`.

int	topline () const
	Returns the line that is currently visible at the top of the browser.

void	topline (int line)
	Scrolls the browser so the top item in the browser is showing the specified `line`.

int	value () const
	Returns the line number of the currently selected line, or 0 if none selected.

void	value (int line)
	Sets the browser's value(), which selects the specified `line`.

int	visible (int line) const
	Returns non-zero if the specified `line` is visible, 0 if hidden.

	~Fl_Browser ()
	The destructor deletes all list items and destroys the browser.

Public Member Functions inherited from Fl_Browser_
int	deselect (int docallbacks=0)
	Deselects all items in the list and returns 1 if the state changed or 0 if it did not.

void	display (void *item)
	Displays the `item`, scrolling the list as necessary.

int	handle (int event)
	Handles the `event` within the normal widget bounding box.

uchar	has_scrollbar () const
	Returns the current scrollbar mode, see Fl_Browser_::has_scrollbar(uchar)

void	has_scrollbar (uchar mode)
	Sets whether the widget should have scrollbars or not (default Fl_Browser_::BOTH).

int	hposition () const
	Gets the horizontal scroll position of the list as a pixel position `pos`.

void	hposition (int)
	Sets the horizontal scroll position of the list to pixel position `pos`.

int	position () const
	Gets the vertical scroll position of the list as a pixel position `pos`.

void	position (int pos)
	Sets the vertical scroll position of the list to pixel position `pos`.

void	resize (int X, int Y, int W, int H)
	Repositions and/or resizes the browser.

void	scrollbar_left ()
	Moves the vertical scrollbar to the lefthand side of the list.

void	scrollbar_right ()
	Moves the vertical scrollbar to the righthand side of the list.

int	scrollbar_size () const
	Gets the current size of the scrollbars' troughs, in pixels.

void	scrollbar_size (int newSize)
	Sets the pixel size of the scrollbars' troughs to `newSize`, in pixels.

int	scrollbar_width () const
	This method has been deprecated, existing for backwards compatibility only.

void	scrollbar_width (int width)
	This method has been deprecated, existing for backwards compatibility only.

int	select (void *item, int val=1, int docallbacks=0)
	Sets the selection state of `item` to `val`, and returns 1 if the state changed or 0 if it did not.

int	select_only (void *item, int docallbacks=0)
	Selects `item` and returns 1 if the state changed or 0 if it did not.

void	sort (int flags=0)
	Sort the items in the browser based on `flags`.

Fl_Color	textcolor () const
	Gets the default text color for the lines in the browser.

void	textcolor (Fl_Color col)
	Sets the default text color for the lines in the browser to color `col`.

Fl_Font	textfont () const
	Gets the default text font for the lines in the browser.

void	textfont (Fl_Font font)
	Sets the default text font for the lines in the browser to `font`.

Fl_Fontsize	textsize () const
	Gets the default text size (in pixels) for the lines in the browser.

void	textsize (Fl_Fontsize newSize)
	Sets the default text size (in pixels) for the lines in the browser to `size`.

Public Member Functions inherited from Fl_Group
Fl_Widget *&	_ddfdesign_kludge ()
	This is for forms compatibility only.

void	add (Fl_Widget &)
	The widget is removed from its current group (if any) and then added to the end of this group.

void	add (Fl_Widget *o)
	See void Fl_Group::add(Fl_Widget &w)

void	add_resizable (Fl_Widget &o)
	Adds a widget to the group and makes it the resizable widget.

Fl_Widget const	array () const
	Returns a pointer to the array of children.

virtual Fl_Group *	as_group ()
	Returns an Fl_Group pointer if this widget is an Fl_Group.

void	begin ()
	Sets the current group so you can build the widget tree by just constructing the widgets.

Fl_Widget *	child (int n) const
	Returns array()[n].

int	children () const
	Returns how many child widgets the group has.

void	clear ()
	Deletes all child widgets from memory recursively.

unsigned int	clip_children ()
	Returns the current clipping mode.

void	clip_children (int c)
	Controls whether the group widget clips the drawing of child widgets to its bounding box.

void	end ()
	Exactly the same as current(this->parent()).

int	find (const Fl_Widget &o) const
	See int Fl_Group::find(const Fl_Widget *w) const.

int	find (const Fl_Widget *) const
	Searches the child array for the widget and returns the index.

	Fl_Group (int, int, int, int, const char *=0)
	Creates a new Fl_Group widget using the given position, size, and label string.

void	focus (Fl_Widget *W)

void	forms_end ()
	This is for forms compatibility only.

int	handle (int)
	Handles the specified event.

void	init_sizes ()
	Resets the internal array of widget sizes and positions.

void	insert (Fl_Widget &, int i)
	The widget is removed from its current group (if any) and then inserted into this group.

void	insert (Fl_Widget &o, Fl_Widget *before)
	This does insert(w, find(before)).

void	remove (Fl_Widget &)
	Removes a widget from the group but does not delete it.

void	remove (Fl_Widget *o)
	Removes the widget `o` from the group.

void	remove (int index)
	Removes the widget at `index` from the group but does not delete it.

Fl_Widget *	resizable () const
	See void Fl_Group::resizable(Fl_Widget *box)

void	resizable (Fl_Widget &o)
	See void Fl_Group::resizable(Fl_Widget *box)

void	resizable (Fl_Widget *o)
	The resizable widget defines the resizing box for the group.

void	resize (int, int, int, int)
	Resizes the Fl_Group widget and all of its children.

virtual	~Fl_Group ()
	The destructor also deletes all the children.

Public Member Functions inherited from Fl_Widget
void	_clear_fullscreen ()

void	_set_fullscreen ()

void	activate ()
	Activates the widget.

unsigned int	active () const
	Returns whether the widget is active.

int	active_r () const
	Returns whether the widget and all of its parents are active.

Fl_Align	align () const
	Gets the label alignment.

void	align (Fl_Align alignment)
	Sets the label alignment.

long	argument () const
	Gets the current user data (long) argument that is passed to the callback function.

void	argument (long v)
	Sets the current user data (long) argument that is passed to the callback function.

virtual class Fl_Gl_Window *	as_gl_window ()
	Returns an Fl_Gl_Window pointer if this widget is an Fl_Gl_Window.

virtual Fl_Window *	as_window ()
	Returns an Fl_Window pointer if this widget is an Fl_Window.

Fl_Boxtype	box () const
	Gets the box type of the widget.

void	box (Fl_Boxtype new_box)
	Sets the box type for the widget.

Fl_Callback_p	callback () const
	Gets the current callback function for the widget.

void	callback (Fl_Callback *cb)
	Sets the current callback function for the widget.

void	callback (Fl_Callback cb, void p)
	Sets the current callback function for the widget.

void	callback (Fl_Callback0 *cb)
	Sets the current callback function for the widget.

void	callback (Fl_Callback1 *cb, long p=0)
	Sets the current callback function for the widget.

unsigned int	changed () const
	Checks if the widget value changed since the last callback.

void	clear_active ()
	Marks the widget as inactive without sending events or changing focus.

void	clear_changed ()
	Marks the value of the widget as unchanged.

void	clear_damage (uchar c=0)
	Clears or sets the damage flags.

void	clear_output ()
	Sets a widget to accept input.

void	clear_visible ()
	Hides the widget.

void	clear_visible_focus ()
	Disables keyboard focus navigation with this widget.

Fl_Color	color () const
	Gets the background color of the widget.

void	color (Fl_Color bg)
	Sets the background color of the widget.

void	color (Fl_Color bg, Fl_Color sel)
	Sets the background and selection color of the widget.

Fl_Color	color2 () const
	For back compatibility only.

void	color2 (unsigned a)
	For back compatibility only.

int	contains (const Fl_Widget *w) const
	Checks if w is a child of this widget.

void	copy_label (const char *new_label)
	Sets the current label.

void	copy_tooltip (const char *text)
	Sets the current tooltip text.

uchar	damage () const
	Returns non-zero if draw() needs to be called.

void	damage (uchar c)
	Sets the damage bits for the widget.

void	damage (uchar c, int x, int y, int w, int h)
	Sets the damage bits for an area inside the widget.

int	damage_resize (int, int, int, int)
	Internal use only.

void	deactivate ()
	Deactivates the widget.

Fl_Image *	deimage ()
	Gets the image that is used as part of the widget label.

const Fl_Image *	deimage () const

void	deimage (Fl_Image &img)
	Sets the image to use as part of the widget label.

void	deimage (Fl_Image *img)
	Sets the image to use as part of the widget label.

void	do_callback ()
	Calls the widget callback.

void	do_callback (Fl_Widget *o, long arg)
	Calls the widget callback.

void	do_callback (Fl_Widget o, void arg=0)
	Calls the widget callback.

void	draw_label (int, int, int, int, Fl_Align) const
	Draws the label in an arbitrary bounding box with an arbitrary alignment.

int	h () const
	Gets the widget height.

Fl_Image *	image ()
	Gets the image that is used as part of the widget label.

const Fl_Image *	image () const

void	image (Fl_Image &img)
	Sets the image to use as part of the widget label.

void	image (Fl_Image *img)
	Sets the image to use as part of the widget label.

int	inside (const Fl_Widget *wgt) const
	Checks if this widget is a child of `wgt`.

int	is_label_copied () const
	Returns whether the current label was assigned with copy_label().

const char *	label () const
	Gets the current label text.

void	label (const char *text)
	Sets the current label pointer.

void	label (Fl_Labeltype a, const char *b)
	Shortcut to set the label text and type in one call.

Fl_Color	labelcolor () const
	Gets the label color.

void	labelcolor (Fl_Color c)
	Sets the label color.

Fl_Font	labelfont () const
	Gets the font to use.

void	labelfont (Fl_Font f)
	Sets the font to use.

Fl_Fontsize	labelsize () const
	Gets the font size in pixels.

void	labelsize (Fl_Fontsize pix)
	Sets the font size in pixels.

Fl_Labeltype	labeltype () const
	Gets the label type.

void	labeltype (Fl_Labeltype a)
	Sets the label type.

void	measure_label (int &ww, int &hh) const
	Sets width ww and height hh accordingly with the label size.

unsigned int	output () const
	Returns if a widget is used for output only.

Fl_Group *	parent () const
	Returns a pointer to the parent widget.

void	parent (Fl_Group *p)
	Internal use only - "for hacks only".

void	position (int X, int Y)
	Repositions the window or widget.

void	redraw ()
	Schedules the drawing of the widget.

void	redraw_label ()
	Schedules the drawing of the label.

Fl_Color	selection_color () const
	Gets the selection color.

void	selection_color (Fl_Color a)
	Sets the selection color.

void	set_active ()
	Marks the widget as active without sending events or changing focus.

void	set_changed ()
	Marks the value of the widget as changed.

void	set_output ()
	Sets a widget to output only.

void	set_visible ()
	Makes the widget visible.

void	set_visible_focus ()
	Enables keyboard focus navigation with this widget.

void	size (int W, int H)
	Changes the size of the widget.

int	take_focus ()
	Gives the widget the keyboard focus.

unsigned int	takesevents () const
	Returns if the widget is able to take events.

int	test_shortcut ()
	Returns true if the widget's label contains the entered '&x' shortcut.

const char *	tooltip () const
	Gets the current tooltip text.

void	tooltip (const char *text)
	Sets the current tooltip text.

Fl_Window *	top_window () const
	Returns a pointer to the top-level window for the widget.

Fl_Window *	top_window_offset (int &xoff, int &yoff) const
	Finds the x/y offset of the current widget relative to the top-level window.

uchar	type () const
	Gets the widget type.

void	type (uchar t)
	Sets the widget type.

int	use_accents_menu ()
	Returns non zero if MAC_USE_ACCENTS_MENU flag is set, 0 otherwise.

void *	user_data () const
	Gets the user data for this widget.

void	user_data (void *v)
	Sets the user data for this widget.

unsigned int	visible () const
	Returns whether a widget is visible.

unsigned int	visible_focus ()
	Checks whether this widget has a visible focus.

void	visible_focus (int v)
	Modifies keyboard focus navigation.

int	visible_r () const
	Returns whether a widget and all its parents are visible.

int	w () const
	Gets the widget width.

Fl_When	when () const
	Returns the conditions under which the callback is called.

void	when (uchar i)
	Sets the flags used to decide when a callback is called.

Fl_Window *	window () const
	Returns a pointer to the nearest parent window up the widget hierarchy.

int	x () const
	Gets the widget position in its window.

int	y () const
	Gets the widget position in its window.

virtual	~Fl_Widget ()
	Destroys the widget.

Protected Member Functions
FL_BLINE *	_remove (int line)
	Removes the item at the specified `line`.

FL_BLINE *	find_line (int line) const
	Returns the item for specified `line`.

int	full_height () const
	The height of the entire list of all visible() items in pixels.

int	incr_height () const
	The default 'average' item height (including inter-item spacing) in pixels.

void	insert (int line, FL_BLINE *item)
	Insert specified `item` above `line`.

void *	item_at (int line) const
	Return the item at specified `line`.

void	item_draw (void *item, int X, int Y, int W, int H) const
	Draws `item` at the position specified by `X` `Y` `W` `H`.

void *	item_first () const
	Returns the very first item in the list.

int	item_height (void *item) const
	Returns height of `item` in pixels.

void *	item_last () const
	Returns the very last item in the list.

void *	item_next (void *item) const
	Returns the next item after `item`.

void *	item_prev (void *item) const
	Returns the previous item before `item`.

void	item_select (void *item, int val)
	Change the selection state of `item` to the value `val`.

int	item_selected (void *item) const
	See if `item` is selected.

void	item_swap (void a, void b)
	Swap the items `a` and `b`.

const char *	item_text (void *item) const
	Returns the label text for `item`.

int	item_width (void *item) const
	Returns width of `item` in pixels.

int	lineno (void *item) const
	Returns line number corresponding to `item`, or zero if not found.

void	swap (FL_BLINE a, FL_BLINE b)
	Swap the two items `a` and `b`.

Protected Member Functions inherited from Fl_Browser_
void	bbox (int &X, int &Y, int &W, int &H) const
	Returns the bounding box for the interior of the list's display window, inside the scrollbars.

void	deleting (void *item)
	This method should be used when `item` is being deleted from the list.

int	displayed (void *item) const
	Returns non-zero if `item` has been scrolled to a position where it is being displayed.

void	draw ()
	Draws the list within the normal widget bounding box.

void *	find_item (int ypos)
	This method returns the item under mouse y position `ypos`.

	Fl_Browser_ (int X, int Y, int W, int H, const char *L=0)
	The constructor makes an empty browser.

virtual int	full_width () const
	This method may be provided by the subclass to indicate the full width of the item list, in pixels.

void	inserting (void a, void b)
	This method should be used when an item is in the process of being inserted into the list.

virtual int	item_quick_height (void *item) const
	This method may be provided by the subclass to return the height of the `item`, in pixels.

int	leftedge () const
	This method returns the X position of the left edge of the list area after adjusting for the scrollbar and border, if any.

void	new_list ()
	This method should be called when the list data is completely replaced or cleared.

void	redraw_line (void *item)
	This method should be called when the contents of `item` has changed, but not its height.

void	redraw_lines ()
	This method will cause the entire list to be redrawn.

void	replacing (void a, void b)
	This method should be used when item `a` is being replaced by item `b`.

void *	selection () const
	Returns the item currently selected, or NULL if there is no selection.

void	swapping (void a, void b)
	This method should be used when two items `a` and `b` are being swapped.

void *	top () const
	Returns the item that appears at the top of the list.

Protected Member Functions inherited from Fl_Group
void	draw ()
	Draws the widget.

void	draw_child (Fl_Widget &widget) const
	Forces a child to redraw.

void	draw_children ()
	Draws all children of the group.

void	draw_outside_label (const Fl_Widget &widget) const
	Parents normally call this to draw outside labels of child widgets.

int *	sizes ()
	Returns the internal array of widget sizes and positions.

void	update_child (Fl_Widget &widget) const
	Draws a child only if it needs it.

Protected Member Functions inherited from Fl_Widget
void	clear_flag (unsigned int c)
	Clears a flag in the flags mask.

void	draw_backdrop () const
	If FL_ALIGN_IMAGE_BACKDROP is set, the image or deimage will be drawn.

void	draw_box () const
	Draws the widget box according its box style.

void	draw_box (Fl_Boxtype t, Fl_Color c) const
	Draws a box of type t, of color c at the widget's position and size.

void	draw_box (Fl_Boxtype t, int x, int y, int w, int h, Fl_Color c) const
	Draws a box of type t, of color c at the position X,Y and size W,H.

void	draw_focus ()
	draws a focus rectangle around the widget

void	draw_focus (Fl_Boxtype t, int x, int y, int w, int h) const
	Draws a focus box for the widget at the given position and size.

void	draw_label () const
	Draws the widget's label at the defined label position.

void	draw_label (int, int, int, int) const
	Draws the label in an arbitrary bounding box.

	Fl_Widget (int x, int y, int w, int h, const char *label=0L)
	Creates a widget at the given position and size.

unsigned int	flags () const
	Gets the widget flags mask.

void	h (int v)
	Internal use only.

void	set_flag (unsigned int c)
	Sets a flag in the flags mask.

void	w (int v)
	Internal use only.

void	x (int v)
	Internal use only.

void	y (int v)
	Internal use only.

Additional Inherited Members
Static Public Member Functions inherited from Fl_Group
static Fl_Group *	current ()
	Returns the currently active group.

static void	current (Fl_Group *g)
	Sets the current group.

Static Public Member Functions inherited from Fl_Widget
static void	default_callback (Fl_Widget cb, void d)
	The default callback for all widgets that don't set a callback.

static unsigned int	label_shortcut (const char *t)
	Returns the Unicode value of the '&x' shortcut in a given text.

static int	test_shortcut (const char *, const bool require_alt=false)
	Returns true if the given text `t` contains the entered '&x' shortcut.

Public Attributes inherited from Fl_Browser_
Fl_Scrollbar	hscrollbar
	Horizontal scrollbar.

Fl_Scrollbar	scrollbar
	Vertical scrollbar.

Protected Types inherited from Fl_Widget
enum	{ INACTIVE = 1<<0 , INVISIBLE = 1<<1 , OUTPUT = 1<<2 , NOBORDER = 1<<3 , FORCE_POSITION = 1<<4 , NON_MODAL = 1<<5 , SHORTCUT_LABEL = 1<<6 , CHANGED = 1<<7 , OVERRIDE = 1<<8 , VISIBLE_FOCUS = 1<<9 , COPIED_LABEL = 1<<10 , CLIP_CHILDREN = 1<<11 , MENU_WINDOW = 1<<12 , TOOLTIP_WINDOW = 1<<13 , MODAL = 1<<14 , NO_OVERLAY = 1<<15 , GROUP_RELATIVE = 1<<16 , COPIED_TOOLTIP = 1<<17 , FULLSCREEN = 1<<18 , MAC_USE_ACCENTS_MENU = 1<<19 , USERFLAG3 = 1<<29 , USERFLAG2 = 1<<30 , USERFLAG1 = 1<<31 }
	flags possible values enumeration. More...

Detailed Description

The Fl_Browser widget displays a scrolling list of text lines, and manages all the storage for the text.

This is not a text editor or spreadsheet! But it is useful for showing a vertical list of named objects to the user.

Each line in the browser is identified by number. The numbers start at one (this is so that zero can be reserved for "no line" in the selective browsers). Unless otherwise noted, the methods do not check to see if the passed line number is in range and legal. It must always be greater than zero and <= size().

Each line contains a null-terminated string of text and a void * data pointer. The text string is displayed, the void * pointer can be used by the callbacks to reference the object the text describes.

The base class does nothing when the user clicks on it. The subclasses Fl_Select_Browser, Fl_Hold_Browser, and Fl_Multi_Browser react to user clicks to select lines in the browser and do callbacks.

The base class Fl_Browser_ provides the scrolling and selection mechanisms of this and all the subclasses, but the dimensions and appearance of each item are determined by the subclass. You can use Fl_Browser_ to display information other than text, or text that is dynamically produced from your own data structures. If you find that loading the browser is a lot of work or is inefficient, you may want to make a subclass of Fl_Browser_.

Some common coding patterns used for working with Fl_Browser:

// How to loop through all the items in the browser
for ( int t=1; t<=browser->size(); t++ ) {       // index 1 based..!
    printf("item #%d, label='%s'\n", t, browser->text(t));
}

Note: If you are subclassing Fl_Browser, it's more efficient to use the protected methods item_first() and item_next(), since Fl_Browser internally uses linked lists to manage the browser's items. For more info, see find_item(int).

Constructor & Destructor Documentation

◆ Fl_Browser()

Fl_Browser::Fl_Browser	(	int	X,
		int	Y,
		int	W,
		int	H,
		const char *	L = `0`
	)

The constructor makes an empty browser.

Parameters

[in]	X,Y,W,H	position and size.
[in]	L	label string, may be NULL.

Member Function Documentation

◆ _remove()

FL_BLINE * Fl_Browser::_remove ( int line )

protected

Removes the item at the specified line.

Caveat: See efficiency note in find_line(). You must call redraw() to make any changes visible.

Parameters

[in] line The line number to be removed. (1 based) Must be in range!

Returns: Pointer to browser item that was removed (and is no longer valid).

See also: add(), insert(), remove(), swap(int,int), clear()

◆ add()

void Fl_Browser::add	(	const char *	newtext,
		void *	d = `0`
	)

Adds a new line to the end of the browser.

The text string newtext may contain format characters; see format_char() for details. newtext is copied using the strdup() function, and can be NULL to make a blank line.

The optional void* argument d will be the data() for the new item.

Parameters

[in]	newtext	The label text used for the added item
[in]	d	Optional user data() for the item (0 if unspecified)

See also: add(), insert(), remove(), swap(int,int), clear()

◆ bottomline()

void Fl_Browser::bottomline ( int line )

inline

Scrolls the browser so the bottom item in the browser is showing the specified line.

Parameters

[in] line The line to be displayed at the bottom.

See also: topline(), middleline(), bottomline(), displayed(), lineposition()

◆ clear()

void Fl_Browser::clear ( )

Removes all the lines in the browser.

See also: add(), insert(), remove(), swap(int,int), clear()

◆ column_char() [1/2]

char Fl_Browser::column_char ( ) const

inline

Gets the current column separator character.

The default is '\t' (tab).

See also: column_char(), column_widths()

◆ column_char() [2/2]

void Fl_Browser::column_char ( char c )

inline

Sets the column separator to c.

This will only have an effect if you also set column_widths(). The default is '\t' (tab).

See also: column_char(), column_widths()

◆ column_widths() [1/2]

const int * Fl_Browser::column_widths ( ) const

inline

Gets the current column width array.

This array is zero-terminated and specifies the widths in pixels of each column. The text is split at each column_char() and each part is formatted into it's own column. After the last column any remaining text is formatted into the space between the last column and the right edge of the browser, even if the text contains instances of column_char() . The default value is a one-element array of just a zero, which means there are no columns.

Example:

Fl_Browser *b = new Fl_Browser(..);
static int widths[] = { 50, 50, 50, 70, 70, 40, 40, 70, 70, 50, 0 };  // widths for each column
b->column_widths(widths); // assign array to widget
b->column_char('\t');     // use tab as the column character
b->add("USER\tPID\tCPU\tMEM\tVSZ\tRSS\tTTY\tSTAT\tSTART\tTIME\tCOMMAND");
b->add("root\t2888\t0.0\t0.0\t1352\t0\ttty3\tSW\tAug15\t0:00\t@b@f/sbin/mingetty tty3");
b->add("root\t13115\t0.0\t0.0\t1352\t0\ttty2\tSW\tAug30\t0:00\t@b@f/sbin/mingetty tty2");
[..]

See also: column_char(), column_widths()

◆ column_widths() [2/2]

void Fl_Browser::column_widths ( const int * arr )

inline

Sets the current array to arr.

Make sure the last entry is zero.

See also: column_char(), column_widths()

◆ data() [1/2]

void * Fl_Browser::data ( int line ) const

Returns the user data() for specified line.

Return value can be NULL if line is out of range or no user data() was defined. The parameter line is 1 based (1 will be the first item in the list).

Parameters

[in] line The line number of the item whose data() is returned. (1 based)

Returns: The user data pointer (can be NULL)

◆ data() [2/2]

void Fl_Browser::data	(	int	line,
		void *	d
	)

Sets the user data for specified line to d.

Does nothing if line is out of range.

Parameters

[in]	line	The line of the item whose data() is to be changed. (1 based)
[in]	d	The new data to be assigned to the item. (can be NULL)

◆ display()

void Fl_Browser::display	(	int	line,
		int	val = `1`
	)

For back compatibility.

This calls show(line) if val is true, and hide(line) otherwise. If val is not specified, the default is 1 (makes the line visible).

See also: show(int), hide(int), display(), visible(), make_visible()

◆ displayed()

int Fl_Browser::displayed ( int line ) const

inline

Returns non-zero if line has been scrolled to a position where it is being displayed.

Checks to see if the item's vertical position is within the top and bottom edges of the display window. This does NOT take into account the hide()/show() status of the widget or item.

Parameters

[in] line The line to be checked

Returns: 1 if visible, 0 if not visible.

See also: topline(), middleline(), bottomline(), displayed(), lineposition()

◆ find_line()

FL_BLINE * Fl_Browser::find_line ( int line ) const

protected

Returns the item for specified line.

Note: This call is slow. It's fine for e.g. responding to user clicks, but slow if called often, such as in a tight sorting loop. Finding an item 'by line' involves a linear lookup on the internal linked list. The performance hit can be significant if the browser's contents is large, and the method is called often (e.g. during a sort). If you're writing a subclass, use the protected methods item_first(), item_next(), etc. to access the internal linked list more efficiently.

Parameters

[in] line The line number of the item to return. (1 based)

Return values

item	that was found.
NULL	if line is out of range.

See also: item_at(), find_line(), lineno()

◆ format_char() [1/2]

char Fl_Browser::format_char ( ) const

inline

Gets the current format code prefix character, which by default is '@'.

A string of formatting codes at the start of each column are stripped off and used to modify how the rest of the line is printed:

'@.' Print rest of line, don't look for more '@' signs
'@@' Print rest of line starting with '@'
'@l' Use a LARGE (24 point) font
'@m' Use a medium large (18 point) font
'@s' Use a small (11 point) font
'@b' Use a bold font (adds FL_BOLD to font)
'@i' Use an italic font (adds FL_ITALIC to font)
'@f' or '@t' Use a fixed-pitch font (sets font to FL_COURIER)
'@c' Center the line horizontally
'@r' Right-justify the text
'@B0', '@B1', ... '@B255' Fill the backgound with fl_color(n)
'@C0', '@C1', ... '@C255' Use fl_color(n) to draw the text
'@F0', '@F1', ... Use fl_font(n) to draw the text
'@S1', '@S2', ... Use point size n to draw the text
'@u' or '@_' Underline the text.
'@-' draw an engraved line through the middle.

Notice that the '@.' command can be used to reliably terminate the parsing. To print a random string in a random color, use sprintf("@C%d@.%s", color, string) and it will work even if the string starts with a digit or has the format character in it.

◆ format_char() [2/2]

void Fl_Browser::format_char ( char c )

inline

Sets the current format code prefix character to c.

The default prefix is '@'. Set the prefix to 0 to disable formatting.

See also: format_char() for list of '@' codes

◆ full_height()

int Fl_Browser::full_height ( ) const

protectedvirtual

The height of the entire list of all visible() items in pixels.

This returns the accumulated height of all the items in the browser that are not hidden with hide(), including items scrolled off screen.

Returns: The accumulated size of all the visible items in pixels.

See also: item_height(), item_width(),
incr_height(), full_height()

Reimplemented from Fl_Browser_.

◆ hide() [1/2]

void Fl_Browser::hide ( )

inlinevirtual

Hides the entire Fl_Browser widget – opposite of show().

Reimplemented from Fl_Widget.

◆ hide() [2/2]

void Fl_Browser::hide ( int line )

Makes line invisible, preventing selection by the user.

The line can still be selected under program control. This changes the full_height() if the state was changed. When a line is made invisible, lines below it are moved up in the display. redraw() is called automatically if a change occurred.

Parameters

[in] line The line to be hidden. (1 based)

See also: show(int), hide(int), display(), visible(), make_visible()

◆ icon() [1/2]

Fl_Image * Fl_Browser::icon ( int line ) const

Returns the icon currently defined for line.

If no icon is defined, NULL is returned.

Parameters

[in] line The line whose icon is returned.

Returns: The icon defined, or NULL if none.

◆ icon() [2/2]

void Fl_Browser::icon	(	int	line,
		Fl_Image *	icon
	)

Set the image icon for line to the value icon.

Caller is responsible for keeping the icon allocated. The line is automatically redrawn.

Parameters

[in]	line	The line to be modified. If out of range, nothing is done.
[in]	icon	The image icon to be assigned to the `line`. If NULL, any previous icon is removed.

◆ incr_height()

int Fl_Browser::incr_height ( ) const

protectedvirtual

The default 'average' item height (including inter-item spacing) in pixels.

This currently returns textsize() + 2.

Returns: The value in pixels.

See also: item_height(), item_width(),
incr_height(), full_height()

Reimplemented from Fl_Browser_.

◆ insert() [1/2]

void Fl_Browser::insert	(	int	line,
		const char *	newtext,
		void *	d = `0`
	)

Insert a new entry whose label is newtext above given line, optional data d.

Text may contain format characters; see format_char() for details. newtext is copied using the strdup() function, and can be NULL to make a blank line.

The optional void * argument d will be the data() of the new item.

Parameters

[in]	line	Line position for insert. (1 based) If `line` > size(), the entry will be added at the end.
[in]	newtext	The label text for the new line.
[in]	d	Optional pointer to user data to be associated with the new line.

◆ insert() [2/2]

void Fl_Browser::insert	(	int	line,
		FL_BLINE *	item
	)

protected

Insert specified item above line.

If line > size() then the line is added to the end.

Caveat: See efficiency note in find_line().

Parameters

[in]	line	The new line will be inserted above this line (1 based).
[in]	item	The item to be added.

◆ item_at()

void * Fl_Browser::item_at ( int line ) const

inlineprotectedvirtual

Return the item at specified line.

Parameters

[in] line The line of the item to return. (1 based)

Returns: The item, or NULL if line out of range.

See also: item_at(), find_line(), lineno()

Reimplemented from Fl_Browser_.

◆ item_draw()

void Fl_Browser::item_draw	(	void *	item,
		int	X,
		int	Y,
		int	W,
		int	H
	)		const

protectedvirtual

Draws item at the position specified by X Y W H.

The W and H values are used for clipping. Should only be called within the context of an FLTK draw().

Parameters

[in]	item	The item to be drawn
[in]	X,Y,W,H	position and size.

Implements Fl_Browser_.

◆ item_first()

void * Fl_Browser::item_first ( ) const

protectedvirtual

Returns the very first item in the list.

Example of use:

// Walk the browser from beginning to end
for ( void *i=item_first(); i; i=item_next(i) ) {
    printf("item label='%s'\n", item_text(i));
}

Returns: The first item, or NULL if list is empty.

See also: item_first(), item_last(), item_next(), item_prev()

Implements Fl_Browser_.

◆ item_height()

int Fl_Browser::item_height ( void * item ) const

protectedvirtual

Returns height of item in pixels.

This takes into account embedded @ codes within the text() label.

Parameters

[in] item The item whose height is returned.

Returns: The height of the item in pixels.

See also: item_height(), item_width(),
incr_height(), full_height()

Implements Fl_Browser_.

◆ item_last()

void * Fl_Browser::item_last ( ) const

protectedvirtual

Returns the very last item in the list.

Example of use:

// Walk the browser in reverse, from end to start
for ( void *i=item_last(); i; i=item_prev(i) ) {
    printf("item label='%s'\n", item_text(i));
}

Returns: The last item, or NULL if list is empty.

See also: item_first(), item_last(), item_next(), item_prev()

Reimplemented from Fl_Browser_.

◆ item_next()

void * Fl_Browser::item_next ( void * item ) const

protectedvirtual

Returns the next item after item.

Parameters

[in] item The 'current' item

Returns: The next item after item, or NULL if there are none after this one.

See also: item_first(), item_last(), item_next(), item_prev()

Implements Fl_Browser_.

◆ item_prev()

void * Fl_Browser::item_prev ( void * item ) const

protectedvirtual

Returns the previous item before item.

Parameters

[in] item The 'current' item

Returns: The previous item before item, or NULL if there are none before this one.

See also: item_first(), item_last(), item_next(), item_prev()

Implements Fl_Browser_.

◆ item_select()

void Fl_Browser::item_select	(	void *	item,
		int	val
	)

protectedvirtual

Change the selection state of item to the value val.

Parameters

[in]	item	The item to be changed.
[in]	val	The new selection state: 1 selects, 0 de-selects.

See also: select(), selected(), value(), item_select(), item_selected()

Reimplemented from Fl_Browser_.

◆ item_selected()

int Fl_Browser::item_selected ( void * item ) const

protectedvirtual

See if item is selected.

Parameters

[in] item The item whose selection state is to be checked.

Returns: 1 if selected, 0 if not.

See also: select(), selected(), value(), item_select(), item_selected()

Reimplemented from Fl_Browser_.

◆ item_swap()

void Fl_Browser::item_swap	(	void *	a,
		void *	b
	)

inlineprotectedvirtual

Swap the items a and b.

You must call redraw() to make any changes visible.

Parameters

[in] a,b the items to be swapped.

See also: swap(int,int), item_swap()

Reimplemented from Fl_Browser_.

◆ item_text()

const char * Fl_Browser::item_text ( void * item ) const

protectedvirtual

Returns the label text for item.

Parameters

[in] item The item whose label text is returned.

Returns: The item's text string. (Can be NULL)

Reimplemented from Fl_Browser_.

◆ item_width()

int Fl_Browser::item_width ( void * item ) const

protectedvirtual

Returns width of item in pixels.

This takes into account embedded @ codes within the text() label.

Parameters

[in] item The item whose width is returned.

Returns: The width of the item in pixels.

See also: item_height(), item_width(),
incr_height(), full_height()

Implements Fl_Browser_.

◆ lineno()

int Fl_Browser::lineno ( void * item ) const

protected

Returns line number corresponding to item, or zero if not found.

Caveat: See efficiency note in find_line().

Parameters

[in] item The item to be found

Returns: The line number of the item, or 0 if not found.

See also: item_at(), find_line(), lineno()

◆ lineposition()

void Fl_Browser::lineposition	(	int	line,
		Fl_Line_Position	pos
	)

Updates the browser so that line is shown at position pos.

Parameters

[in]	line	line number. (1 based)
[in]	pos	position.

See also: topline(), middleline(), bottomline()

◆ load()

int Fl_Browser::load ( const char * filename )

Clears the browser and reads the file, adding each line from the file to the browser.

If the filename is NULL or a zero-length string then this just clears the browser. This returns zero if there was any error in opening or reading the file, in which case errno is set to the system error. The data() of each line is set to NULL.

Parameters

[in] filename The filename to load

Returns: 1 if OK, 0 on error (errno has reason)

See also: add()

◆ make_visible()

void Fl_Browser::make_visible ( int line )

inline

Make the item at the specified line visible().

Functionally similar to show(int line). If line is out of range, redisplay top or bottom of list as appropriate.

Parameters

[in] line The line to be made visible.

See also: show(int), hide(int), display(), visible(), make_visible()

◆ middleline()

void Fl_Browser::middleline ( int line )

inline

Scrolls the browser so the middle item in the browser is showing the specified line.

Parameters

[in] line The line to be displayed in the middle.

See also: topline(), middleline(), bottomline(), displayed(), lineposition()

◆ move()

void Fl_Browser::move	(	int	to,
		int	from
	)

Line from is removed and reinserted at to.

Note: to is calculated after line from gets removed.

Parameters

[in]	to	Destination line number (calculated after line `from` is removed)
[in]	from	Line number of item to be moved

◆ remove()

void Fl_Browser::remove ( int line )

Remove entry for given line number, making the browser one line shorter.

You must call redraw() to make any changes visible.

Parameters

[in] line Line to be removed. (1 based)
If line is out of range, no action is taken.

See also: add(), insert(), remove(), swap(int,int), clear()

◆ remove_icon()

void Fl_Browser::remove_icon ( int line )

Removes the icon for line.

It's ok to remove an icon if none has been defined.

Parameters

[in] line The line whose icon is to be removed.

◆ select()

int Fl_Browser::select	(	int	line,
		int	val = `1`
	)

Sets the selection state of the item at line to the value val.

If val is not specified, the default is 1 (selects the item).

Parameters

[in]	line	The line number of the item to be changed. (1 based)
[in]	val	The new selection state (1=select, 0=de-select).

Returns: 1 if the state changed, 0 if not.

See also: select(), selected(), value(), item_select(), item_selected()

◆ selected()

int Fl_Browser::selected ( int line ) const

Returns 1 if specified line is selected, 0 if not.

Parameters

[in] line The line being checked (1 based)

Returns: 1 if item selected, 0 if not.

See also: select(), selected(), value(), item_select(), item_selected()

◆ show() [1/2]

void Fl_Browser::show ( )

inlinevirtual

Shows the entire Fl_Browser widget – opposite of hide().

Reimplemented from Fl_Widget.

◆ show() [2/2]

void Fl_Browser::show ( int line )

Makes line visible, and available for selection by user.

Opposite of hide(int). This changes the full_height() if the state was changed. redraw() is called automatically if a change occurred.

Parameters

[in] line The line to be shown. (1 based)

See also: show(int), hide(int), display(), visible(), make_visible()

◆ size()

int Fl_Browser::size ( ) const

inline

Returns how many lines are in the browser.

The last line number is equal to this. Returns 0 if browser is empty.

◆ swap() [1/2]

void Fl_Browser::swap	(	FL_BLINE *	a,
		FL_BLINE *	b
	)

protected

Swap the two items a and b.

Uses swapping() to ensure list updates correctly.

Parameters

[in] a,b The two items to be swapped.

See also: swap(int,int), item_swap()

◆ swap() [2/2]

void Fl_Browser::swap	(	int	a,
		int	b
	)

Swaps two browser lines a and b.

You must call redraw() to make any changes visible.

Parameters

[in] a,b The two lines to be swapped. (both 1 based)

See also: swap(int,int), item_swap()

◆ text() [1/2]

const char * Fl_Browser::text ( int line ) const

Returns the label text for the specified line.

Return value can be NULL if line is out of range or unset. The parameter line is 1 based.

Parameters

[in] line The line number of the item whose text is returned. (1 based)

Returns: The text string (can be NULL)

◆ text() [2/2]

void Fl_Browser::text	(	int	line,
		const char *	newtext
	)

Sets the text for the specified line to newtext.

Text may contain format characters; see format_char() for details. newtext is copied using the strdup() function, and can be NULL to make a blank line.

Does nothing if line is out of range.

Parameters

[in]	line	The line of the item whose text will be changed. (1 based)
[in]	newtext	The new string to be assigned to the item.

◆ textsize()

void Fl_Browser::textsize ( Fl_Fontsize newSize )

Sets the default text size (in pixels) for the lines in the browser to newSize.

This method recalculates all item heights and caches the total height internally for optimization of later item changes. This can be slow if there are many items in the browser.

It returns immediately (w/o recalculation) if newSize equals the current textsize().

You may need to call redraw() to see the effect and to have the scrollbar positions recalculated.

You should set the text size before populating the browser with items unless you really need to change the size later.

◆ topline() [1/2]

int Fl_Browser::topline ( ) const

Returns the line that is currently visible at the top of the browser.

If there is no vertical scrollbar then this will always return 1.

Returns: The lineno() of the top() of the browser.

◆ topline() [2/2]

void Fl_Browser::topline ( int line )

inline

Scrolls the browser so the top item in the browser is showing the specified line.

Parameters

[in] line The line to be displayed at the top.

See also: topline(), middleline(), bottomline(), displayed(), lineposition()

◆ value() [1/2]

int Fl_Browser::value ( ) const

Returns the line number of the currently selected line, or 0 if none selected.

Returns: The line number of current selection, or 0 if none selected.

See also: select(), selected(), value(), item_select(), item_selected()

◆ value() [2/2]

void Fl_Browser::value ( int line )

inline

Sets the browser's value(), which selects the specified line.

This is the same as calling select(line).

See also: select(), selected(), value(), item_select(), item_selected()

◆ visible()

int Fl_Browser::visible ( int line ) const

Returns non-zero if the specified line is visible, 0 if hidden.

Use show(int), hide(int), or make_visible(int) to change an item's visible state.

Parameters

[in] line The line in the browser to be tested. (1 based)

See also: show(int), hide(int), display(), visible(), make_visible()

The documentation for this class was generated from the following files:

Fl_Browser.H
Fl_Browser.cxx
Fl_Browser_load.cxx

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Fl_Browser()

Member Function Documentation

◆ _remove()

◆ add()

◆ bottomline()

◆ clear()

◆ column_char() [1/2]

◆ column_char() [2/2]

◆ column_widths() [1/2]

◆ column_widths() [2/2]

◆ data() [1/2]

◆ data() [2/2]

◆ display()

◆ displayed()

◆ find_line()

◆ format_char() [1/2]

◆ format_char() [2/2]

◆ full_height()

◆ hide() [1/2]

◆ hide() [2/2]

◆ icon() [1/2]

◆ icon() [2/2]

◆ incr_height()

◆ insert() [1/2]

◆ insert() [2/2]

◆ item_at()

◆ item_draw()

◆ item_first()

◆ item_height()

◆ item_last()

◆ item_next()

◆ item_prev()

◆ item_select()

◆ item_selected()

◆ item_swap()

◆ item_text()

◆ item_width()

◆ lineno()

◆ lineposition()

◆ load()

◆ make_visible()

◆ middleline()

◆ move()

◆ remove()

◆ remove_icon()

◆ select()

◆ selected()

◆ show() [1/2]

◆ show() [2/2]

◆ size()

◆ swap() [1/2]

◆ swap() [2/2]

◆ text() [1/2]

◆ text() [2/2]

◆ textsize()

◆ topline() [1/2]

◆ topline() [2/2]

◆ value() [1/2]

◆ value() [2/2]

◆ visible()
