Programming with FLUID

This chapter shows how to use the Fast Light User-Interface Designer ("FLUID") to create your GUIs. FLUID is a graphical editor that is used to produce FLTK source code.

FLUID edits and saves its state in .fl files. These files are text, and you can (with care) edit them in a text editor, perhaps to get some special effects.

FLUID can "compile" the .fl file into a .cxx and a .h file. The .cxx file defines all the objects from the .fl file and the .h file declares all the global ones.

A simple program can be made by putting all your code (including a main() function) into the .fl file and thus making the .cxx file a single source file to compile. Most programs are more complex than this, so you write other .cxx files that call the FLUID functions. These .cxx files must #include the .h file or they can #include the .cxx file so it still appears to be a single source file.


Normally the FLUID file defines one or more functions or classes which output C++ code. Each function defines a one or more FLTK windows, and all the widgets that go inside those windows.

Widgets created by FLUID are either "named", "complex named" or "unnamed". A named widget has a legal C++ variable identifier as its name (i.e. only alphanumeric and underscore). In this case FLUID defines a global variable or class member that will point at the widget after the function defining it is called. A complex named object has punctuation such as '.' or '->' or any other symbols in its name. In this case FLUID assigns a pointer to the widget to the name, but does not attempt to declare it. This can be used to get the widgets into structures. An unnamed widget has a blank name and no pointer is stored.

Widgets may either call a named callback function that you write in another source file, or you can supply a small piece of C++ source and FLUID will write a private callback function into the .cxx file.

Running FLUID Under UNIX

To run FLUID under UNIX, type:

fluid filename.fl &

to edit the .fl file filename.fl. If the file does not exist you will get an error pop-up, but if you dismiss it you will be editing a blank file of that name. You can run FLUID without any name, in which case you will be editing an unnamed blank setup (but you can use save-as to write it to a file).

You can provide any of the standard FLTK switches before the filename:

-display host:n.n
-geometry WxH+X+Y
-title windowtitle
-name classname
-iconic
-fg color
-bg color
-bg2 color

Changing the colors may be useful to see what your interface will look at if the user calls it with the same switches.

If you don't go into the background (with '&' then you will be able to abort FLUID by typing ^C on the terminal. If there are any unsaved changes it will ask if you want to save them.

Running FLUID Under Microsoft Windows

To run FLUID under WIN32, double-click on the FLUID.exe file. You can also run FLUID from the Command Prompt window (FLUID always runs in the background under WIN32).

Compiling .fl files

FLUID can also be called as a command-line "compiler" to create the .cxx and .h file from a .fl file. To do this type:

fluid -c filename.fl

This will read the filename.fl file and write filename.cxx and filename.h. The directory will be stripped, so they are written to the current directory always. If there are any errors reading or writing the files it will print the error and exit with a non-zero code. In a makefile you can use a line like this:

my_panels.h my_panels.cxx: my_panels.fl
        FLUID -c my_panels.fl

Some versions of make will accept rules like this to allow all .fl files found to be compiled:

.SUFFIXES: .fl .cxx .h
.fl.h .fl.cxx:
        FLUID -c $<

A Short Tutorial

FLUID is an amazingly powerful little program. However, this power comes at a price, as it is not always obvious how to accomplish seemingly simple tasks with it. This tutorial will show you how to generate a complete user interface class with FLUID that is used for the CubeView program below.


The window is of class CubeViewUI, and is completely generated by FLUID, including class member functions. The central display of the cube is a separate subclass of fltk::GlWindow called CubeView. CubeViewUI manages CubeView using callbacks from the various sliders and rollers to manipulate the viewing angle and zoom of CubeView.

At the completion of this tutorial you will (hopefully) understand how to:

  • Use FLUID to create a complete user interface class, including constructor and any member functions necessary.
  • Use FLUID to set callbacks member functions of a custom widget classes.
  • Subclass a GlWindow to suit your purposes.

The CubeView Class

The CubeView class is a subclass of fltk::GlWindow. It has methods for setting the zoom, the x and y pan, and the rotation angle about the x and yaxes.

You can safely skip this section as long as you realize the CubeView is a sublass of fltk::GlWindow and will respond to calls from CubeViewUI, generated by FLUID.

The CubeView Class Definition

Here is the CubeView class definition, as given by its header file "test/CubeView.h":

//
// "$Id: CubeView.h 8500 2011-03-03 09:20:46Z bgbnbigben $"
//
// CubeView class definitions for the Fast Light Tool Kit (FLTK).
//
// Copyright 1998-2006 by Bill Spitzak and others.
//
// This library is free software; you can redistribute it and/or
// modify it under the terms of the GNU Library General Public
// License as published by the Free Software Foundation; either
// version 2 of the License, or (at your option) any later version.
//
// This library is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty of
// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
// Library General Public License for more details.
//
// You should have received a copy of the GNU Library General Public
// License along with this library; if not, write to the Free Software
// Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307
// USA.
//
// Please report all bugs and problems on the following page:
//
//    http://www.fltk.org/str.php
//

#ifndef CUBEVIEW_H
#define CUBEVIEW_H 1

#include <config.h>

#include <fltk/run.h>

#if HAVE_GL
#  include <fltk/GlWindow.h>
#  include <fltk/gl.h>
#else
#  include <fltk/Widget.h>
#endif /* HAVE_GL */

#include <stdlib.h>

#if HAVE_GL
class CubeView : public fltk::GlWindow {
#else
class CubeView : public fltk::Widget {
#endif /* HAVE_GL */

public:
    CubeView(int x,int y,int w,int h,const char *l=0);

    /* Set the rotation about the vertical (y ) axis.
     *
     * This function is called by the horizontal roller in CubeViewUI and the
     * initialize button in CubeViewUI.
     */
    void v_angle(float angle) { vAng=angle; }

    // Return the rotation about the vertical (y) axis.
    float v_angle() { return vAng; }

    /* Set the rotation about the horizontal (x) axis.
     *
     * This function is called by the vertical roller in CubeViewUI
     */
    void h_angle(float angle) { hAng=angle; }

    // the rotation about the horizontal (x) axis.
    float h_angle() { return hAng; }

    /* Sets the x shift of the cube view camera.
     *
     * This function is called by the slider in CubeViewUI
     */
    void panx(float x) { xshift=x; }

    /* Sets the y shift of the cube view camera.
     *
     * This function is called by the slider in CubeViewUI
     */
    void pany(float y) { yshift=y; }

    /* Sets the scale factor of the cube view camera.
     *
     * This function is called by the slider in CubeViewUI
     */
    void setsize(float v) { size=v; }

#if HAVE_GL
    /*The widget class draw() override.
     *
     *The draw() function initialize Gl for another round o f drawing
     * then calls specialized functions for drawing each of the
     * entities displayed in the cube view.
     *
     */
    void draw();
#endif /* HAVE_GL */

private:
    /* Draw the cube boundaries
     *
     * Draw the faces of the cube using the boxv[] vertices, using
     * GL_LINE_LOOP for the faces. The color is \#defined by CUBECOLOR.
     */
#if HAVE_GL
    void drawCube();
#else
    void drawCube() { }
#endif /* HAVE_GL */

    // this value determines the scaling factor used to draw the cube.
    double size;

    float vAng, hAng;
    float xshift, yshift;

    float boxv0[3]; float boxv1[3];
    float boxv2[3]; float boxv3[3];
    float boxv4[3]; float boxv5[3];
    float boxv6[3]; float boxv7[3];
};

#endif

//
// End of "$Id: CubeView.h 8500 2011-03-03 09:20:46Z bgbnbigben $".
//

The CubeView Class Implementation

Here is the CubeView implementation. It is very similar to the "cube" demo included with FLTK.

//
// "$Id: CubeView.cxx 8500 2011-03-03 09:20:46Z bgbnbigben $"
//
// CubeView class implementation for the Fast Light Tool Kit (FLTK).
//
// Copyright 1998-2006 by Bill Spitzak and others.
//
// This library is free software; you can redistribute it and/or
// modify it under the terms of the GNU Library General Public
// License as published by the Free Software Foundation; either
// version 2 of the License, or (at your option) any later version.
//
// This library is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty of
// MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
// Library General Public License for more details.
//
// You should have received a copy of the GNU Library General Public
// License along with this library; if not, write to the Free Software
// Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307
// USA.
//
// Please report all bugs and problems on the following page:
//
//    http://www.fltk.org/str.php
//

#include "CubeView.h"
#include <math.h>

#if HAVE_GL
CubeView::CubeView(int x,int y,int w,int h,const char *l)
            : GlWindow(x,y,w,h,l)
#else
CubeView::CubeView(int x,int y,int w,int h,const char *l)
            : Widget(x,y,w,h,l)
#endif /* HAVE_GL */
{
    vAng = 0.0;
    hAng=0.0;
    size=10.0;
    xshift=yshift=0;
    /* The cube definition. These are the vertices of a unit cube
     * centered on the origin.*/

    boxv0[0] = -0.5; boxv0[1] = -0.5; boxv0[2] = -0.5;
    boxv1[0] =  0.5; boxv1[1] = -0.5; boxv1[2] = -0.5;
    boxv2[0] =  0.5; boxv2[1] =  0.5; boxv2[2] = -0.5;
    boxv3[0] = -0.5; boxv3[1] =  0.5; boxv3[2] = -0.5;
    boxv4[0] = -0.5; boxv4[1] = -0.5; boxv4[2] =  0.5;
    boxv5[0] =  0.5; boxv5[1] = -0.5; boxv5[2] =  0.5;
    boxv6[0] =  0.5; boxv6[1] =  0.5; boxv6[2] =  0.5;
    boxv7[0] = -0.5; boxv7[1] =  0.5; boxv7[2] =  0.5;

#if !HAVE_GL
    label("OpenGL is required for this demo to operate.");
    align(fltk::ALIGN_WRAP | fltk::ALIGN_INSIDE);
    box(fltk::NO_BOX);
    labelcolor(fltk::WHITE);
#endif /* !HAVE_GL */
}

#if HAVE_GL
void CubeView::drawCube()
{
    /* Draw a colored cube */
    #define ALPHA 0.5

    glShadeModel(GL_FLAT);

    glBegin(GL_QUADS);
      glColor4f(0.0, 0.0, 1.0, ALPHA);
      glVertex3fv(boxv0);
      glVertex3fv(boxv1);
      glVertex3fv(boxv2);
      glVertex3fv(boxv3);

      glColor4f(1.0, 1.0, 0.0, ALPHA);
      glVertex3fv(boxv0);
      glVertex3fv(boxv4);
      glVertex3fv(boxv5);
      glVertex3fv(boxv1);

      glColor4f(0.0, 1.0, 1.0, ALPHA);
      glVertex3fv(boxv2);
      glVertex3fv(boxv6);
      glVertex3fv(boxv7);
      glVertex3fv(boxv3);

      glColor4f(1.0, 0.0, 0.0, ALPHA);
      glVertex3fv(boxv4);
      glVertex3fv(boxv5);
      glVertex3fv(boxv6);
      glVertex3fv(boxv7);

      glColor4f(1.0, 0.0, 1.0, ALPHA);
      glVertex3fv(boxv0);
      glVertex3fv(boxv3);
      glVertex3fv(boxv7);
      glVertex3fv(boxv4);

      glColor4f(0.0, 1.0, 0.0, ALPHA);
      glVertex3fv(boxv1);
      glVertex3fv(boxv5);
      glVertex3fv(boxv6);
      glVertex3fv(boxv2);
    glEnd();

    glColor3f(1.0, 1.0, 1.0);
    glBegin(GL_LINES);
      glVertex3fv(boxv0);
      glVertex3fv(boxv1);

      glVertex3fv(boxv1);
      glVertex3fv(boxv2);

      glVertex3fv(boxv2);
      glVertex3fv(boxv3);

      glVertex3fv(boxv3);
      glVertex3fv(boxv0);

      glVertex3fv(boxv4);
      glVertex3fv(boxv5);

      glVertex3fv(boxv5);
      glVertex3fv(boxv6);

      glVertex3fv(boxv6);
      glVertex3fv(boxv7);

      glVertex3fv(boxv7);
      glVertex3fv(boxv4);

      glVertex3fv(boxv0);
      glVertex3fv(boxv4);

      glVertex3fv(boxv1);
      glVertex3fv(boxv5);

      glVertex3fv(boxv2);
      glVertex3fv(boxv6);

      glVertex3fv(boxv3);
      glVertex3fv(boxv7);
    glEnd();
}

void CubeView::draw()
{
    if (!valid()) {
        glLoadIdentity();
        glViewport(0,0,w(),h());
        glOrtho(-10,10,-10,10,-20000,10000);
        glEnable(GL_BLEND);
        glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
    }

    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    glPushMatrix();

    glTranslatef(xshift, yshift, 0);
    glRotatef(hAng,0,1,0); glRotatef(vAng,1,0,0);
    glScalef(float(size),float(size),float(size));

    drawCube();

    glPopMatrix();
}
#endif /* HAVE_GL */

//
// End of "$Id: CubeView.cxx 8500 2011-03-03 09:20:46Z bgbnbigben $".
//

The CubeViewUI Class

We will completely construct a window to display and control the CubeView defined in the previous section using FLUID.

Defining the CubeViewUI Class

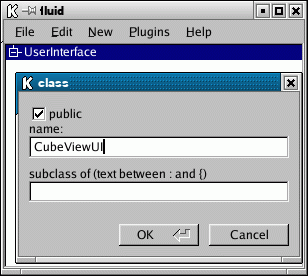

Once you have started FLUID, the first step in defining a class is to create a new class within FLUID using the New/Code/Class menu item. Name the class "CubeViewUI" and leave the subclass blank. We do not need any inheritance for this window. You should see the new class declaration in the FLUID browser window.


Adding the Class Constructor

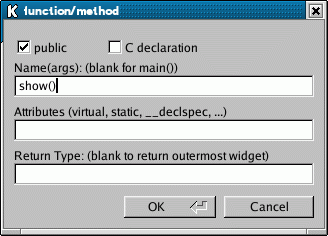

Click on the CubeViewUI class in the FLUID window and add a new method by selecting New/Code/Function/Method. The name of the function will also be CubeViewUI. FLUID will understands that this will be the constructor for the class and will generate the appropriate code. Make sure you declare the constructor public.

Then add a window to the CubeViewUI class. Highlight the name of the constructor in the FLUID browser window and click on New/Group/Window. In a similar manner add the following to the CubeViewUI constructor:

  • A horizontal roller named hrot
  • A vertical roller named vrot
  • A horizontal slider named xpan
  • A vertical slider named ypan
  • A horizontal value slider named zoom

None of these additions need be public. And they shouldn't be unless you plan to expose them as part of the interface for CubeViewUI.

When you are finished you should have something like this:


We will talk about the show() method that is highlighted shortly.

Adding the CubeView Widget

What we have is nice, but does little to show our cube. We have already defined the CubeView class and we would like to show it within the CubeViewUI.

The CubeView class inherits the GlWindow class, which is created in the same way as a InvisibleBox widget. Use New/Other/Widget to add a square box to the main window. This will be no ordinary widget, however.

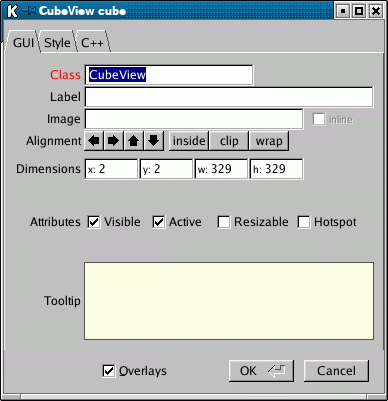

The Widget properties window will appear. The key to letting CubeViewUI display CubeView is to enter CubeView in the "Class:" text entry box. This tells FLUID to substitute "CubeView" in place of the normal class name it would output.

In the "Extra Code:" field enter #include "CubeView.h" This #include is important, as we have just included CubeView as a member of CubeViewUI, so any public CubeView methods are now available to CubeViewUI.


Defining the Callbacks

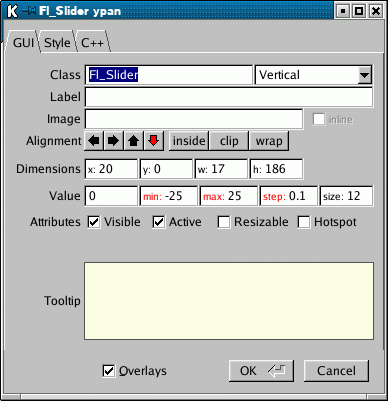

Each of the widgets we defined before adding CubeView can have callbacks that call CubeView methods. You can call an external function or put in a short amount of code in the "Callback" field of the widget panel. For example, the callback for the ypan slider is:

cube-&gt;pany(((fltk::Slider *)o)->value());
cube-&gt;redraw();

We call cube->redraw() after changing the value to update the CubeView window. CubeView could easily be modified to do this, but it is nice to keep this exposed in the case where you may want to do more than one view change only redrawing once saves a lot of time.

There is no reason no wait until after you have added CubeView to enter these callbacks. FLUID assumes you are smart enough not to refer to members or functions that don't exist.

Adding a Class Method

You can add class methods within FLUID that have nothing to do with the GUI. As an example add a show function so that CubeViewUI can actually appear on the screen.

Make sure the top level CubeViewUI is selected and select New/Code/Function/Method. Just use the name show(). We don't need a return value here, and since we will not be adding any widgets to this method FLUID will assign it a return type of void.


Once the new method has been added, highlight its name and select New/Code/Code. Enter the method's code in the code window.

Adding Constructor Initialization Code

If you need to add code to initialize class, for example setting initial values of the horizontal and vertical angles in the CubeView, you can simply highlight the Constructor and select New/Code/Code. Add any required code.

Generating the Code

Now that we have completely defined the CubeViewUI, we have to generate the code. There is one last trick to ensure this all works. Open the preferences dialog from Edit/Preferences.

At the bottom of the preferences dialog box is the key: "Include Header from Code". Select that option and set your desired file extensions and you are in business. You can include the CubeViewUI.h (or whatever extension you prefer) as you would any other C++ class.

FLUID Reference

The Widget Browser

The main window shows a menu bar and a scrolling browser of all the defined widgets. The name of the .fl file being edited is shown in the window title.

The widgets are stored in a hierarchy. You can open and close a level by clicking the "triangle" at the left of a widget. The leftmost widgets are the parents, and all the widgets listed below them are their children. Parents don't have to have any children.

The top level of the hierarchy is composed of functions and classes. Each of these will produce a single C++ public function or class in the output .cxx file. Calling the function or instantiating the class will create all of the child widgets.

The second level of the hierarchy contains the windows. Each of these produces an instance of class fltk::Window.

Below that are either widgets (subclasses of Widget) or groups of widgets (including other groups). Plain groups are for layout, navigation, and resize purposes. Tab groups provide the well-known file-card tab interface.

Widgets are shown in the browser by either their name (such as "main_panel" in the example), or by their type and label (such as "Button "the green"").

You select widgets by clicking on their names, which highlights them (you can also select widgets from any displayed window). You can select many widgets by dragging the mouse across them, or by using Shift+Click to toggle them on and off. To select no widgets, click in the blank area under the last widget. Note that hidden children may be selected even when there is no visual indication of this.

You open widgets by double-clicking on them, or (to open several widgets you have picked) by typing the F1 key. A control panel will appear so you can change the widget(s).

Menu Items

The menu bar at the top is duplicated as a pop-up menu on any displayed window. The shortcuts for all the menu items work in any window. The menu items are:

File/Open... (Alt+o)

Discards the current editing session and reads in a different .fl file. You are asked for confirmation if you have changed the current file.

FLUID can also read .fd files produced by the Forms and XForms "fdesign" programs. It is best to File/Merge them instead of opening them. FLUID does not understand everything in a .fd file, and will print a warning message on the controlling terminal for all data it does not understand. You will probably need to edit the resulting setup to fix these errors. Be careful not to save the file without changing the name, as FLUID will write over the .fd file with its own format, which fdesign cannot read!

File/Save (Alt+s)

Writes the current data to the .fl file. If the file is unnamed then FLUID will ask for a filename.

File/Save As...(Alt+Shift+S)

Asks for a new filename and saves the file.

File/Merge... (Alt+i)

Inserts the contents of another .fl file, without changing the name of the current .fl file. All the functions (even if they have the same names as the current ones) are added, and you will have to use cut/paste to put the widgets where you want.

File/Write Code (Alt+Shift+C)

"Compiles" the data into a .cxx and .h file. These are exactly the same as the files you get when you run FLUID with the -c switch.

The output file names are the same as the .fl file, with the leading directory and trailing ".fl" stripped, and ".h" or ".cxx" appended.

File/Quit (Alt+q)

Exits FLUID. You are asked for confirmation if you have changed the current data.

Edit/Undo (Alt+z)

This isn't implemented yet. You should do save often so you can recover from any mistakes you make.

Edit/Cut (Alt+x)

Deletes the selected widgets and all of their children. These are saved to a "clipboard" file and can be pasted back into any FLUID window.

Edit/Copy (Alt+c)

Copies the selected widgets and all of their children to the "clipboard" file.

Edit/Paste (Alt+c)

Pastes the widgets from the clipboard file.

If the widget is a window, it is added to whatever function is selected, or contained in the current selection.

If the widget is a normal widget, it is added to whatever window or group is selected. If none is, it is added to the window or group that is the parent of the current selection.

To avoid confusion, it is best to select exactly one widget before doing a paste.

Cut/paste is the only way to change the parent of a widget.

Edit/Select All (Alt+a)

Selects all widgets in the same group as the current selection.

If they are all selected already then this selects all widgets in that group's parent. Repeatedly typing Alt+a will select larger and larger groups of widgets until everything is selected.

Edit/Open... (F1 or double click)

Displays the current widget in the attributes panel. If the widget is a window and it is not visible then the window is shown instead.

Edit/Sort

Sorts the selected widgets into left to right, top to bottom order. You need to do this to make navigation keys in FLTK work correctly. You may then fine-tune the sorting with "Earlier" and "Later". This does not affect the positions of windows or functions.

Edit/Earlier (F2)

Moves all of the selected widgets one earlier in order among the children of their parent (if possible). This will affect navigation order, and if the widgets overlap it will affect how they draw, as the later widget is drawn on top of the earlier one. You can also use this to reorder functions, classes, and windows within functions.

Edit/Later (F3)

Moves all of the selected widgets one later in order among the children of their parent (if possible).

Edit/Group (F7)

Creates a new fltk::Group and make all the currently selected widgets children of it.

Edit/Ungroup (F8)

Deletes the parent group if all the children of a group are selected.

Edit/Overlays on/off (Alt+Shift+O)

Toggles the display of the red overlays off, without changing the selection. This makes it easier to see box borders and how the layout looks. The overlays will be forced back on if you change the selection.

Edit/Preferences (Alt+p)

Displays the preferences panel. The alignment preferences control the grid that all widgets snap to when you move and resize them, and for the "snap" which is how far a widget has to be dragged from its original position to actually change.

The output filenames control the extensions or names of the files the are generated by FLUID. If you check the "Include .h from .cxx" button the code file will include the header file automatically.

New/Code/Function

Creates a new C function. You will be asked for a name for the function. This name should be a legal C++ function template, without the return type. You can pass arguments which can be referred to by code you type into the individual widgets.

If the function contains any unnamed windows, it will be declared as returning a fltk::Window pointer. The unnamed window will be returned from it (more than one unnamed window is useless). If the function contains only named windows, it will be declared as returning nothing (void).

It is possible to make the .cxx output be a self-contained program that can be compiled and executed. This is done by deleting the function name so main(argc,argv) is used. The function will call show() on all the windows it creates and then call fltk::run(). This can also be used to test resize behavior or other parts of the user interface.

You can change the function name by double-clicking on the function.

New/Window

Creates a new fltk::Window widget. The window is added to the currently selected function, or to the function containing the currently selected item. The window will appear, sized to 100x100. You can resize it to whatever size you require.

The widget panel will also appear and is described later in this chapter.

New/...

All other items on the New menu are subclasses of fltk::Widget. Creating them will add them to the currently selected group or window, or the group or window containing the currently selected widget. The initial dimensions and position are chosen by copying the current widget, if possible.

When you create the widget you will get the widget's control panel, which is described later in this chapter.

Help/About FLUID

Pops up a panel showing the version of FLUID.

The Widget Panel

When you double-click on a widget or a set of widgets you will get the "widget attribute panel".

When you change attributes using this panel, the changes are reflected immediately in the window. It is useful to hit the "no overlay" button (or type Alt+Shift+O) to hide the red overlay so you can see the widgets more accurately, especially when setting the box type.

If you have several widgets selected, they may have different values for the fields. In this case the value for one of the widgets is shown. But if you change this value, all of the selected widgets are changed to the new value.

Hitting "OK" makes the changes permanent. Selecting a different widget also makes the changes permanent. FLUID checks for simple syntax errors such as mismatched parenthesis in any code before saving any text.

"Revert" or "Cancel" put everything back to when you last brought up the panel or hit OK. However in the current version of FLUID, changes to "visible" attributes (such as the color, label, box) are not undone by revert or cancel. Changes to code like the callbacks are undone, however.


Widget Attributes

Name (text field)

Name of a variable to declare, and to store a pointer to this widget into. This variable will be of type "&lt;class&gt;*". If the name is blank then no variable is created.

You can name several widgets with "name[0]", "name[1]", "name[2]", etc. This will cause FLUID to declare an array of pointers. The array is big enough that the highest number found can be stored. All widgets that in the array must be the same type.

Type (upper-right pulldown menu)

Some classes have subtypes that modify their appearance or behavior. You pick the subtype off of this menu.

Box (pulldown menu)

The boxtype to draw as a background for the widget.

Many widgets will work, and draw faster, with a "frame" instead of a "box". A frame does not draw the colored interior, leaving whatever was already there visible. Be careful, as FLUID may draw this ok but the real program may leave unwanted stuff inside the widget.

If a window is filled with child widgets, you can speed up redrawing by changing the window's box type to "NO_BOX". FLUID will display a checkerboard for any areas that are not colored in by boxes. Note that this checkerboard is not drawn by the resulting program. Instead random garbage will be displayed.

Color

The color to draw the box with.

Color2

Some widgets will use this color for certain parts. FLUID does not always show the result of this: this is the color buttons draw in when pushed down, and the color of input fields when they have the focus.

Label

String to print next to or inside the button.

You can put newlines into the string to make multiple lines. The easiest way is by typing Ctrl+j.

Label style (pull down menu)

How to draw the label. Normal, shadowed, engraved, and embossed change the appearance of the text. "symbol" requires the label to start with an '@' sign to draw a named symbol.

From this menu you can also pick Image. This lets you use the contents of a GIF, XPM, or XBM image file to label the widget.

Label Alignment (Buttons)

Where to draw the label. The arrows put it on that side of the widget, you can combine the to put it in the corner. The "box" button puts the label inside the widget, rather than outside.

Label Font

Font to draw the label in. Ignored by symbols, bitmaps, and pixmaps. Your program can change the actual font used by these "slots" in case you want some font other than the 16 provided.

Label Size

Pixel size (height) for the font to draw the label in. Ignored by symbols, bitmaps, and pixmaps. To see the result without dismissing the panel, type the new number and then Tab.

Label Color

Color to draw the label. Ignored by pixmaps (bitmaps, however, do use this color as the foreground color).

Text Font, Size, and Color

Some widgets display text, such as input fields, pull-down menus, and browsers.

Visible

If you turn this off then the widget is hidden initially. Don't change this for windows or for the immediate children of a Tabs group.

Active

If you turn this off then the widget is deactivated initially.

Resizable

If a window is resizable or has an immediate child that is resizable, then the user will be able to resize it. In addition all the size changes of a window or group will go "into" the resizable child. If you have a large data display surrounded by buttons, you probably want that data area to be resizable.

Only one child can be resizable. Turning this on turns it off for the other children.

You can get more complex behavior by making invisible boxes the resizable widget, or by using hierarchies of groups. Unfortunately the only way to test it is to compile the program. Resizing the FLUID window is not the same as what will happen in the user program.

Hotspot

Each window may have exactly one hotspot (turning this on will turn off any others). This will cause it to be positioned with that widget centered on the mouse. This position is determined when the FLUID function is called, so you should call it immediately before showing the window. If you want the window to hide and then reappear at a new position, you should have your program set the hotspot itself just before Window::show().

Subclass

This is how you use your own subclasses of fltk::Widget. Whatever identifier you type in here will be the class that is instantiated.

In addition, no #include header file is put in the .h file. You must provide a #include line as the first line of the "Extra Code" which declares your subclass.

The class must be similar to the class you are spoofing. It does not have to be a subclass. It is sometimes useful to change this to another FLTK class, such as Window, to get FLUID's simulation closer to the real one. You can also change the color or boxtype to simulate your widget, even if the widget's implementation ignores these colors or settings.

Extra Code

These four fields let you type in literal lines of code to dump into the .h or .cxx files.

If the text starts with a # or the word extern then FLUID thinks this is an "include" line, and it is written to the .h file. If the same include line occurs several times then only one copy is written.

All other lines are "code" lines. The current widget is pointed to by the local variable o. The window being constructed is pointed to by the local variable w. You can also access any arguments passed to the function here, and any named widgets that are before this one.

FLUID will check for matching parenthesis, braces, and quotes, but does not do much other error checking. Be careful here, as it may be hard to figure out what widget is producing an error in the compiler. If you need more than four lines you probably should call a function in your own .cxx code.

Callback

This can either be the name of a function, or a small snippet of code. If you enter anything but letters, numbers, and the underscore then FLUID treats it as code.

A name names a function in your own code. It must be declared as void name(<class>*,void*).

A code snippet is inserted into a static function in the .cxx output file. The function prototype is void name(class *o, void *v) so that you can refer to the widget as o and the user_data() as v. FLUID will check for matching parenthesis, braces, and quotes, but does not do much other error checking. Be careful here, as it may be hard to figure out what widget is producing an error in the compiler.

If the callback is blank then no callback is set.

user_data

This is a value for the user_data() of the widget. If blank the default value of zero is used. This can be any piece of C code that can be cast to a void pointer.

User Data Type

The void * in the callback function prototypes is replaced with this. You may want to use long for old XForms code. Be warned that anything other than void * is not guaranteed to work! However on most architectures other pointer types are ok, and long is usually ok, too.

When

When to do the callback. This can be "never", "changed", "release", "enter key", or "no change". The value of "enter key" is only useful for text input fields. The "no change" button means the callback is done on the matching event even if the data is not changed.

There are other rare but useful values for the when() field that are not in the menu. You should use the extra code fields to put these values in.

Border

On Window only. This button turns the window manager border on or off. On most window managers you will have to close the window and reopen it to see the effect.

xclass

On Window only. The string typed into here is passed to the X window manager as the class. This can change the icon or window decorations. On most (all?) window managers you will have to close the window and reopen it to see the effect.

Selecting and Moving Widgets

Double-clicking a window name in the browser will display it, if not displayed yet. From this display you can select widgets, sets of widgets, and move or resize them. To close a window either double-click it or type Esc.

To select a widget, click it. To select several widgets drag a rectangle around them. Holding down shift will toggle the selection of the widgets instead.

You cannot pick hidden widgets. You also cannot choose some widgets if they are completely overlapped by later widgets. Use the browser to select these widgets.

The selected widgets are shown with a red "overlay" line around them. You can move the widgets by dragging this box. Or you can resize them by dragging the outer edges and corners. Hold down the Alt key while dragging the mouse to defeat the snap-to-grid effect for fine positioning.

If there is a tab box displayed you can change which child is visible by clicking on the file tabs. The child you pick is selected.

The arrow, tab, and shift+tab keys "navigate" the selection. Left, right, tab, or shift+tab move to the next or previous widgets in the hierarchy. Hit the right arrow enough and you will select every widget in the window. Up/down widgets move to the previous/next widgets that overlap horizontally. If the navigation does not seem to work you probably need to "Sort" the widgets. This is important if you have input fields, as FLTK uses the same rules when using arrow keys to move between input fields.

To "open" a widget, double click it. To open several widgets select them and then type F1 or pick "Edit/Open" off the pop-up menu.

Type Alt+o to temporarily toggle the overlay off without changing the selection, so you can see the widget borders.

You can resize the window by using the window manager border controls. FLTK will attempt to round the window size to the nearest multiple of the grid size and makes it big enough to contain all the widgets (it does this using illegal X methods, so it is possible it will barf with some window managers!). Notice that the actual window in your program may not be resizable, and if it is, the effect on child widgets may be different.

Image Labels

Selecting "Image..." off the label style pull-down menu will bring up a file chooser from which you pick the image file. If an image has already been chosen, you can change the image used by picking "Image..." again. The name of the image will appear in the "label" field, but you can't edit it.

The contents of the image file are written to the .cxx file, so if you wish to distribute the C code, you only need to copy the .cxx file, not the images. If many widgets share the same image then only one copy is written.

However the file name is stored in the .fl file, so to read the .fl file you need the image files as well. Filenames are relative to the location the .fl file is (not necessarily the current directory). I recommend you either put the images in the same directory as the .fl file, or use absolute path names.

FLUID runs using the default visual of your X server. This may be 8 bits, which will give you dithered images. You may get better results in your actual program by adding the code visual(fltk:\:RGB_COLOR) to your code right before the first window is displayed.

All widgets with the same image on them share the same code and source X pixmap. Thus once you have put an image on a widget, it is nearly free to put the same image on many other widgets.

If you are using a painting program to edit an image: the only way to convince FLUID to read the image file again is to remove the image from all widgets that are using it (including ones in closed windows), which will cause it to free its internal copy, and then set the image again. You may find it easier to exit FLUID and run it again.

Don't rely on how FLTK crops images that are outside the widget, as this may change in future versions! The cropping of inside labels will probably be unchanged.

To more accurately place images, make a new "box" widget and put the image in that as the label. This is also how you can put both an image and text label on the same widget. If your widget is a button, and you want the image inside it, you must change the button's boxtype to fltk::UP_FRAME (or another frame), otherwise when it is pushed it will erase the image.

FLUID can read X bitmap files, XPM files, GIF, and BMP images. If compiled with the correct libraries (this is default on Linux) it can read PNG and JPEG images.

I have not found any good editors for small iconic pictures. For pixmaps I have used XPaint. This (and most other) painting programs are designed for large full color images and are difficult to use to edit an image of small size and few colors.
