Function and Method Panel

Functions and Methods

Fluid can generate C functions, C++ functions, and methods in classes. Functions can contain widgets to build windows and dialogs. Code nodes can be used to add more source code to a function.

Parents

To generate a function, the function node must be created at the top level or inside a declaration block. If added inside a class node, this node generates a method inside that class.

Children

Function nodes can contain code nodes and windows that in turn contain widgets. If the function node has no children, only a forward declaration will be created in the header, but no source code will be generated.

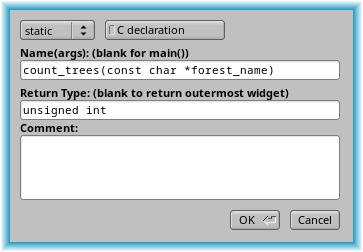

Function/Method Properties

Declaring a Function

A function node at the top level or inside a declaration block generates a C or C++ function.

The Name field contains the function name and all arguments. If the Name field is left empty, Fluid will generate a typical 'main()' function.

// .cxx
int main(int argc, char **argv) {
  // code generated by children
  w->show(argc, argv); // <-- code generated if function has a child widget
  Fl::run();
}

If a function node has a name but no children, a forward declaration is generated in the header, but the implementation in the source file is omitted. This is used to reference functions in other modules.

// .h

void make_window();

If the function contains one or more Code nodes, the implementation code will be generated. The default return type is void. Text in the Return Type field overrides the default type.

// .cxx
void make_window() {
  // code generated by children
}

If the function contains one or more windows, a pointer to the first window will be returned. The default return type will match the window class.

// .h

Fl_Window* make_window();

// .cxx
Fl_Window* make_window() {
  Fl_Window* w;
  // code generated by children:
  // w = new Fl_Window(...)
  return w;
}

Options for Functions

Choosing static in the pulldown menu will generate the function static in the source file. No forward declaration will be generated in the header file.

// .cxx

static Fl_Window* make_window() { ... }

Choosing global will generate a forward declaration of the function in the header file and no static attribute in the source file.

// .h
void make_window();
// .cxx
Fl_Window* make_window() { ... }

Additionally, if the C option is checked, the function will be declared as a plain C function in the header file.

// .h
extern "C" { void my_plain_c_function(); }
// .cxx
void my_plain_c_function() { ... }

The local option will generate a function in the source file with no static attribute. No forward declaration will be generated in the header file.

// .cxx

Fl_Window* make_window() { ... }

Declaring a Method

A function node inside a class node generates a C++ method. If a method node has no children, the declaration is generated in the header, but no implementation in the source file.

// .h
class UserInterface {
public:
  void make_window();
};

If the method contains one or more Code nodes, an implementation will also be generated.

// .cxx
void UserInterface::make_window() {
  printf("Hello, World!\n");
}

If the method contains at least one widget, a pointer to the topmost widget will be returned and the return type will be generated accordingly.

// .h
class UserInterface {
public:
  Fl_Double_Window* make_window();
};

// .cxx
Fl_Double_Window* UserInterface::make_window() {
  Fl_Double_Window* w;
  // code generated by children
  return w;
}

Options for Methods

Class access can be defined with the pulldown menu. It provides a choice of private, protected, and public.

Fluid recognizes the keyword static or virtual at the beginning of the return type* and will generate the declaration including the keyword, but will omit it in the implementation. The return type defaults still apply if there is no text after the keyword.

Further Options

Users can define a comment text in the comment field. The first line of the comment will be shown in the widget browser. The comment text will be generated in the source file before the function.

// .cxx
//
// My multilen comment will be here... .
// Fluid may actually use C style comment markers.
//
Fl_Window* make_window() {

FLUID recognizes default values in the argument list and generates them in the declaration, but omits them in the implementation.

A short function body can be appended in the Name field. With no child, this creates an inlined function in the header file.

C Source Code

Code

Code nodes hold arbitrary C++ code that is copied verbatim into the source code file. They are commonly used inside Function nodes.

Parents

Code nodes can be added inside Functions, Code Blocks, and Widget Classes.

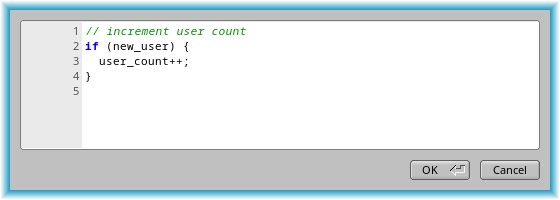

Code Properties

The Code Properties panel features a syntax-highlighting C++ code editor. Some basic bracket and braces match checking is done when closing the dialog.

When inside a Function or Code Block, the C++ code is inserted directly. Inside a Widget Class, the code will be added to the constructor of the widget class.

Code Block

Code Blocks are used when a single function generates different GUI elements conditionally.

Parents

Code Blocks are used inside functions and methods.

Children

Code Blocks can contain widgets, code, or more code blocks.

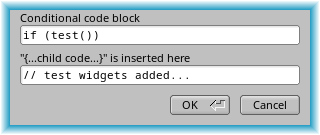

Code Block Properties

The two fields expect the code before and after the { ... } statements. The second field can be empty.

Two consecutive Code Blocks can be used to generate else/else if statements by leaving the second field of the first node empty.

Declaration

Parents

Declarations can be added at the top level or inside classes and widget classes.

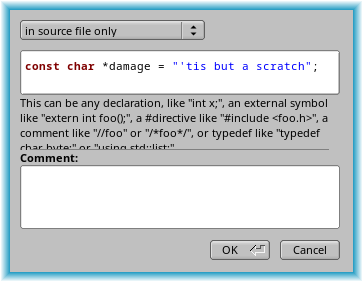

Declaration Properties

Declaration nodes are quite flexible and can be a simple variable declaration such as int i;. But include statements are also allowed, as are type declarations, and comments. FLUID does its best to understand user intention, but the generated code should be verified by the user.

Declarations nodes at the top level can selectively generate code in the header and /or in the source file. If a declaration is inside a class, the user can select if the class member is private, protected, or public instead.

Declaration Block

Declaration Blocks are a way to selectively compile child nodes via preprocessor commands, typically #ifdef TEST and #endif.

Parents

Declaration Blocks can be created at the top level or inside classes.

Children

Declaration Blocks can contain classes, functions, methods, declarations, and comments.

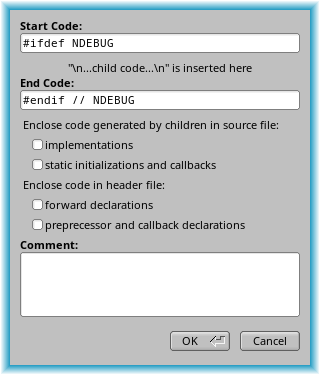

Declaration Block Properties

Users can select if the block is generated in the source file only, or in the header file as well. The two input fields are used to enter the line of code before and after the child nodes. Two consecutive Declaration Blocks can be used to generate #else/#elif style code by leaving the second field of the first node empty.

Note: Declaration Blocks are not smart, and child nodes may still generate unexpected code outside the scope of this block. This may change in future versions of FLUID.

Classes

Class

FLUID can generate code to implement C++ classes. Classes can be used to keep dialogs and groups of UI elements organized. See Widget Class nodes as an alternative to implement compound widgets.

Parents

Class nodes can be created at top level or inside a Class or Widget Class node.

Children

Class nodes can contain Functions, Declarations, Widgets, Data, and other classes.

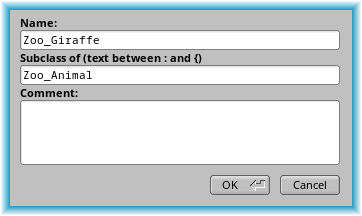

Class Properties

The Name: and Subclass of: fields should be set to standard C++ class names.

Function nodes inside classes are implemented as methods. Constructors and destructors are recognized and implemented as such. Inlined data is declared as a static class member.

Note that methods without a code or widget node are only declared in the header file, but no code is generated for them in the source file.

Widget Class

The Widget Class node creates a new widget type by deriving a class from another widget class. These are often compound widgets derived from Fl_Group. A less automated but more flexible way to implement compound widgets is the Class node.

Parents

Widget Class nodes can be created at top level or inside a Class or Widget Class node.

Children

Widget Class nodes can contain Functions, Declarations, Widgets, Data, and other classes.

Properties

Widget Class nodes use the Widget panel to edit their properties. The super class can be set in the C++ tab in the Class field. If that field is empty, FLUID derives from Fl_Group.

The Widget Class always creates a constructor with the common widget parameters:

MyWidget::MyWidget(int X, int Y, int W, int H, const char *L)

: Fl_Group(X, Y, W, H, L) { ... }

If the super class name contains the text Window, two more constructors and a common initializer method are created:

MyWidget::MyWidget(int W, int H, const char *L) :
  Fl_Window(0, 0, W, H, L) { ... }

MyWidget::MyWidget() :
  Fl_Window(0, 0, 480, 320, 0) { ... }

void MyWidget::_MyWidget() { ... }

Code and Widget nodes are then added to the constructor. Function nodes are added as methods to the class. Declarations are added as class members. Data nodes generate static class members.

It may be useful to design compound widgets with a variable size. The Widget Panel provides a choice menu in the GUI tab's Position row under Children*. The options resize and reposition generate code to fix up the coordinates of the widget after instantiation.

Note that methods without a code or widget node are only declared in the header file, but no code is generated for them in the source file.

Comments

Comment

This node adds a comment block to the generated source code.

Parents

Comment nodes can be added inside Functions, Code Blocks, and Widget Classes. If a Comment node is the top node in a tree, it will appear in the source files even before the // generated by FLUID ... line.

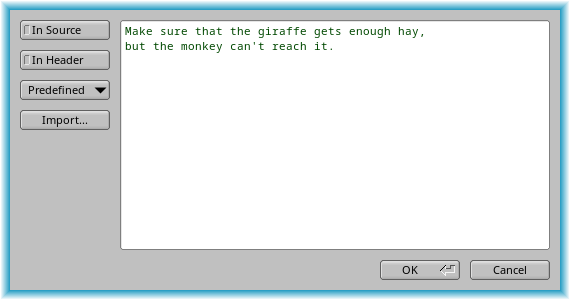

Comment Properties

Comment blocks are generated by adding // to the start of each line unless the first line of a comment starts with /*. In that case, FLUID assumes a correct block comment and will copy the text verbatim.

Comments can be generated in the header file, the source file, or both.

FLUID keeps a small database of predefined comments. Users can add reoccurring comment blocks, license information for example, to this database via the pulldown menu.

Comments can also be imported from an external file.

Inlined Data

The Data node makes it easy to inline data from an external file into the source code.

Parents

Data nodes can be added at the top level or inside Widget Classes, Classes, and Declaration Blocks.

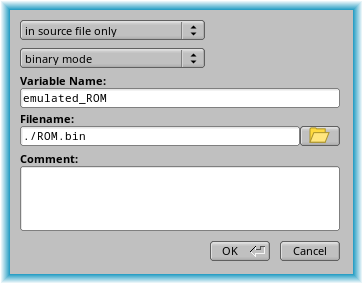

Data Properties

At top level, or inside a Declaration Block, Data can be declared in source file only, static in source file, or in source and extern in header.

If Data is inside a Class node, it is always declared static. The user can select private, protected, or public.

Data in binary mode will be stored in an unsigned char array. The data size can be queried with sizeof(). In Text mode, it will be stored as const char* and terminated with a NUL character.

In compressed mode, data will be compressed with zlib compress() and stored in an unsigned char array. A second variable, holding the original data size, is declared int by appending _size to the variable name.

// .cxx
int myInlineData_size = 12034;
unsigned char myInlineData[380] = { 65, 128, ... };

The Variable Name should be a regular C++ name. The Filename field expects the path and name of a file, relative to the location of the .fl file.
