Fl_Help_Dialog Class Reference

The Fl_Help_Dialog widget displays a standard help dialog window using the Fl_Help_View widget. More...

Public Member Functions

 Fl_Help_Dialog ()

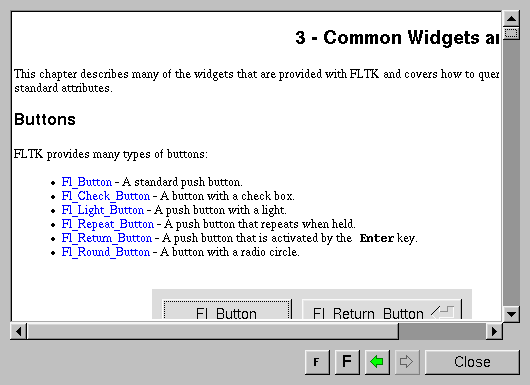

 The constructor creates the dialog pictured above. More...

int h ()
 Returns the position and size of the help dialog. More...

void hide ()
 Hides the Fl_Help_Dialog window. More...

void load (const char *f)
 Loads the specified HTML file into the Fl_Help_View widget. More...

void position (int xx, int yy)
 Set the screen position of the dialog. More...

void resize (int xx, int yy, int ww, int hh)
 Change the position and size of the dialog. More...

void show ()
 Shows the Fl_Help_Dialog window. More...

void show (int argc, char **argv)
 Shows the main Help Dialog Window Delegates call to encapsulated window_ void Fl_Window::show(int argc, char **argv) instance method.

void textsize (Fl_Fontsize s)
 Sets or gets the default text size for the help view. More...

Fl_Fontsize textsize ()
 Sets or gets the default text size for the help view. More...

void topline (const char *n)
 Sets the top line in the Fl_Help_View widget to the named or numbered line.

void topline (int n)
 Sets the top line in the Fl_Help_View widget to the named or numbered line.

void value (const char *f)
 The first form sets the current buffer to the string provided and reformats the text. More...

const char * value () const
 The first form sets the current buffer to the string provided and reformats the text. More...

int visible ()
 Returns 1 if the Fl_Help_Dialog window is visible. More...

int w ()
 Returns the position and size of the help dialog. More...

int x ()
 Returns the position and size of the help dialog. More...

int y ()
 Returns the position and size of the help dialog. More...

 ~Fl_Help_Dialog ()
 The destructor destroys the widget and frees all memory that has been allocated for the current file.


Detailed Description

The Fl_Help_Dialog widget displays a standard help dialog window using the Fl_Help_View widget.


Constructor & Destructor Documentation

Fl_Help_Dialog::Fl_Help_Dialog ( )

The constructor creates the dialog pictured above.

Member Function Documentation

int Fl_Help_Dialog::h ( )

Returns the position and size of the help dialog.

void Fl_Help_Dialog::hide ( )

Hides the Fl_Help_Dialog window.

void Fl_Help_Dialog::load ( const char *  f)

Loads the specified HTML file into the Fl_Help_View widget.

The filename can also contain a target name ("filename.html#target").

void Fl_Help_Dialog::position ( int  x,
int  y
)

Set the screen position of the dialog.

void Fl_Help_Dialog::resize ( int  xx,
int  yy,
int  ww,
int  hh
)

Change the position and size of the dialog.

void Fl_Help_Dialog::show ( )

Shows the Fl_Help_Dialog window.

Shows the main Help Dialog Window Delegates call to encapsulated window_ void Fl_Window::show() method.

void Fl_Help_Dialog::textsize ( Fl_Fontsize  s)

Sets or gets the default text size for the help view.

Sets the internal Fl_Help_View instance text size.

Delegates call to encapsulated view_ void Fl_Help_View::textsize(Fl_Fontsize s) instance method

uchar Fl_Help_Dialog::textsize ( )

Sets or gets the default text size for the help view.

void Fl_Help_Dialog::value ( const char *  v)

The first form sets the current buffer to the string provided and reformats the text.

It also clears the history of the "back" and "forward" buttons. The second form returns the current buffer contents.

const char * Fl_Help_Dialog::value ( ) const

The first form sets the current buffer to the string provided and reformats the text.

It also clears the history of the "back" and "forward" buttons. The second form returns the current buffer contents.

int Fl_Help_Dialog::visible ( )

Returns 1 if the Fl_Help_Dialog window is visible.

int Fl_Help_Dialog::w ( )

Returns the position and size of the help dialog.

int Fl_Help_Dialog::x ( )

Returns the position and size of the help dialog.

int Fl_Help_Dialog::y ( )

Returns the position and size of the help dialog.
